直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0601005U2B-BT0FAN 60X10MM 5VDC PWM/TACH Wakefield-Vette |
709 |
|
数据手册 |
- | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 10.50mm | 19.9 CFM (0.557m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 1 W | 4900 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0502024H2B-BT0FAN 50X20MM 24VDC PWM/TACH Wakefield-Vette |
276 |
|
数据手册 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 20.3 CFM (0.568m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 7.2 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

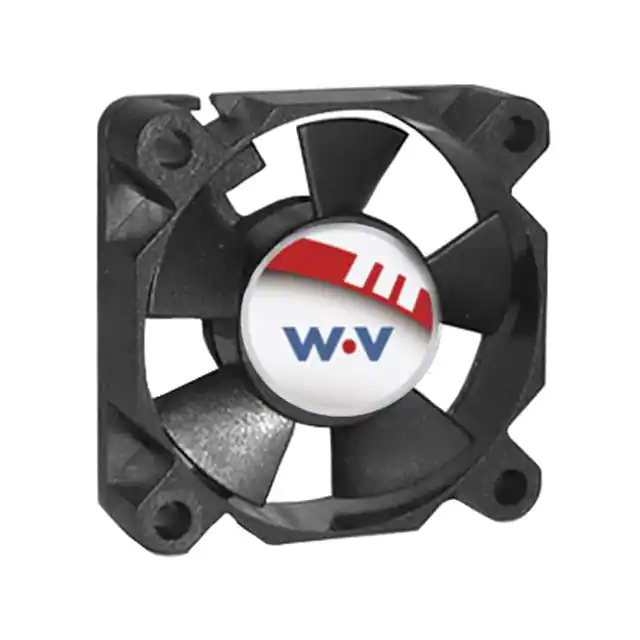

DC0351012W2B-2T0FAN AXIAL 35X10MM 12VDC WIRE Wakefield-Vette |
239 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 6.3 CFM (0.176m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 840 mW | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

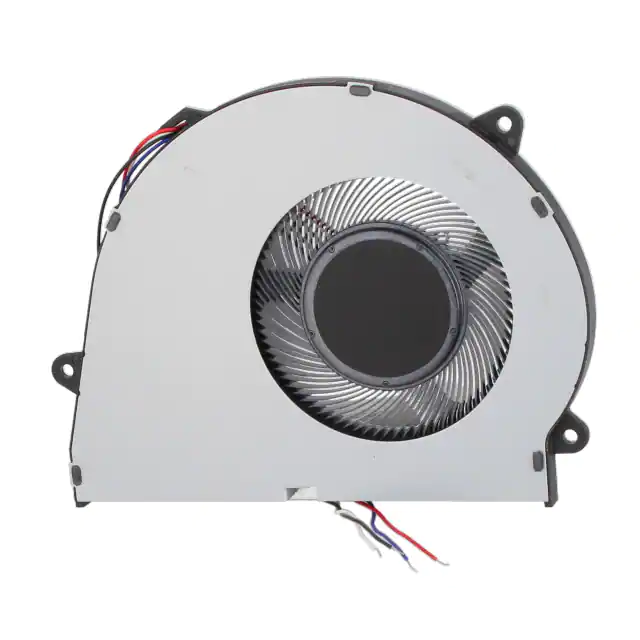

DB0870605H1A-BT0FAN BLOWER 74.5X5.52MM 5VDC WIRE Wakefield-Vette |
196 |
|
数据手册 |
Slim-Line | Bulk | Active | 5VDC | Rectangular/Rounded - 74.5mm L x 90mm H | 5.52mm | 5.7 CFM (0.160m³/min) | 0.624 in H2O (155.4 Pa) | Ball | Blower | PWM Control, Speed Sensor (Tach) | 41.9dB(A) | 2.5 W | 4600 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | - | 0.102 lb (46.27 g) |
|
DC0922512V2B-2T0FAN AXIAL 92X25MM 12VDC WIRE Wakefield-Vette |
278 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 81.0 CFM (2.27m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 4.92 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0351012W2B-BT0FAN AXIAL 35X10MM 12VDC WIRE Wakefield-Vette |
249 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 6.3 CFM (0.176m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.0dB(A) | 840 mW | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|
DC0301012U2B-BT0FAN AXIAL 30X10.5MM 12VDC WIRE Wakefield-Vette |
858 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | 5.7 CFM (0.160m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 31.0dB(A) | 1.08 W | 11000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.023 lb (10.43 g) |
|

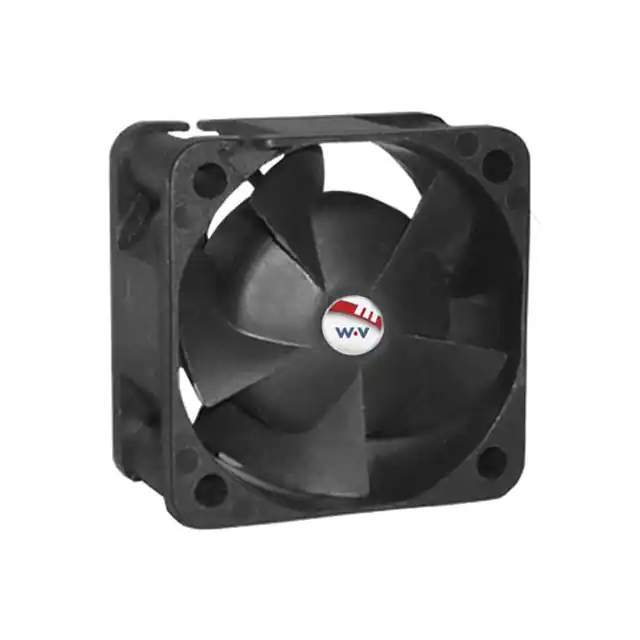

DC0382012U2B-2T0FAN AXIAL 38X20MM 12VDC WIRE Wakefield-Vette |
215 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 38mm L x 38mm H | 20.00mm | 9.7 CFM (0.272m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 3.6 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0402012V2B-2T0FAN AXIAL 40X20MM 12VDC WIRE Wakefield-Vette |
395 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 19.8 CFM (0.554m³/min) | 1.440 in H2O (358.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 4.92 W | 16000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0803212U2B-2T0FAN AXIAL 80X32MM 12VDC WIRE Wakefield-Vette |
103 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 86.9 CFM (2.43m³/min) | 0.890 in H2O (221.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 9.6 W | 6800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
