直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0402812V2B-2T0FAN AXIAL 40X28MM 12VDC WIRE Wakefield-Vette |
124 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 29.5 CFM (0.826m³/min) | 2.890 in H2O (719.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 62.0dB(A) | 13.2 W | 21000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0402024V2B-BT0FAN 40X20MM 24VDC PWM/TACH Wakefield-Vette |
416 |
|
数据手册 |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 19.8 CFM (0.554m³/min) | 1.440 in H2O (358.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 9.84 W | 16000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
DS0402812V2B-BT0FAN AXIAL 40X28MM 12VDC WIRE Wakefield-Vette |
267 |
|
数据手册 |
DS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 35.0 CFM (0.980m³/min) | 5.888 in H2O (1466.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 67.5dB(A) | 28.08 W | 30000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
DB0630405H1A-BT0FAN BLOWER 63X4MM 5VDC RECT CONN Wakefield-Vette |
460 |
|
数据手册 |
Slim-Line | Bulk | Active | 5VDC | Square/Rounded - 63mm L x 63mm H | 4.00mm | 2.2 CFM (0.061m³/min) | 0.505 in H2O (125.8 Pa) | Ball | Blower | PWM Control, Speed Sensor (Tach) | 35.4dB(A) | 1.75 W | 5700 RPM | 4 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | - | 0.058 lb (26.31 g) |
|
DB170303H1A-3T0FAN BLOWER 17X3.2MM 3VDC WIRE Wakefield-Vette |
353 |
|
数据手册 |
Slim-Line | Bulk | Active | 3VDC | Square - 17mm L x 17mm H | 3.20mm | 0.205 CFM (0.006m³/min) | 0.149 in H2O (37.1 Pa) | Ball | Blower | Speed Sensor (Tach) | 26.6dB(A) | 120 mW | 12000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | - | 0.004 lb (1.81 g) |
|
DC0602512W2B-BT0FAN AXIAL 60X25MM 12VDC WIRE Wakefield-Vette |
419 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 55.4 CFM (1.55m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 6.48 W | 9800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.126 lb (57.15 g) |
|
|
DC0602524W2B-BT0FAN 60X25MM 24VDC PWM/TACH Wakefield-Vette |
499 |
|
数据手册 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 55.2 CFM (1.55m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 12.96 W | 9800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
DB200303H1A-3T0FAN BLOWER 20X3.2MM 3VDC WIRE Wakefield-Vette |
759 |
|
数据手册 |
Slim-Line | Bulk | Active | 3VDC | Square - 20mm L x 20mm H | 3.20mm | 0.340 CFM (0.010m³/min) | 0.183 in H2O (45.6 Pa) | Ball | Blower | Speed Sensor (Tach) | 26.9dB(A) | 240 mW | 11000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | - | 0.004 lb (1.81 g) |
|

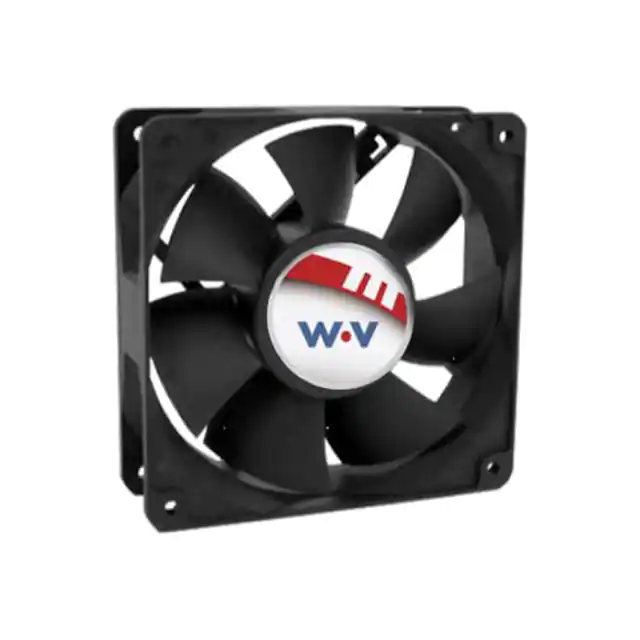

DC1203812W2B-2T0FAN AXIAL 120X38MM 12VDC WIRE Wakefield-Vette |
296 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 212.6 CFM (5.95m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 59.0dB(A) | 22.8 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DS1203812H2B-BT0FAN AXIAL 120X38MM 12VDC WIRE Wakefield-Vette |
354 |
|
数据手册 |
DS | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 197.5 CFM (5.53m³/min) | 1.126 in H2O (280.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 60.2dB(A) | 24 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
