直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0401012V2B-3T0FAN AXIAL 40X10MM 12VDC WIRE Wakefield-Vette |
365 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2.04 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|

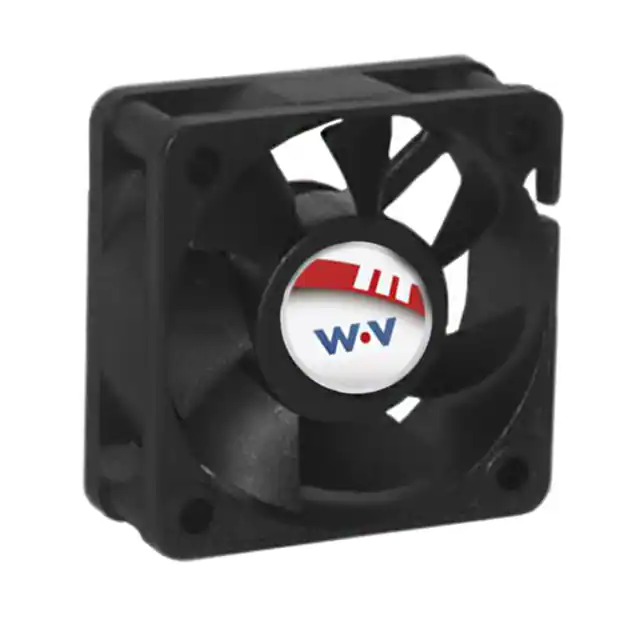

DC0502012H2B-2T0FAN AXIAL 50X20MM 12VDC WIRE Wakefield-Vette |
728 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 20.3 CFM (0.568m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 2.52 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

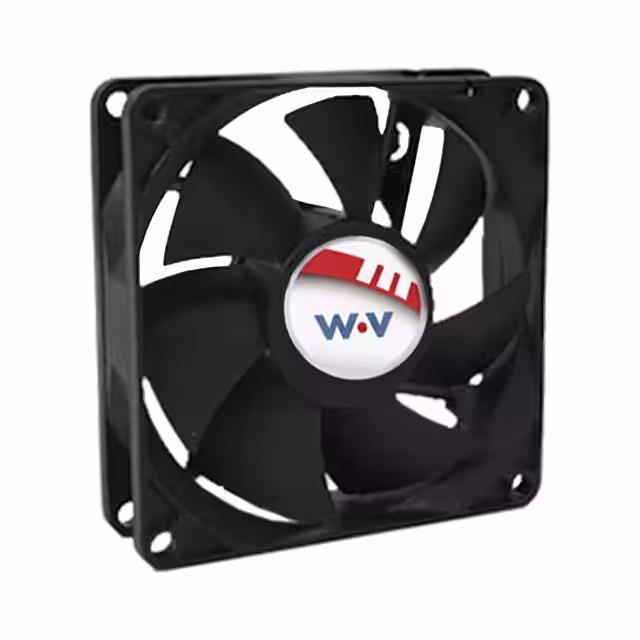

DC0802012U2B-2T0FAN AXIAL 80X20MM 12VDC WIRE Wakefield-Vette |
274 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 51.2 CFM (1.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 3.6 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0501024M2B-2T0FAN 50X10MM 24VDC Wakefield-Vette |
559 |
|
数据手册 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.00mm | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.92 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
DC0701512H2B-BT0FAN AXIAL 70X15MM 12VDC WIRE Wakefield-Vette |
885 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 33.5 CFM (0.938m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.0dB(A) | 3 W | 4300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.32 lb (145.15 g) |
|
|
DC0502012H2B-BT0FAN AXIAL 50X20MM 12VDC WIRE Wakefield-Vette |
422 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 20.3 CFM (0.568m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 2.52 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.089 lb (40.37 g) |
|
DC0601512U2B-BT0FAN AXIAL 60X15MM 12VDC WIRE Wakefield-Vette |
160 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 26.5 CFM (0.742m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.04 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.098 lb (44.45 g) |
|

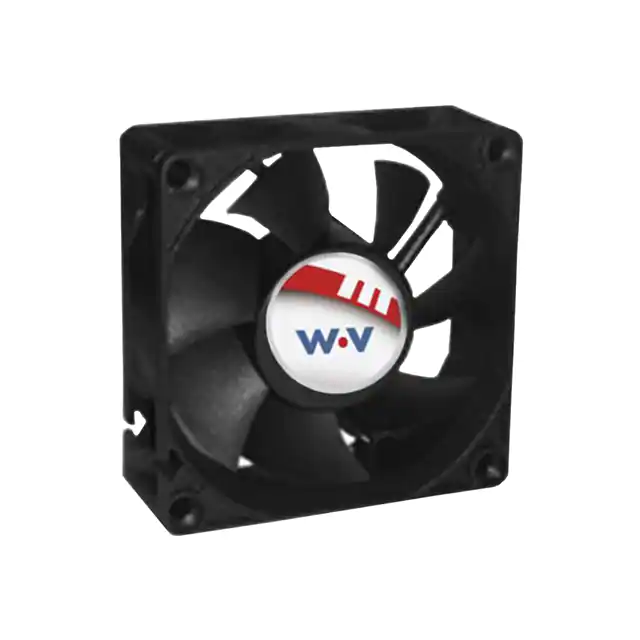

DC0702512U2B-BT0FAN AXIAL 70X25MM 12VDC WIRE Wakefield-Vette |
475 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 1.92 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.111 lb (50.35 g) |
|
DC0501012H2B-BT0FAN AXIAL 50X10MM 12VDC WIRE Wakefield-Vette |
655 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 1.2 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.071 lb (32.21 g) |
|
|
DC0401524H2B-BT0FAN 40X15MM 24VDC PWM/TACH Wakefield-Vette |
527 |
|
数据手册 |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 10.5 CFM (0.294m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 3.84 W | 8600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
