直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G1751H24BALB1-7FAN AXIAL 172X51MM 24VDC WIRE Pelonis Technologies |
2,040 |
|
数据手册 |
Intelligent Motion | Bulk | Active | 24VDC | Rectangular/Round - 172mm L x 150mm H | 51.00mm | 267.7 CFM (7.58m³/min) | 0.590 in H2O (146.9 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 54.1dB(A) | 17.76 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

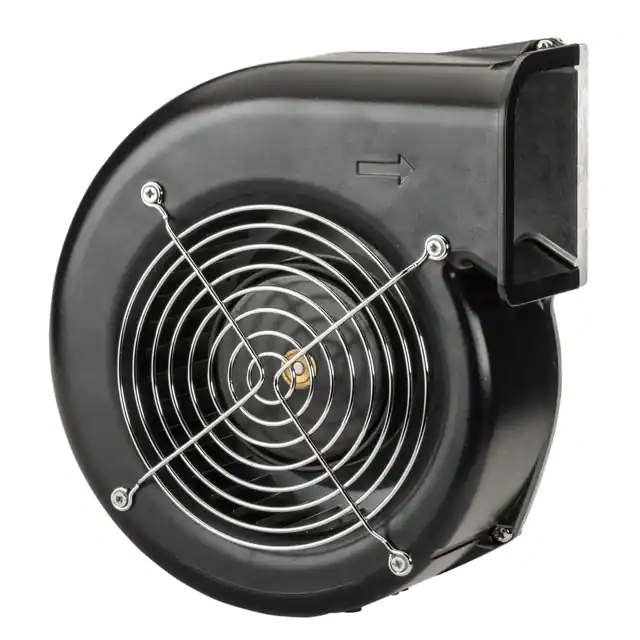

P1970M12BALA2A-38FAN BLOWER 193X72MM 12VDC WIRE Pelonis Technologies |
2,506 |
|
数据手册 |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 193mm L x 177mm H | 72.00mm | 106.4 CFM (3.01m³/min) | 1.400 in H2O (348.7 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 50.7dB(A) | 28.8 W | 1500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
K5331X12BALB2A-37FAN BLOWER 53X31MM 12VDC WIRE Pelonis Technologies |
1,413 |
|
数据手册 |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 53mm L x 53mm H | 31.00mm | 13.6 CFM (0.039m³/min) | 0.990 in H2O (246.6 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 47.7dB(A) | 7.8 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
G1751Y24BALB1W-7FAN AXIAL 172X51MM 24VDC WIRE Pelonis Technologies |
2,548 |
|
数据手册 |
Intelligent Motion | Bulk | Active | 24VDC | Rectangular/Round - 172mm L x 150mm H | 51.00mm | 323.0 CFM (9.15m³/min) | 0.850 in H2O (211.7 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, IP56, Locked Rotor Protection, Polarity Protection | 58.9dB(A) | 33.6 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
G1751L24BALB1-7FAN AXIAL 172X51MM 24VDC WIRE Pelonis Technologies |
3,499 |
|
数据手册 |
Intelligent Motion | Bulk | Active | 24VDC | Rectangular/Round - 172mm L x 150mm H | 51.00mm | 193.8 CFM (5.49m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 45.6dB(A) | 7.2 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
RBH7530B1FAN BLOWER 75X30MM 12VDC WIRE Pelonis Technologies |
4,855 |
|
数据手册 |
hiFLOW | Bulk | Active | 12VDC | Rectangular/Round - 75mm L x 75mm H | 30.00mm | 13.5 CFM (0.38m³/min) | 0.690 in H2O (171.9 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection | 43.0dB(A) | 5.4 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | - |
