直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

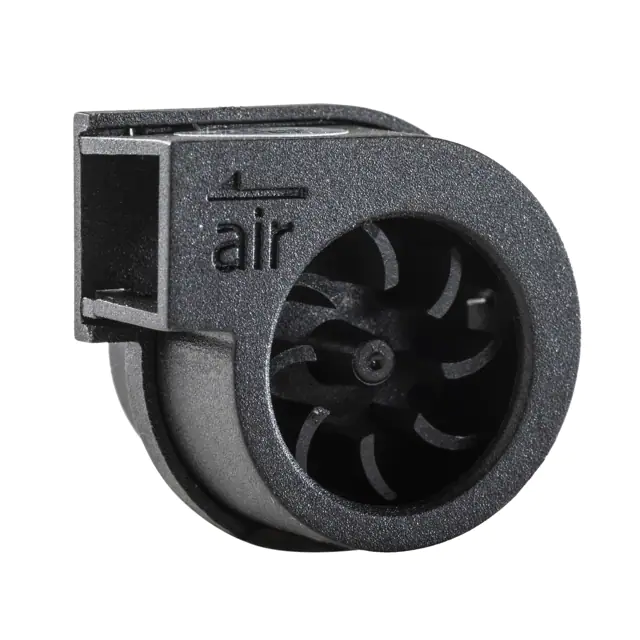

AGB2218FAN MICRO BLOWER 26X18MM 5VDC Pelonis Technologies |
1,336 |
|
数据手册 |
Air-G | Box | Active | 5VDC | Rectangular/Rounded - 26mm L x 24mm H | 18.00mm | 0.680 CFM (0.019m³/min) | 0.166 in H2O (41.3 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 29.4dB(A) | - | 10000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.017 lb (7.71 g) |
|
K5331Y24BALB2A-37FAN BLOWER 53X31MM 24VDC WIRE Pelonis Technologies |
3,220 |
|
数据手册 |
TITAN | Bulk | Active | 24VDC | Rectangular/Round - 53mm L x 53mm H | 31.00mm | 16.3 CFM (0.46m³/min) | 1.430 in H2O (356.2 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 52.5dB(A) | 12.96 W | 12000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
K1725X24BALA2A-13FAN AXIAL 172X25MM 24VDC WIRE Pelonis Technologies |
1,745 |
|
数据手册 |
Intelligent Motion | Bulk | Active | 24VDC | Rectangular/Round - 172mm L x 150mm H | 25.00mm | 272.2 CFM (7.71m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 64.0dB(A) | 34.8 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

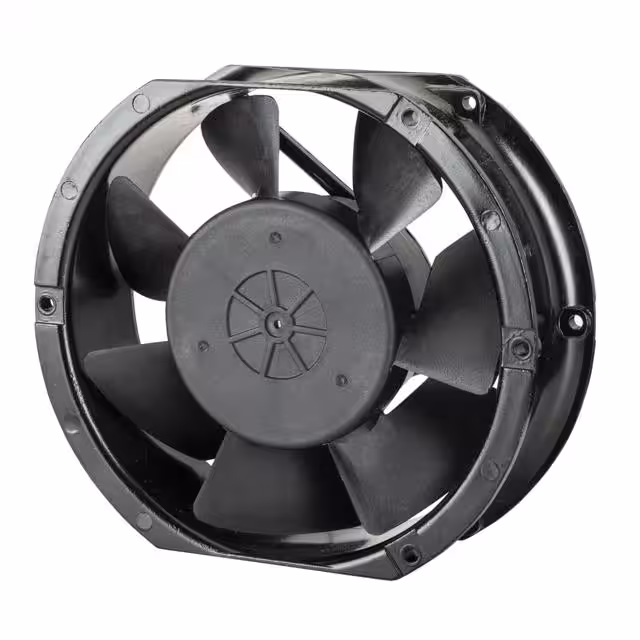

P1751H24BALB1W-7FAN AXIAL 172X51MM 24VDC WIRE Pelonis Technologies |
2,067 |
|
数据手册 |
Intelligent Motion | Bulk | Active | 24VDC | Rectangular/Round - 172mm L x 150mm H | 51.00mm | 267.7 CFM (7.58m³/min) | 0.590 in H2O (146.9 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 54.1dB(A) | 17.76 W | 2900 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
P1232Y12BALB2A-28FAN BLOWER 120X32MM 12VDC WIRE Pelonis Technologies |
4,101 |
|
数据手册 |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 120mm L x 120mm H | 32.00mm | 42.9 CFM (1.22m³/min) | 2.030 in H2O (505.6 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 61.6dB(A) | 20.4 W | 5200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
K5331H12BALB2A-37FAN BLOWER 53X31MM 12VDC WIRE Pelonis Technologies |
1,306 |
|
数据手册 |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 53mm L x 53mm H | 31.00mm | 10.9 CFM (0.31m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 41.9dB(A) | 4.08 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

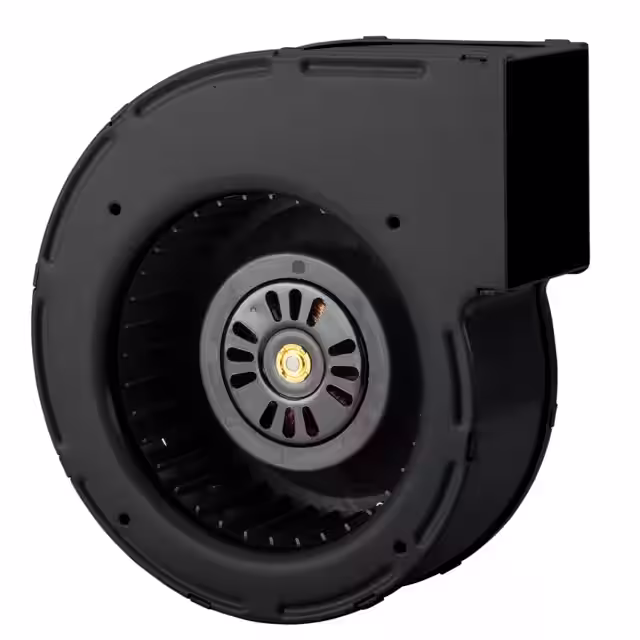

RBH1881B4FAN BLOWER 182X82MM 48VDC WIRE Pelonis Technologies |
1,225 |
|
数据手册 |
hiFLOW | Bulk | Active | 48VDC | Rectangular/Round - 182mm L x 171mm H | 82.00mm | 136.8 CFM (3.87m³/min) | 2.510 in H2O (625.2 Pa) | Ball | Blower | Auto Restart, Polarity Protection, Speed Sensor (Tach), PWM Speed Control | 63.0dB(A) | 52.8 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL | - |
|

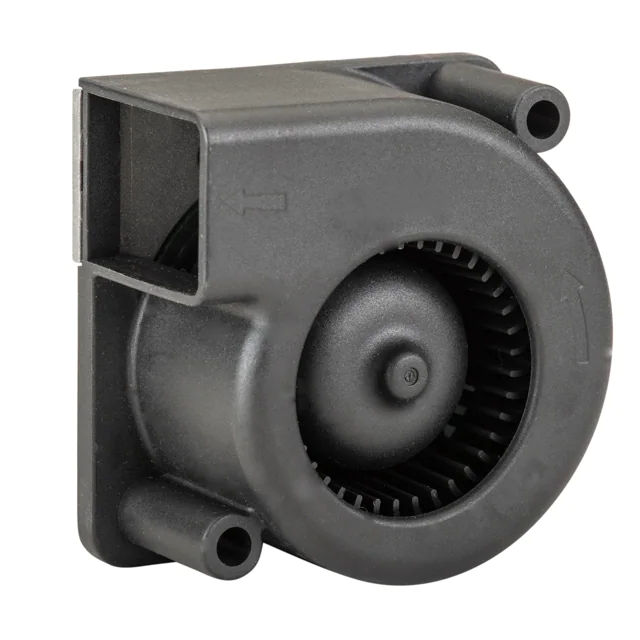

K5331Y12BALB2A-37FAN BLOWER 53X31MM 12VDC WIRE Pelonis Technologies |
1,209 |
|
数据手册 |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 53mm L x 53mm H | 31.00mm | 16.3 CFM (0.46m³/min) | 1.430 in H2O (356.2 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 52.5dB(A) | 12.6 W | 12000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
D9225X24BPLB1FAN AXIAL 92X25MM 24VDC WIRE Pelonis Technologies |
1,372 |
|
数据手册 |
Intelligent Motion | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 66.9 CFM (1.90m³/min) | 0.240 in H2O (59.7 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 41.2dB(A) | 3.8 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
P1232H12BALB2A-28FAN BLOWER 120X32MM 12VDC WIRE Pelonis Technologies |
2,231 |
|
数据手册 |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 120mm L x 120mm H | 32.00mm | 33.0 CFM (0.93m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 54.8dB(A) | 11.28 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
