直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

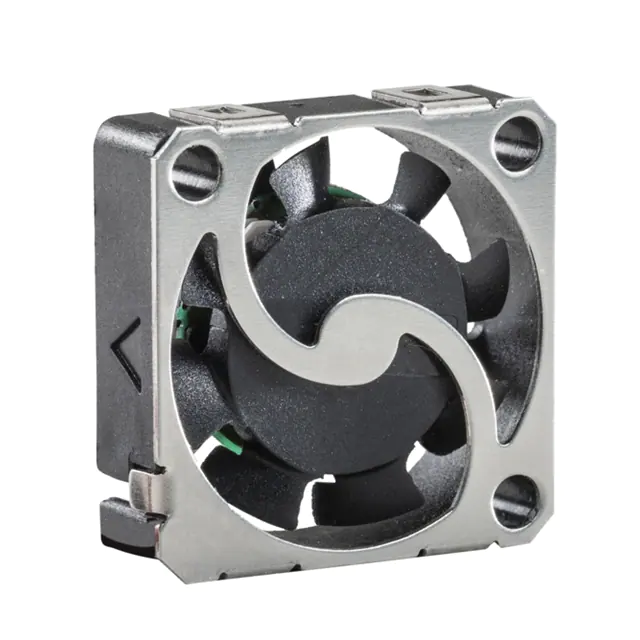

AGA154FAN MICRO FAN 15X4MM 5VDC WIRE Pelonis Technologies |
3,466 |
|
数据手册 |
Air-G | Box | Active | 5VDC | Square - 15mm L x 15mm H | 4.00mm | 0.400 CFM (0.011m³/min) | 0.110 in H2O (27.4 Pa) | Axial Groove | Micro Fan | Locked Rotor Protection, Auto Restart, Polarity Protection | 35.0dB(A) | - | 16000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.003 lb (1.36 g) |
|

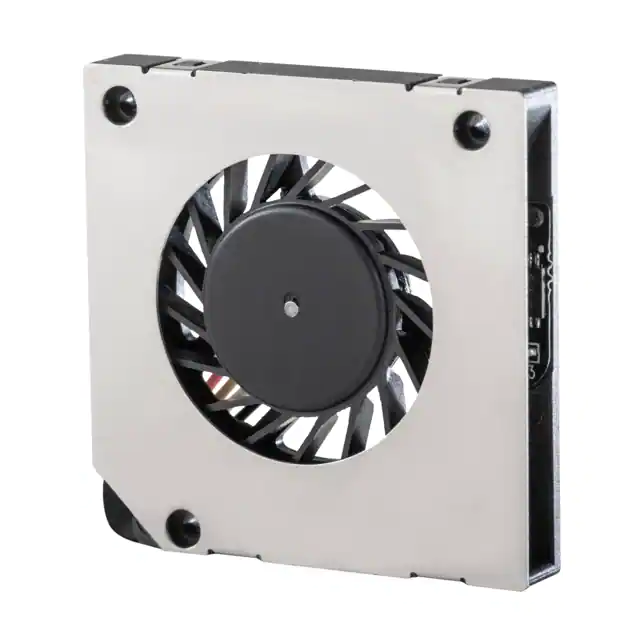

AGB304FAN MICR BLOWER 30X4MM 5VDC WIRE Pelonis Technologies |
2,710 |
|
数据手册 |
Air-G | Box | Active | 5VDC | Square - 30mm L x 30mm H | 4.00mm | 0.870 CFM (0.025m³/min) | 0.263 in H2O (65.4 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 36.0dB(A) | - | 8500 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.01 lb (4.54 g) |
|

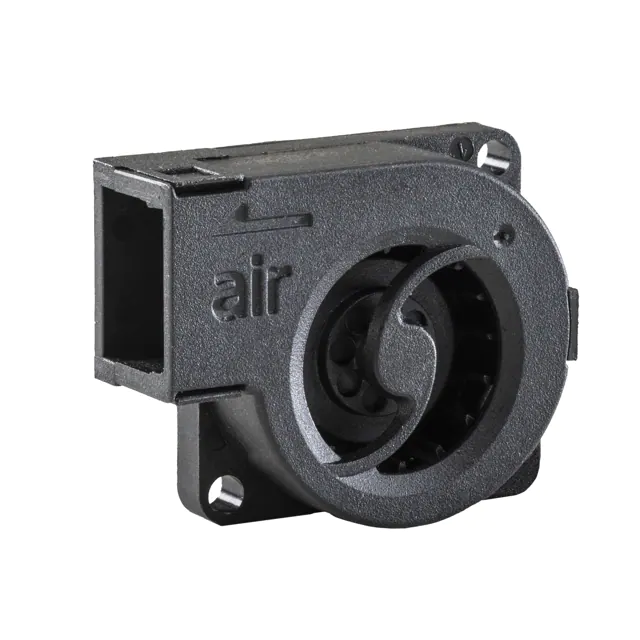

AGB208FAN MICR BLOWER 26X8MM 5VDC WIRE Pelonis Technologies |
4,887 |
|
数据手册 |
Air-G | Box | Active | 5VDC | Rectangular - 26mm L x 20mm H | 8.00mm | 0.570 CFM (0.016m³/min) | 0.186 in H2O (46.3 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 35.0dB(A) | - | 9000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.007 lb (3.18 g) |
|

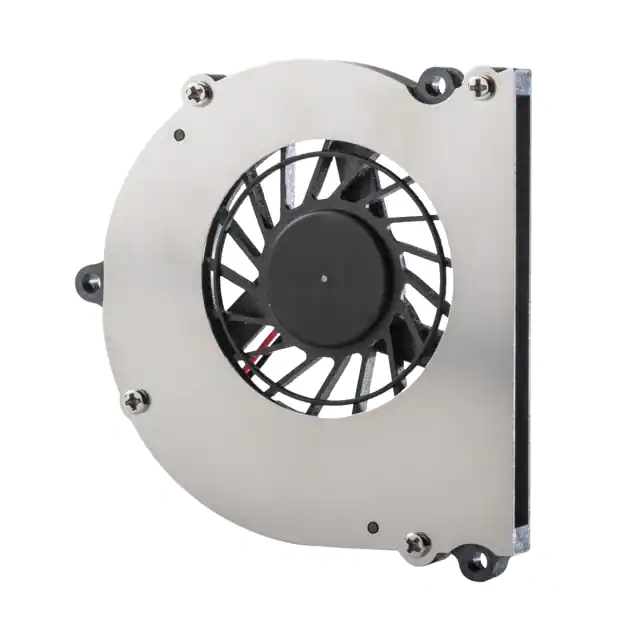

AGB454FAN MICR BLOWER 45X4MM 5VDC WIRE Pelonis Technologies |
3,047 |
|
数据手册 |
Air-G | Box | Active | 5VDC | Square - 45mm L x 45mm H | 4.00mm | 1.4 CFM (0.040m³/min) | 0.406 in H2O (101.0 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 30.0dB(A) | - | 6000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.017 lb (7.71 g) |
|
R1238L12BPLB2AFAN AXIAL 120X38MM 12VDC WIRE Pelonis Technologies |
2,000 |
|
数据手册 |
Intelligent Motion | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 104.4 CFM (2.96m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 39.8dB(A) | 3.6 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
G1232X48BPLB2FAN AXIAL 120X32MM 48VDC WIRE Pelonis Technologies |
4,611 |
|
数据手册 |
Intelligent Motion | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 32.00mm | 117.2 CFM (3.32m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 46.7dB(A) | 6.86 W | 3750 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
K5331H24BALB2A-37FAN BLOWER 53X31MM 24VDC WIRE Pelonis Technologies |
3,004 |
|
数据手册 |
TITAN | Bulk | Active | 24VDC | Rectangular/Round - 53mm L x 53mm H | 31.00mm | 10.9 CFM (0.31m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 41.9dB(A) | 4.32 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

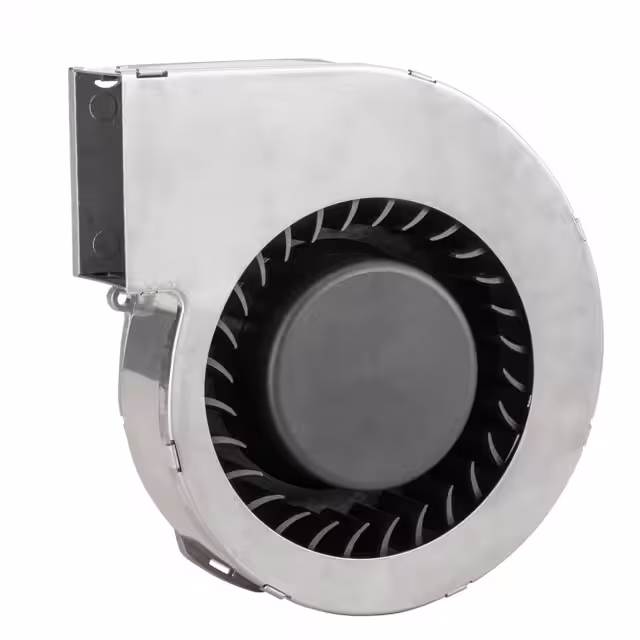

P1232Y48BALB2A-28FAN BLOWER 120X32MM 48VDC WIRE Pelonis Technologies |
4,326 |
|
数据手册 |
TITAN | Bulk | Active | 48VDC | Rectangular/Round - 120mm L x 120mm H | 32.00mm | 42.9 CFM (1.22m³/min) | 2.030 in H2O (505.6 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 61.6dB(A) | 19.2 W | 5200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
G1751Y48BALB2B-7FAN AXIAL 172X51MM 48VDC WIRE Pelonis Technologies |
2,442 |
|
数据手册 |
Intelligent Motion | Bulk | Active | 48VDC | Rectangular/Round - 172mm L x 150mm H | 51.00mm | 323.0 CFM (9.15m³/min) | 0.850 in H2O (211.7 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Rotation Detection | 58.9dB(A) | 29.9 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
G1751Y48BALB2B-5FAN AXIAL 172X51MM 48VDC WIRE Pelonis Technologies |
4,946 |
|
数据手册 |
Intelligent Motion | Bulk | Active | 48VDC | Rectangular/Round - 172mm L x 150mm H | 51.00mm | 323.0 CFM (9.15m³/min) | 0.850 in H2O (211.7 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Rotation Detection | 58.9dB(A) | 29.9 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
