直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D8025L48BPLB1FAN AXIAL 80X25MM 48VDC WIRE Pelonis Technologies |
104 |
|
数据手册 |
Intelligent Motion | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 28.8 CFM (0.82m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 23.8dB(A) | 1.44 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

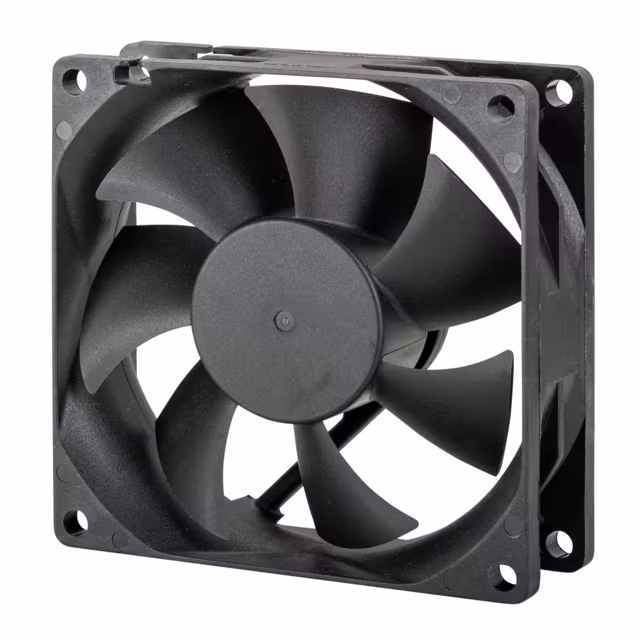

D8025M48SPLP1FAN AXIAL 80X25MM 48VDC WIRE Pelonis Technologies |
139 |
|
数据手册 |
Intelligent Motion | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 34.1 CFM (0.97m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 28.6dB(A) | 1.92 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
AGB208NFAN MICR BLOWER 20X8MM 5VDC WIRE Pelonis Technologies |
175 |
|
数据手册 |
Air-G | Box | Active | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 0.840 CFM (0.024m³/min) | 0.235 in H2O (58.5 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 18.0dB(A) | - | 14000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.007 lb (3.18 g) |
|

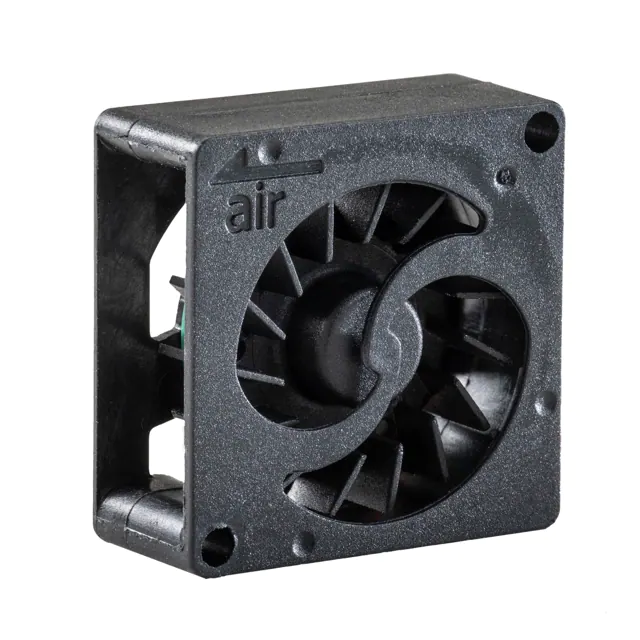

AGB208NLFAN MICR BLOWER 20X8MM 5VDC WIRE Pelonis Technologies |
169 |
|
数据手册 |
Air-G | Box | Active | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 0.660 CFM (0.019m³/min) | 0.146 in H2O (36.3 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 14.0dB(A) | - | 11000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.007 lb (3.18 g) |
|

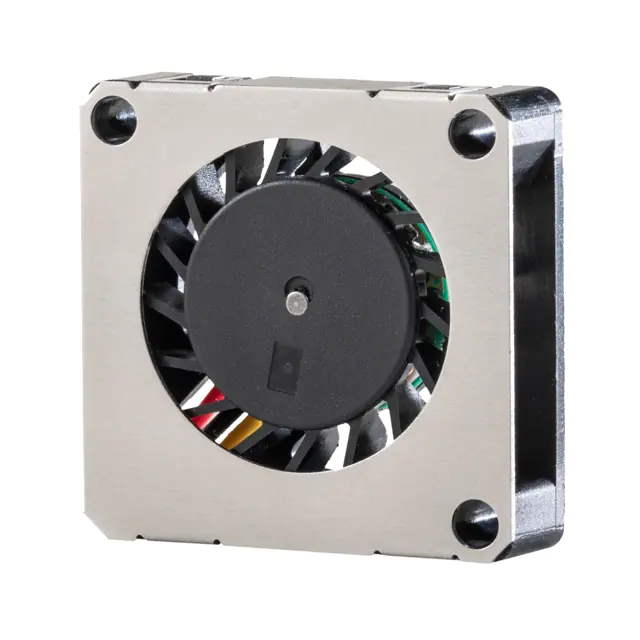

AGB184FAN MICR BLOWER 18X4MM 5VDC WIRE Pelonis Technologies |
125 |
|
数据手册 |
Air-G | Box | Active | 5VDC | Square - 18mm L x 18mm H | 4.00mm | 0.200 CFM (0.006m³/min) | 0.203 in H2O (50.5 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 35.0dB(A) | - | 11000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.004 lb (1.81 g) |
|

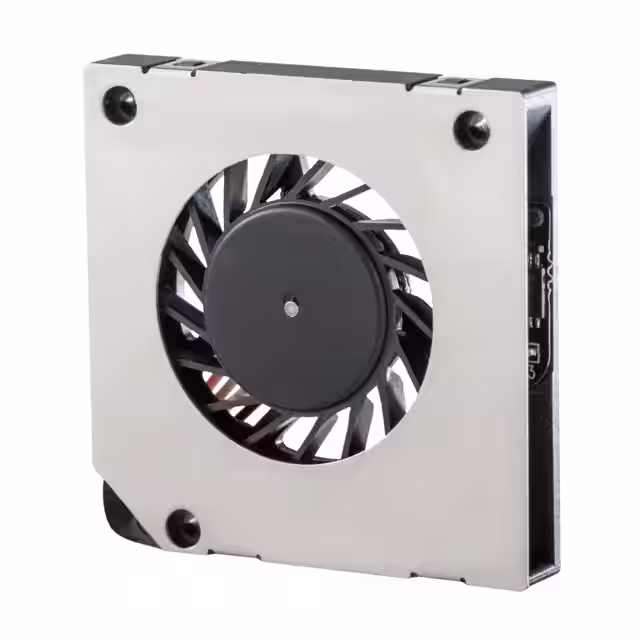

AGB304HFAN MICR BLOWER 30X4MM 5VDC WIRE Pelonis Technologies |
163 |
|
数据手册 |
Air-G | Box | Active | 5VDC | Square - 30mm L x 30mm H | 4.50mm | 1.1 CFM (0.033m³/min) | 0.484 in H2O (120.4 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 32.6dB(A) | - | 11000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.01 lb (4.54 g) |
|
AGA135FAN MICRO FAN 13X5MM 3VDC WIRE Pelonis Technologies |
116 |
|
数据手册 |
Air-G | Box | Active | 3VDC | Square - 13mm L x 13mm H | 5.00mm | 0.160 CFM (0.005m³/min) | 0.078 in H2O (19.4 Pa) | Axial Groove | Micro Fan | Locked Rotor Protection, Auto Restart, Polarity Protection | 15.7dB(A) | - | 16000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.002 lb (0.91 g) |
|

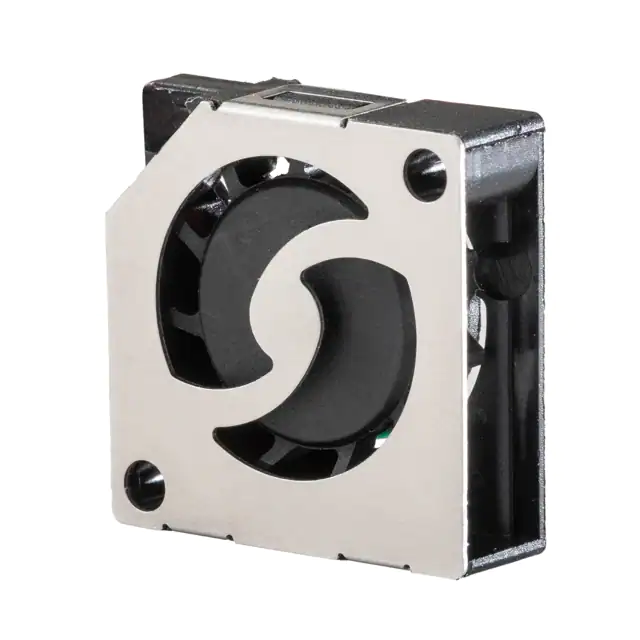

AGB154FAN MICR BLOWER 15X4MM 3VDC WIRE Pelonis Technologies |
125 |
|
数据手册 |
Air-G | Box | Active | 3VDC | Square - 15mm L x 15mm H | 4.00mm | 0.190 CFM (0.005m³/min) | 0.097 in H2O (24.1 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 18.6dB(A) | - | 14500 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.003 lb (1.36 g) |
|

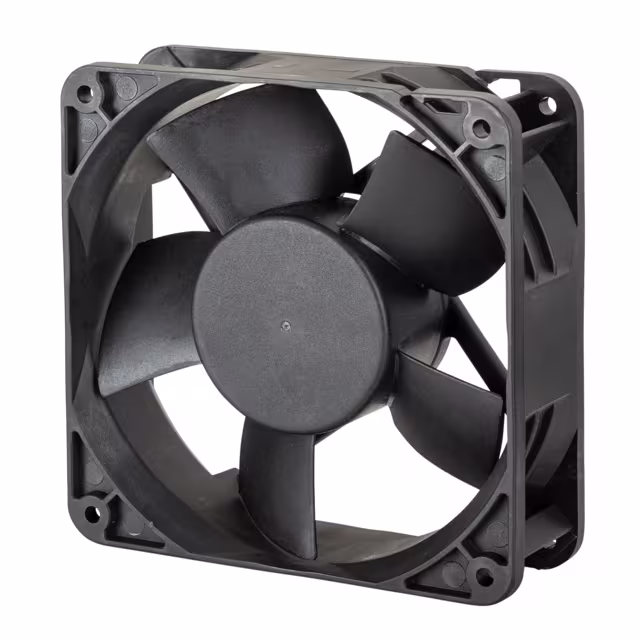

K1238Y48BPLB2A-5FAN AXIAL 120X38MM 48VDC WIRE Pelonis Technologies |
287 |
|
数据手册 |
Intelligent Motion | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 236.8 CFM (6.71m³/min) | 1.240 in H2O (308.9 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 65.0dB(A) | 29.28 W | 5800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
G1238L24BPLB5FAN AXIAL 120X38MM 24VDC WIRE Pelonis Technologies |
439 |
|
数据手册 |
Intelligent Motion | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 102.8 CFM (2.91m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Rotation Detection, RPWM | 39.6dB(A) | 3.12 W | 2600 RPM | 5 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
