直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E1225H12B-FSRFAN AXIAL 120X25MM 12VDC WIRE Mechatronics Fan Group |
2,463 |
|
数据手册 |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 82.0 CFM (2.30m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 40.0dB(A) | - | 2600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
MD4028X12B1+6-RSRFAN AXIAL 40X28MM 12VDC WIRE Mechatronics Fan Group |
2,869 |
|
数据手册 |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 18.7 CFM (0.524m³/min) | 0.709 in H2O (176.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 47.3dB(A) | - | 11500 RPM | 4 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|
F6025E12B-RHR-EM3FAN AXIAL 60X25MM 12VDC WIRE Mechatronics Fan Group |
4,130 |
|
数据手册 |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 37.0dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
G1225E24B1-FSRFAN AXIAL 120X25MM 24VDC WIRE Mechatronics Fan Group |
4,636 |
|
数据手册 |
G1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 99.0 CFM (2.77m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 2700 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|
MB8025X24B3-FSRFAN 80X25MM BALL 24VDC WIRE Mechatronics Fan Group |
2,312 |
|
数据手册 |
MB8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | - | Thermistor | - | - | - | 2 Wire Leads | - | - | cUL, UL | - |
|
|
G1225L24B2-FSR-NHFAN AXIAL 120X25MM 24VDC WIRE Mechatronics Fan Group |
4,413 |
|
数据手册 |
G1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 66.0 CFM (1.85m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 29.0dB(A) | - | 1800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|
MD9238E24B-FSRFAN AXIAL 92X38MM 24VDC WIRE Mechatronics Fan Group |
3,159 |
|
数据手册 |
MD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 110.6 CFM (3.10m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 55.0dB(A) | - | 4800 RPM | 2 Wire Leads | - | - | CE, TUV, UL | 0.397 lb (180.08 g) |
|

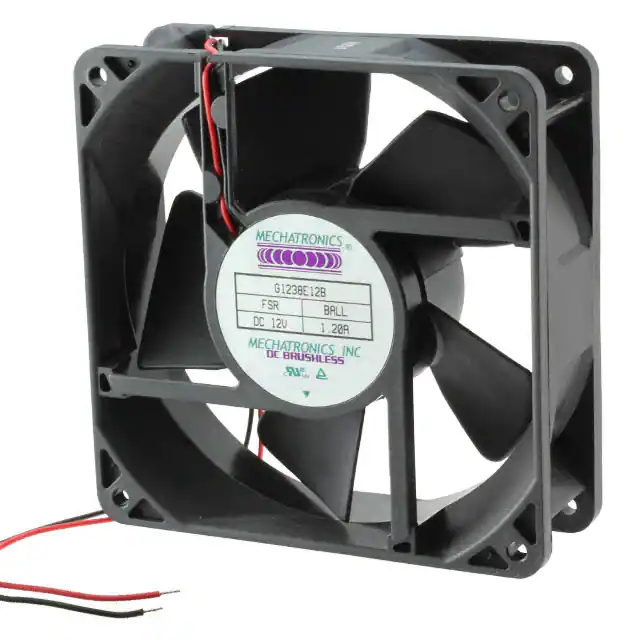

G1238E12B-FSRFAN AXIAL 119X38MM 12VDC WIRE Mechatronics Fan Group |
1,182 |
|
数据手册 |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 49.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|

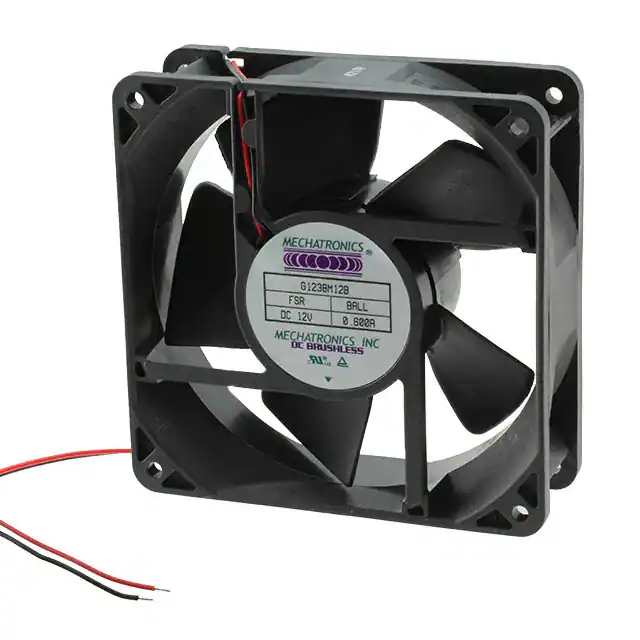

G1238M12B-FSRFAN AXIAL 119X38MM 12VDC WIRE Mechatronics Fan Group |
2,556 |
|
数据手册 |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 125.0 CFM (3.50m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 43.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
G1238H48B-FSRFAN AXIAL 119X38MM 48VDC WIRE Mechatronics Fan Group |
2,135 |
|
数据手册 |
G1238 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 141.2 CFM (3.95m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 46.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
