直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ME6038L24B-FSRFAN AXIAL 60X38MM 24VDC WIRE Mechatronics Fan Group |
4,338 |
|
数据手册 |
ME6038 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 35.5 CFM (0.994m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 48.5dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | cUL, UL | 0.23 lb (104.33 g) |
|

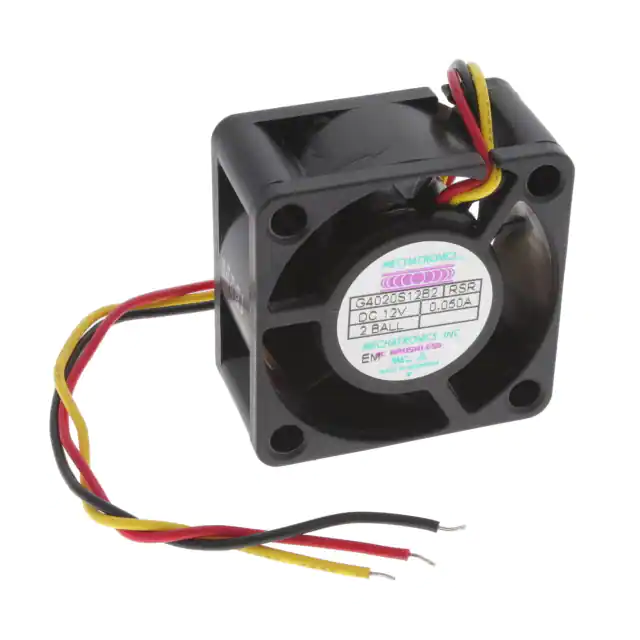

G4020S12B2-RSR-EMFAN AXIAL 40X20MM 12VDC WIRE Mechatronics Fan Group |
2,691 |
|
数据手册 |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 21.0dB(A) | - | 4000 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
MR1225H12B-FSRFAN AXIAL 120X25MM 12VDC WIRE Mechatronics Fan Group |
2,675 |
|
数据手册 |
MR1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 136.0 CFM (3.81m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Auto Restart | 53.8dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | - | - |
|
F6025H24B-RSR-L19FAN AXIAL 60X25MM 24VDC WIRE Mechatronics Fan Group |
3,518 |
|
数据手册 |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 20.0 CFM (0.560m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 3800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.156 lb (70.76 g) |
|

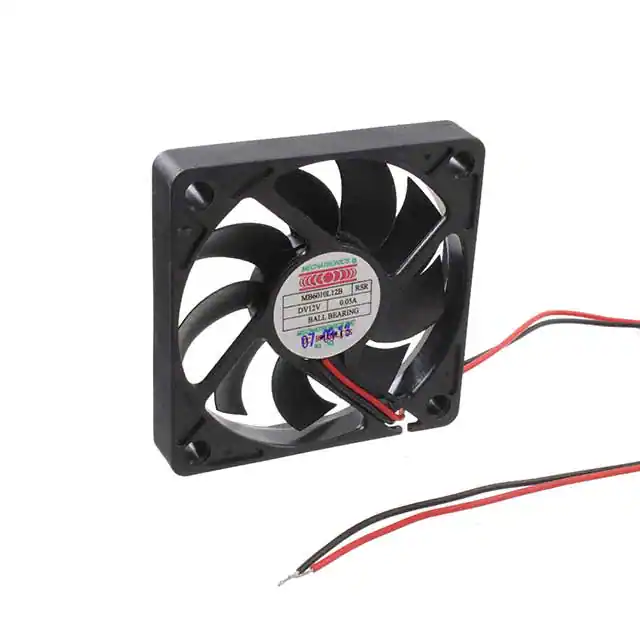

MB6010L12B-RSRFAN AXIAL 60X10.2MM 12VDC WIRE Mechatronics Fan Group |
1,620 |
|
数据手册 |
MB6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.20mm | 9.4 CFM (0.263m³/min) | 0.040 in H2O (10.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 19.0dB(A) | - | 2700 RPM | 2 Wire Leads | - | - | cUL, UL | 0.059 lb (26.76 g) |
|
F6025X12B-RSRFAN AXIAL 60X25MM 12VDC WIRE Mechatronics Fan Group |
1,444 |
|
数据手册 |
F6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 41.0dB(A) | - | 5200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
F8025X24B-RHRFAN AXIAL 80X25MM 24VDC WIRE Mechatronics Fan Group |
3,906 |
|
数据手册 |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB(A) | - | 4200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|

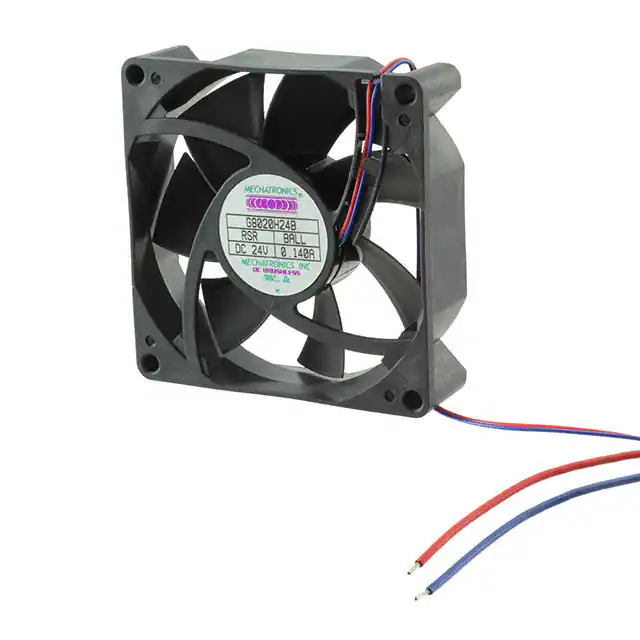

G8020H24B-RSRFAN AXIAL 80X20.8MM 24VDC WIRE Mechatronics Fan Group |
2,191 |
|
数据手册 |
G8020 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.80mm | 43.0 CFM (1.20m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 33.0dB(A) | - | 3500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
G4020H24B1-RSRFAN AXIAL 40X20MM 24VDC WIRE Mechatronics Fan Group |
3,682 |
|
数据手册 |
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
F6025E24B1-FHRFAN AXIAL 60X25MM 24VDC WIRE Mechatronics Fan Group |
4,087 |
|
数据手册 |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 37.0dB(A) | - | 5000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
