直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M5010E05C-RSRFAN AXIAL 50X10MM 5VDC WIRE Mechatronics Fan Group |
754 |
|
数据手册 |
M5010 | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 9.9 CFM (0.277m³/min) | 0.140 in H2O (34.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 28.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.046 lb (20.87 g) |
|
F6025E24B-RSRFAN AXIAL 60X25MM 24VDC WIRE Mechatronics Fan Group |
714 |
|
数据手册 |
F6025 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 36.0dB(A) | - | 4600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
G4010H24B-RSRFAN AXIAL 40X10.3MM 24VDC WIRE Mechatronics Fan Group |
932 |
|
数据手册 |
G4010 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.30mm | 9.0 CFM (0.252m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
G4020H05B-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE Mechatronics Fan Group |
2,372 |
|
数据手册 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
G4020H24B-RSRFAN AXIAL 40X20MM 24VDC WIRE Mechatronics Fan Group |
297 |
|
数据手册 |
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
B5020L12B-BSRFAN BLOWER 51X20MM 12VDC WIRE Mechatronics Fan Group |
1,663 |
|
数据手册 |
B5020 | Bulk | Active | 12VDC | Square/Rounded - 51mm L x 50mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | - | 0.049 lb (22.23 g) |
|
MR4020X12B-RSRFAN AXIAL 40X20MM 12VDC WIRE Mechatronics Fan Group |
1,257 |
|
数据手册 |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 17.3 CFM (0.484m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Auto Restart | 41.0dB(A) | - | 12000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|

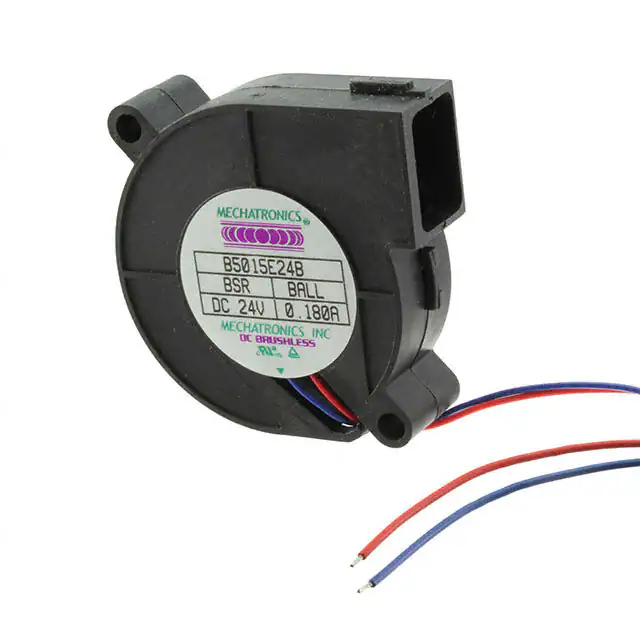

B5015E24B-BSRFAN BLOWER 51X15.7MM 24VDC WIRE Mechatronics Fan Group |
511 |
|
数据手册 |
B5015 | Bulk | Active | 24VDC | Square/Rounded - 51mm L x 51mm H | 15.70mm | 5.0 CFM (0.140m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 45.0dB(A) | - | 6500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|

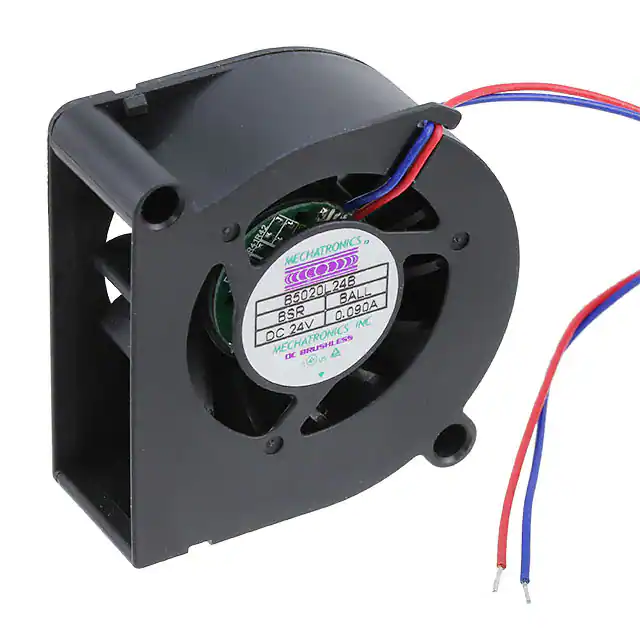

B5020L24B-BSRFAN BLOWER 51X20MM 24VDC WIRE Mechatronics Fan Group |
267 |
|
数据手册 |
B5020 | Bulk | Active | 24VDC | Square/Rounded - 51mm L x 50mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | - | 0.049 lb (22.23 g) |
|

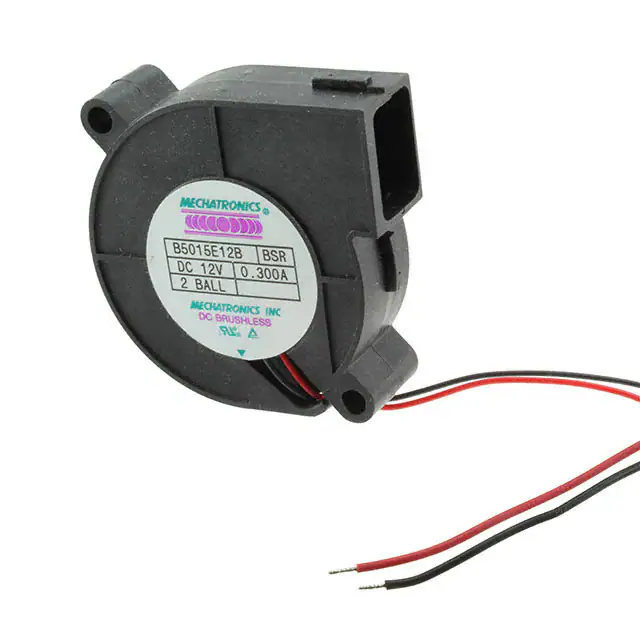

B5015E12B-BSRFAN BLOWER 51X15.7MM 12VDC WIRE Mechatronics Fan Group |
150 |
|
数据手册 |
B5015 | Bulk | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.70mm | 5.0 CFM (0.140m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 45.0dB(A) | - | 6500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
