直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G9232X36B-FSRFAN AXIAL 92X32MM 36VDC WIRE Mechatronics Fan Group |
4,606 |
|
数据手册 |
G9232 | Bulk | Active | 36VDC | Square - 92mm L x 92mm H | 32.00mm | 68.0 CFM (1.90m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|
MR1225E24B-FSRFAN AXIAL 120X25MM 24VDC WIRE Mechatronics Fan Group |
1,914 |
|
数据手册 |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 151.0 CFM (4.23m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Tubeaxial | Auto Restart | 56.6dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.275 lb (124.74 g) |
|
E1225E24B-FSRFAN AXIAL 120X25MM 24VDC WIRE Mechatronics Fan Group |
4,626 |
|
数据手册 |
E1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
|
E1225M12B-FSRFAN AXIAL 120X25MM 12VDC WIRE Mechatronics Fan Group |
4,240 |
|
数据手册 |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 67.0 CFM (1.88m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 36.0dB(A) | - | 2200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
F8025E24B-FHR-EM3-L19FAN AXIAL 80X25MM 24VDC WIRE Mechatronics Fan Group |
100 |
|
数据手册 |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 46.0 CFM (1.29m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
G1225L24B2-FSR-TTL-NHFAN AXIAL 120X25MM 24VDC WIRE Mechatronics Fan Group |
4,735 |
|
数据手册 |
G1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 66.0 CFM (1.85m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 29.0dB(A) | - | 1800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|
|
E1225L12B-FSR-CCFAN AXIAL 120X25MM 12VDC WIRE Mechatronics Fan Group |
1,112 |
|
数据手册 |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 55.0 CFM (1.54m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 32.0dB(A) | - | 1800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|

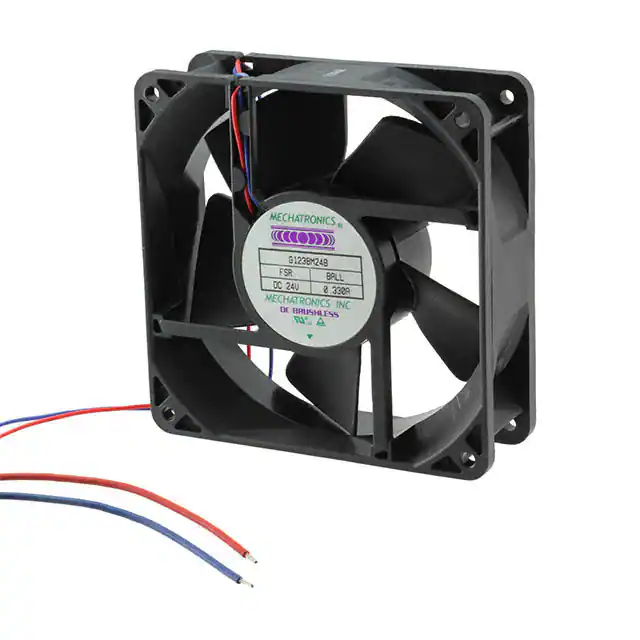

G1238M24B-FSRFAN AXIAL 119X38MM 24VDC WIRE Mechatronics Fan Group |
4,592 |
|
数据手册 |
G1238 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 125.0 CFM (3.50m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 43.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|

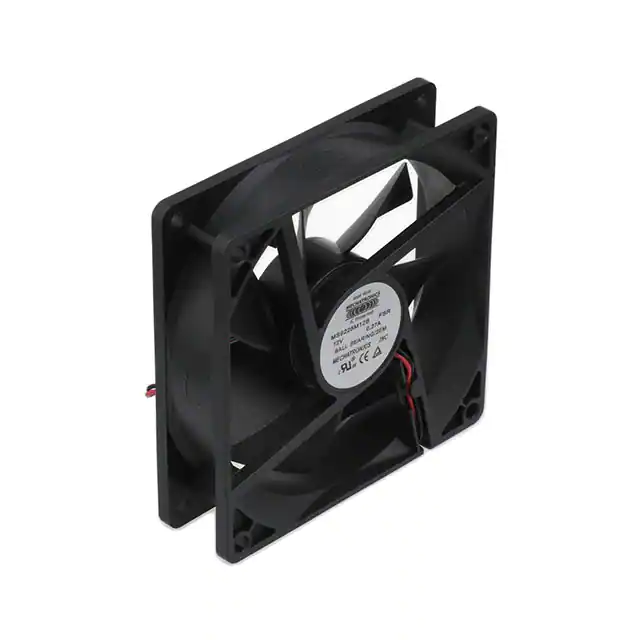

MS9225M12B-FSR-2EMFAN AXIAL 92X25MM 12VDC WIRE Mechatronics Fan Group |
1,910 |
|
数据手册 |
MS9225-S | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 58.1 CFM (1.63m³/min) | 0.220 in H2O (55.0 Pa) | Ball | Tubeaxial | Auto Restart | 43.0dB(A) | - | 3500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.225 lb (102.06 g) |
|
MD9238H24B1-FSRFAN AXIAL 92X38MM 24VDC WIRE Mechatronics Fan Group |
3,471 |
|
数据手册 |
MD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 100.7 CFM (2.82m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 53.5dB(A) | - | 4400 RPM | 3 Wire Leads | - | - | CE, TUV, UL | 0.397 lb (180.08 g) |
