直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G1225E24B-FSR-EMFAN AXIAL 120X25MM 24VDC WIRE Mechatronics Fan Group |
4,839 |
|
数据手册 |
G1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 99.0 CFM (2.77m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 42.0dB(A) | - | 2700 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|
MS6038H12B1+6-FSRFAN AXIAL 60X38MM 12VDC WIRE Mechatronics Fan Group |
100 |
|
数据手册 |
MS6038-S | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 58.0 CFM (1.62m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | - | 11000 RPM | 4 Wire Leads | - | - | - | 0.231 lb (104.78 g) |
|
MR1238L24B-FSRFAN AXIAL 120X38MM 24VDC WIRE Mechatronics Fan Group |
3,165 |
|
数据手册 |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 184.4 CFM (5.16m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Tubeaxial | Auto Restart | 58.5dB(A) | - | 3500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|

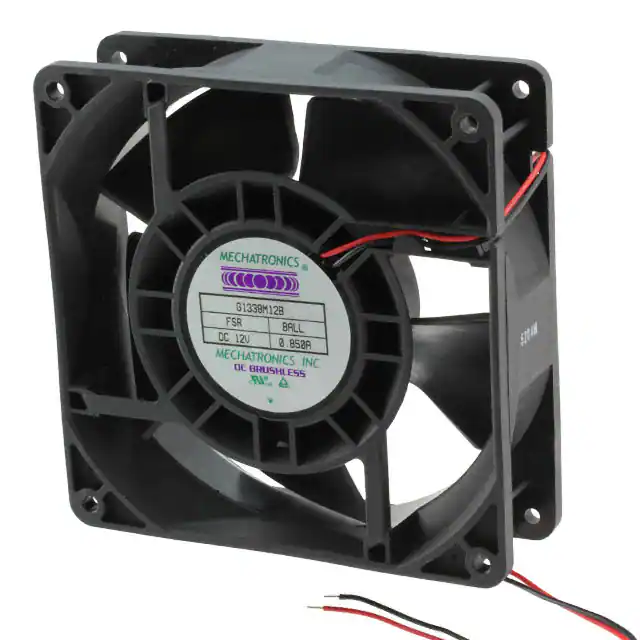

G1338M12B-FSRFAN AXIAL 127X38MM 12VDC WIRE Mechatronics Fan Group |
3,903 |
|
数据手册 |
G1338 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 122.1 CFM (3.42m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 46.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.784 lb (355.62 g) |
|
MS9238H24B1+6-FHRFAN AXIAL 92X38MM 24VDC WIRE Mechatronics Fan Group |
2,846 |
|
数据手册 |
MS9238-H | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 166.7 CFM (4.67m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | - | 8000 RPM | 4 Wire Leads | - | - | - | 0.446 lb (202.3 g) |
|

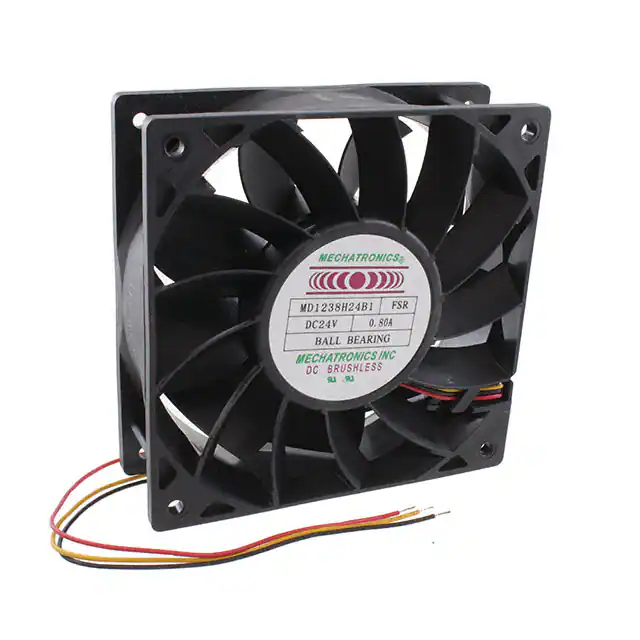

MD1238H24B1-FSRFAN AXIAL 120X38MM 24VDC WIRE Mechatronics Fan Group |
2,576 |
|
数据手册 |
MD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 174.0 CFM (4.87m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 57.8dB(A) | - | 3800 RPM | 3 Wire Leads | - | - | cUL, UL | 0.906 lb (410.95 g) |
|

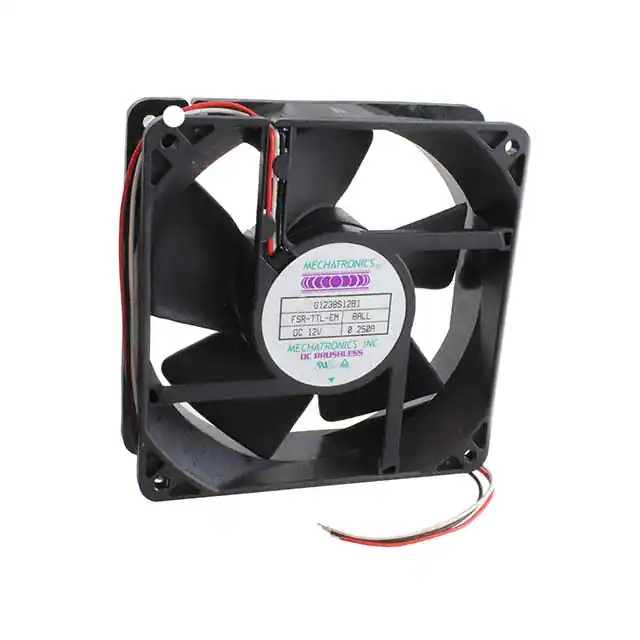

G1238S12B1-FSR-TTL-EMFAN AXIAL 120X38MM 12VDC WIRE Mechatronics Fan Group |
2,857 |
|
数据手册 |
G1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 88.0 CFM (2.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 34.0dB(A) | - | 2000 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
G1338H12B2-FSRFAN AXIAL 127X38MM 12VDC WIRE Mechatronics Fan Group |
3,599 |
|
数据手册 |
G1338 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 49.0dB(A) | - | 3200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.784 lb (355.62 g) |
|
|
G1225S12B-FSR-PCFAN AXIAL 120X25MM 12VDC WIRE Mechatronics Fan Group |
3,890 |
|
数据手册 |
G1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 54.0 CFM (1.51m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 26.0dB(A) | - | 1500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|
MS1238E48B1+6-FHRFAN AXIAL 120X38MM 48VDC WIRE Mechatronics Fan Group |
1,906 |
|
数据手册 |
MS1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 271.1 CFM (7.59m³/min) | 1.190 in H2O (296.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | - | 5000 RPM | 4 Wire Leads | - | - | - | 0.667 lb (302.55 g) |
