直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-08025CBHW11-AFAN AXIAL 80X25MM 12VDC WIRE |
579 |
|
数据手册 |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Ball | Tubeaxial | - | 35.8dB(A) | 2.16 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|

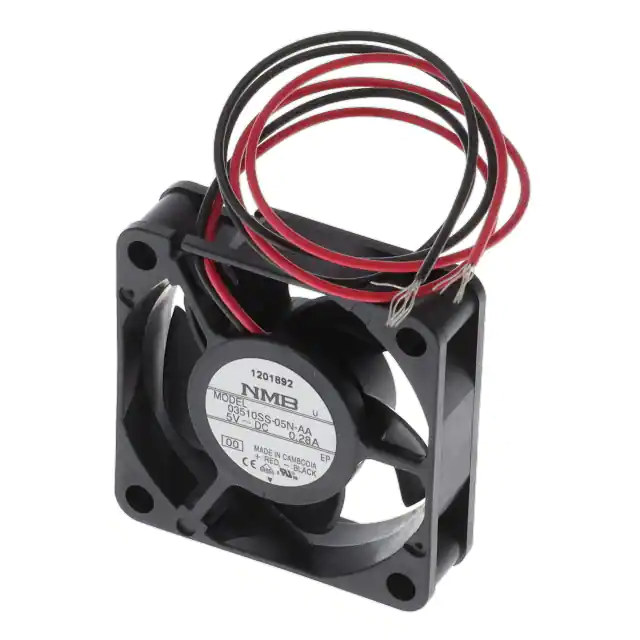

03510SS-05N-AA-00FAN AXIAL 35X10MM 5VDC WIRE |
446 |
|
数据手册 |
03510SS | Box | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 5.7 CFM (0.160m³/min) | 0.230 in H2O (57.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 27.0dB | 1 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-8025V-232-330-20FAN AXIAL 80X25MM 24VDC WIRE |
676 |
|
数据手册 |
CFM-80V | Tray | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.1 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 1.8 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.165 lb (74.84 g) |
|
CFM-6025CF-135-274FAN AXIAL 60X25.4MM 12VDC WIRE |
280 |
|
数据手册 |
CFM-60CF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 27.5dB(A) | 1.8 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9225V-224-280-20FAN AXIAL 92X25MM 24VDC WIRE |
255 |
|
数据手册 |
CFM-92V | Tray | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 1.23 W | 2400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
CFM-4020V-050-165FAN AXIAL 40X20MM 5VDC WIRE |
2,055 |
|
数据手册 |
CFM-40V | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 6.3 CFM (0.176m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 16.5dB(A) | 440 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
CFM-6010V-140-285-20FAN AXIAL 60X10MM 12VDC WIRE |
1,754 |
|
数据手册 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 16.3 CFM (0.456m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.5dB(A) | 1.5 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.051 lb (23.13 g) |
|
|
CFM-4020V-170-255FAN AXIAL 40X20MM 12VDC WIRE |
965 |
|
数据手册 |
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 25.5dB(A) | 810 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
CFM-8020CF-125-273FAN AXIAL 80X20MM 12VDC WIRE |
301 |
|
数据手册 |
CFM-80CF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 24.5 CFM (0.685m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 27.4dB(A) | 960 mW | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-7025C-130-332-20FAN AXIAL 70X25.2MM 12VDC WIRE |
210 |
|
数据手册 |
CFM-70C | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.20mm | 25.9 CFM (0.725m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.8dB(A) | 1.44 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-7025C-240-394-20FAN AXIAL 70X25.2MM 24VDC WIRE |
200 |
|
数据手册 |
CFM-70C | Box | Active | 24VDC | Square - 70mm L x 70mm H | 25.20mm | 34.5 CFM (0.966m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.1dB(A) | 3.36 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9225C-230-356FAN AXIAL 92X32MM 24VDC WIRE |
140 |
|
数据手册 |
CFM-92C | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 50.0 CFM (1.40m³/min) | 0.150 in H2O (37.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 35.6dB(A) | 3.6 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8025C-135-364FAN AXIAL 80X25MM 12VDC WIRE |
110 |
|
数据手册 |
CFM-80C | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 43.3 CFM (1.21m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 36.4dB(A) | 3.96 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-7025C-140-394-20FAN AXIAL 70X25.2MM 12VDC WIRE |
101 |
|
数据手册 |
CFM-70C | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.20mm | 34.5 CFM (0.966m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.1dB(A) | 3.24 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

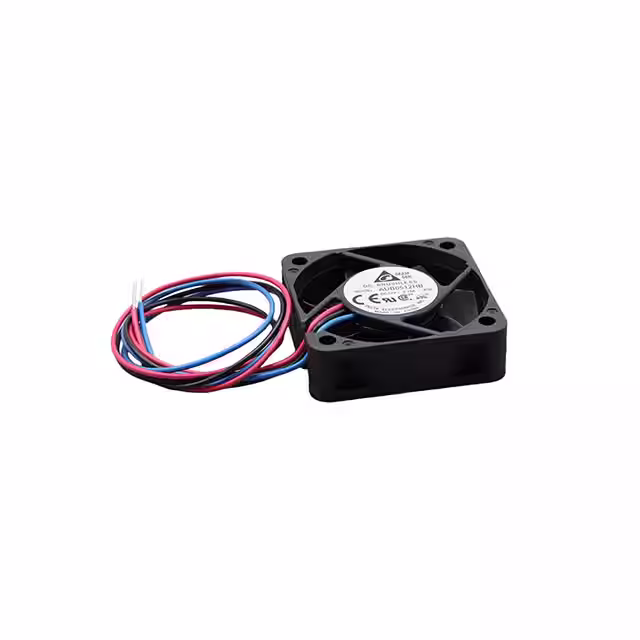

AUB0512HB-F00FAN AXIAL 50X15MM 12VDC WIRE |
619 |
|
数据手册 |
AUB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.240 in H2O (59.8 Pa) | Superflo | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 1.2 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.045 lb (20.41 g) |
|
CFM-4010B-165-251FAN AXIAL 40X10.5MM 12VDC WIRE |
1,268 |
|
数据手册 |
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart | 25.1dB(A) | 720 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-7015C-140-357-20FAN AXIAL 70X15.5MM 12VDC WIRE |
290 |
|
数据手册 |
CFM-70C | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.50mm | 25.7 CFM (0.720m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.7dB(A) | 3.12 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8015CF-140-363-20FAN AXIAL 80X15.4MM 12VDC WIRE |
224 |
|
数据手册 |
CFM-80CF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.40mm | 43.6 CFM (1.22m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.2dB(A) | 6.12 W | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-7015C-030-295-20FAN AXIAL 70X15.5MM 5VDC WIRE |
203 |
|
数据手册 |
CFM-70C | Box | Active | 5VDC | Square - 70mm L x 70mm H | 15.50mm | 19.3 CFM (0.540m³/min) | 0.080 in H2O (19.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.5dB(A) | 1.3 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
03515SS-05N-AT-00FAN AXIAL 35X15MM 5VDC WIRE |
317 |
|
数据手册 |
03515SS | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 15.00mm | 5.6 CFM (0.157m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 24.0dB | 900 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.028 lb (12.7 g) |
