直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-04020CBLW11FAN AXIAL 40X20MM 12VDC WIRE |
547 |
|
数据手册 |
FAD1-04020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.0 CFM (0.196m³/min) | 0.165 in H2O (41.1 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 840 mW | 6200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.062 lb (28.12 g) |
|
CFM-6020V-150-335-20FAN AXIAL 60X20MM 12VDC WIRE |
443 |
|
数据手册 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 23.0 CFM (0.644m³/min) | 0.210 in H2O (52.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.5dB(A) | 1.38 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|
FAD1-09225CBHW11FAN AXIAL 92.5X25MM 12VDC WIRE |
306 |
|
数据手册 |
FAD1-09225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | 56.1 CFM (1.57m³/min) | 0.146 in H2O (36.4 Pa) | Ball | Tubeaxial | - | 37.5dB(A) | 2.88 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|

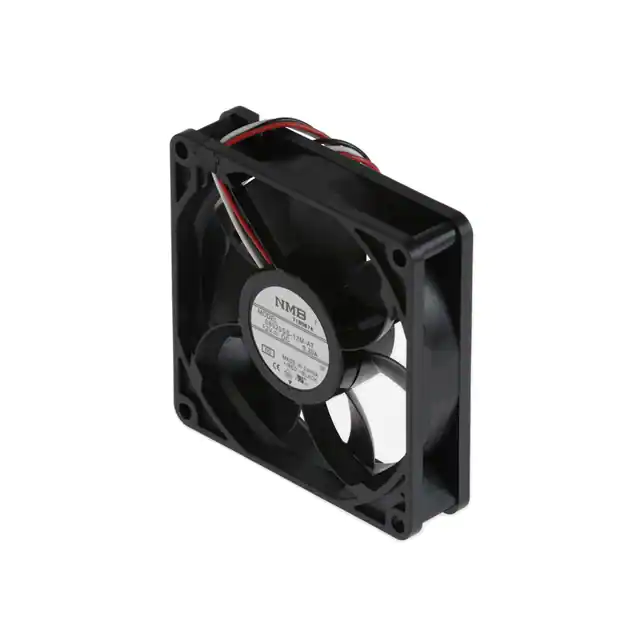

08020SS-12M-AT-00FAN AXIAL 80X20MM 12VDC WIRE |
1,757 |
|
数据手册 |
08020SS | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 40.0 CFM (1.12m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.5dB | 1.8 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.167 lb (75.75 g) |
|
CBM-979433S-230-507-20FAN BLOWER 97X33MM 24VDC WIRE |
247 |
|
数据手册 |
CBM-97S | Box | Active | 24VDC | Rectangular/Rounded - 97mm L x 94.8mm H | 33.00mm | 18.1 CFM (0.507m³/min) | 0.400 in H2O (99.6 Pa) | Sleeve | Blower | Auto Restart, Speed Sensor (Tach) | 43.5dB(A) | 8.4 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6015CF-245-332-20FAN AXIAL 60X15.5MM 24VDC WIRE |
199 |
|
数据手册 |
CFM-60CF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 19.8 CFM (0.554m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.2dB(A) | 2.64 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
FAD1-06025DHJW12-AFAN AXIAL 60X25MM 24VDC WIRE |
289 |
|
数据手册 |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 26.1 CFM (0.731m³/min) | 0.298 in H2O (74.2 Pa) | Hydrodynamic | Tubeaxial | - | 38.4dB(A) | 2.88 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
AUB0612VH-AITFAN AXIAL 60X25.4MM 12VDC |
3,222 |
|
数据手册 |
AUB | Box | Not For New Designs | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 29.3 CFM (0.820m³/min) | 0.352 in H2O (87.7 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 42.5dB(A) | 2.88 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.15 lb (68.04 g) |
|
FAD1-08025CBJW11-AFAN AXIAL 80X25MM 12VDC WIRE |
220 |
|
数据手册 |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 43.6 CFM (1.22m³/min) | 0.204 in H2O (51.0 Pa) | Ball | Tubeaxial | - | 40.5dB(A) | 3 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
AUB0512HBFAN AXIAL 50X15MM 12VDC WIRE |
910 |
|
数据手册 |
AUB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.240 in H2O (59.8 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.2 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.045 lb (20.41 g) |
|
04015SS-12N-AL-00FAN AXIAL 40X15MM 12VDC WIRE |
254 |
|
数据手册 |
04015SS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 7.4 CFM (0.207m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.0dB | 720 mW | 8300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-8025B-230-330FAN AXIAL 80X25MM 24VDC WIRE |
792 |
|
数据手册 |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart | 33.0dB(A) | 2.64 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025B-225-290FAN AXIAL 80X25MM 24VDC WIRE |
645 |
|
数据手册 |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 30.9 CFM (0.865m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart | 29.0dB(A) | 1.92 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

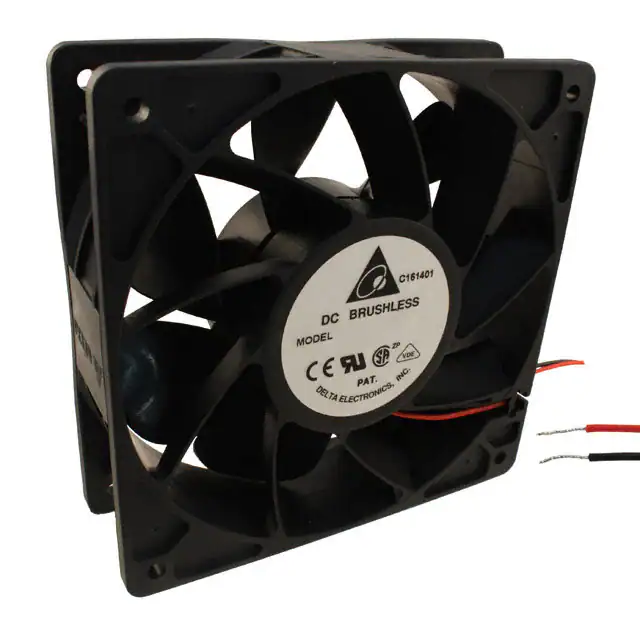

QFR0912VHFAN AXIAL 92X25.4MM 12VDC WIRE |
1,375 |
|
数据手册 |
QFR | Box | Not For New Designs | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 74.8 CFM (2.09m³/min) | 0.339 in H2O (84.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 4.8 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.243 lb (110.22 g) |
|
MF50151VX-1000U-F99FAN AXIAL 50X15MM 12VDC WIRE |
159 |
|
数据手册 |
MagLev® MF | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 18.6 CFM (0.521m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.1dB(A) | 1.32 W | 7200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.073 lb (33.11 g) |
|
CFM-9225C-125-317-20FAN AXIAL 92X32MM 12VDC WIRE |
211 |
|
数据手册 |
CFM-92C | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 41.7 CFM (1.17m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.7dB(A) | 1.8 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9A0912S402FAN AXIAL 92X25MM 12VDC WIRE |
380 |
|
数据手册 |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.24 W | 3550 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
CFM-9225V-227-320-20FAN AXIAL 92X25MM 24VDC WIRE |
880 |
|
数据手册 |
CFM-92V | Tray | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.5 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 1.54 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
02510SS-12M-AA-00FAN AXIAL 25X10MM 12VDC WIRE |
463 |
|
数据手册 |
02510SS | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | - | - | Sleeve | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
109R0805F401FAN AXIAL 80X25MM BALL 5VDC WIRE |
139 |
|
数据手册 |
San Ace 80 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 1.25 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
