直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9TG24P0G01FAN IMP MTRZD 175X69MM 24VDC |
284 |
|
数据手册 |
San Ace C175 | Box | Active | 24VDC | Round - 175mm Dia | 69.00mm | 494.7 CFM (13.85m³/min) | 3.550 in H2O (885.0 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 93.6 W | 4700 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.7 lbs (771.1 g) |
|
4118N/2H7PFAN AXIAL 119X38MM 48VDC WIRE |
392 |
|
数据手册 |
4100N | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 294.0 CFM (8.23m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 90 W | 9500 RPM | 4 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.937 lb (425.02 g) |
|
9W2TM24P4H001FAN IMP MTRZD 100X25MM 24VDC |
114 |
|
数据手册 |
San Ace 100W | Box | Active | 24VDC | Round - 100mm Dia | 25.00mm | 62.5 CFM (1.75m³/min) | 2.250 in H2O (560.0 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 10.56 W | 6400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
RG160-28/12NFAN BLOWER CF 220X56MM 12VDC |
4,129 |
|
数据手册 |
RG160N | Bulk | Active | 12VDC | Square - 220mm L x 220mm H | 56.00mm | 123.0 CFM (3.44m³/min) | - | Ball | Blower, Centrifugal | - | 66.0dB(A) | 21 W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 3.1 lbs (1.4 kg) |
|
109E5724H502FAN AXIAL 172X51MM 24VDC WIRE |
114 |
|
数据手册 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.0dB(A) | 13.92 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
109E1724H502FAN AXIAL 172X51MM 24VDC WIRE |
2,883 |
|
数据手册 |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 13.92 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|

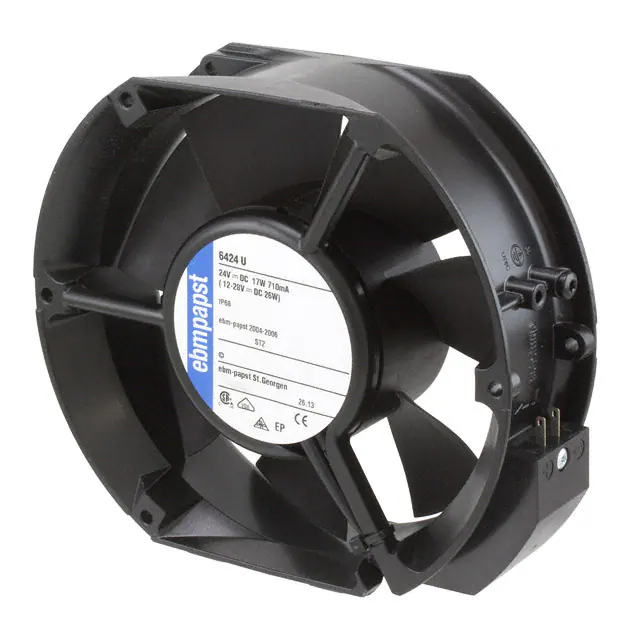

6424UFAN AXL 171.5X50.8MM 24VDC TERM |
2,297 |
|
数据手册 |
6400U | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | - | 57.0dB(A) | 18 W | 3400 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -4 ~ 167°F (-20 ~ 75°C) | UL | 1.7 lbs (771.1 g) |
|

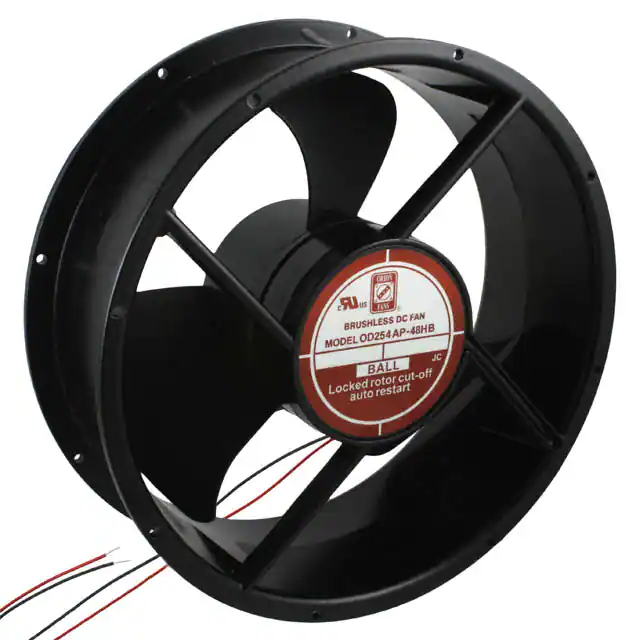

OD254AP-48HBFAN AXIAL 254X89MM 48VDC WIRE |
2,230 |
|
数据手册 |
OD254 | Box | Active | 48VDC | Round - 254mm Dia | 89.00mm | 850.0 CFM (23.80m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Auto Restart | 64.0dB | 62 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
THB2048HG-01FAN AXIAL 208X53MM 48VDC WIRE |
2,096 |
|
数据手册 |
THB | Bulk | Active | 48VDC | Round - 208mm Dia | 53.00mm | 787.8 CFM (22.06m³/min) | 3.665 in H2O (912.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 75.5dB(A) | 168 W | 6400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | - |
|
RER120-26/14/2TDPFAN IMP MTRZD 120X54MM 24VDC |
159 |
|
数据手册 |
RER120TD | Box | Active | 24VDC | Round - 120mm Dia | 54.00mm | 221.9 CFM (6.21m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 78 W | 6100 RPM | 4 Wire Leads | - | - | - | 0.95 lb (430.91 g) |
|
ODB22599-48HB10AFAN IMP MTRZD 225X99MM 48VDC |
599 |
|
数据手册 |
ODB | Bulk | Active | 48VDC | Round - 225mm Dia | 99.00mm | 835.0 CFM (23.38m³/min) | 2.050 in H2O (510.6 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 55.0dB | 110.4 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 149°F (-10 ~ 65°C) | CE, cURus, TUV, UR | 3.3 lbs (1.5 kg) |
|

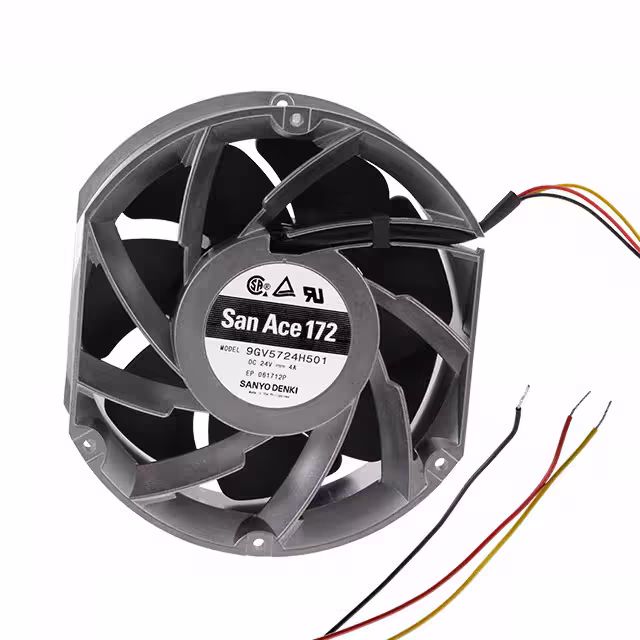

9GV5724H501FAN AXIAL 172X51MM 24VDC WIRE |
2,739 |
|
数据手册 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 400.0 CFM (11.20m³/min) | 2.770 in H2O (690.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 74.0dB(A) | 96 W | 6300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.8 lb (800.0 g) |
|

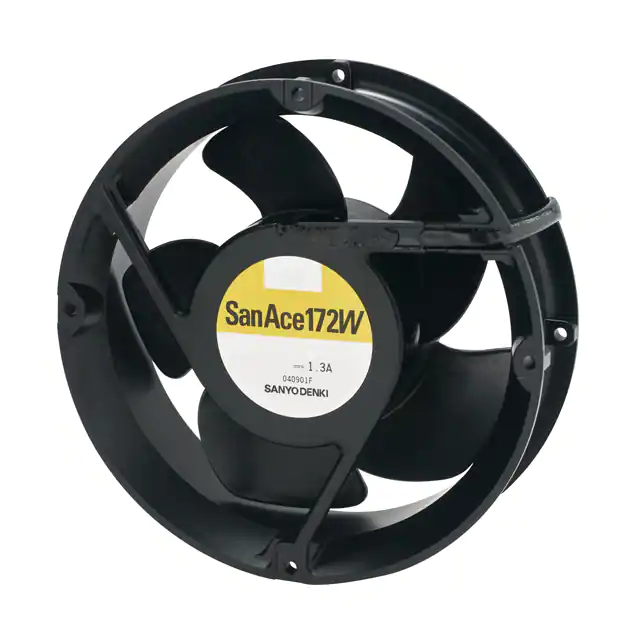

9WE1724K501FAN AXIAL 172X51MM 24VDC WIRE |
4,566 |
|
数据手册 |
San Ace 172W | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 300.1 CFM (8.40m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 55.0dB(A) | 31.2 W | 4100 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.9 lbs (900.0 g) |
|

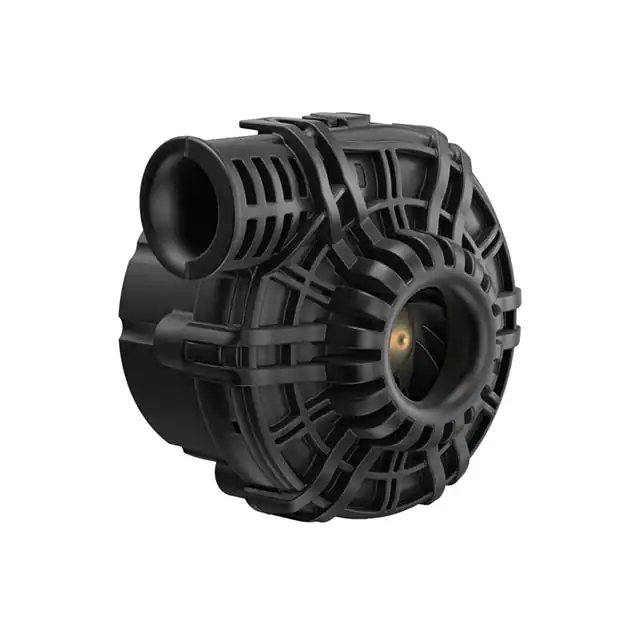

RV45-3/14SFAN BLOWER CF 69.5X54.95MM 24VDC |
3,615 |
|
数据手册 |
RV45 | Bulk | Active | 24VDC | Rectangular/Rounded - 69.5mm L x 63.9mm H | 54.95mm | 14.5 CFM (0.406m³/min) | - | Ball | Blower, Centrifugal | Speed Sensor (Tach) | 49.0dB(A) | 43 W | 40000 RPM | 3 Position Rectangular Connector and 6 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.298 lb (135.17 g) |
|
DV5214NUFAN AXIAL 127X38MM 24VDC WIRE |
214 |
|
数据手册 |
DV5200U | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 158.9 CFM (4.45m³/min) | - | Ball | Tubeaxial | - | 56.0dB(A) | 19.8 W | 4930 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | UL | 1.2 lbs (544.3 g) |
|

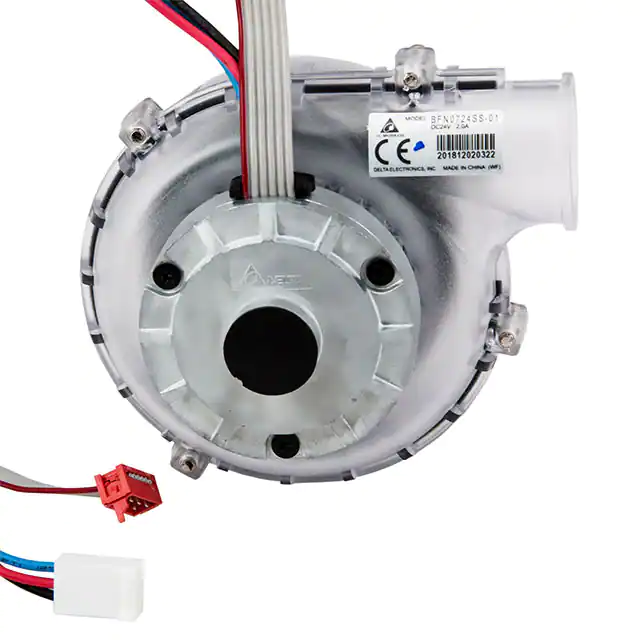

BFN0724SS-01FAN BLOWER 57.5MM 24VDC |
2,157 |
|
数据手册 |
BFN - High-Performance | Box | Active | 24VDC | - | 57.50mm | 18.1 CFM (0.507m³/min) | 19.660 in H2O (4897.1 Pa) | Ball | Blower | - | 38.0dB(A) | 36 W | 17300 RPM | 3 Position Rectangular Connector and 6 Position Rectangular Connector | IP20 | 14 ~ 104°F (-10 ~ 40°C) | CE | 0.508 lb (230.42 g) |
|

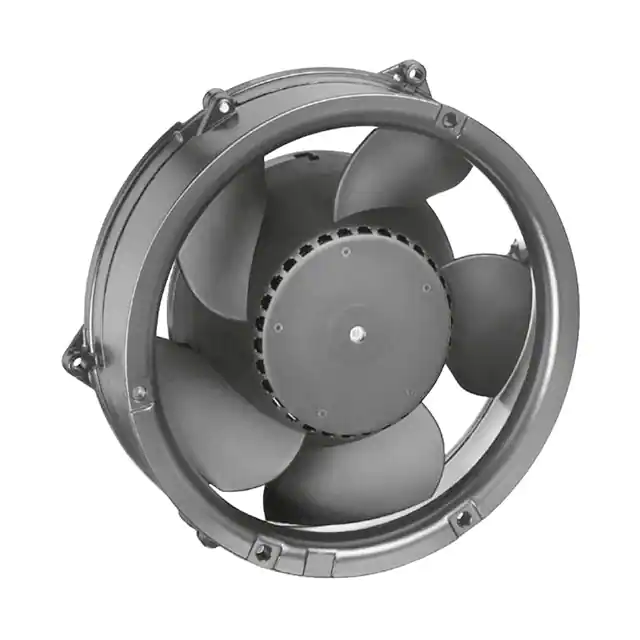

DV6224/2FAN AXIAL 171.5X50.8MM 24VDC |
2,239 |
|
数据手册 |
DV6200 | Bulk | Active | 24VDC | Round - 171.5mm Dia | 50.80mm | 317.8 CFM (8.90m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 63.0dB(A) | 40 W | 4300 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
6314/2TDHPFAN AXIAL 172X50.8MM 24VDC WIRE |
126 |
|
数据手册 |
6300TD | Bulk | Active | 24VDC | Round - 172mm Dia | 50.80mm | 353.1 CFM (9.89m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 40 W | 5500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 2 lbs (907.2 g) |
|
RVE45-3/54/2AFAN BLOWER CF 64.6X65.5MM 24VDC |
1,613 |
|
数据手册 |
RVE45 | Bulk | Active | 24VDC | Rectangular/Rounded - 64.6mm L x 64.5mm H | 65.50mm | 17.7 CFM (0.496m³/min) | 18.066 in H2O (4500.0 Pa) | Ball | Blower, Centrifugal | Auto Restart, Speed Sensor (Tach), Thermistor | 58.0dB(A) | 36 W | 36500 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CCC, CE, CSA, EAC, UL, VDE | - |
|

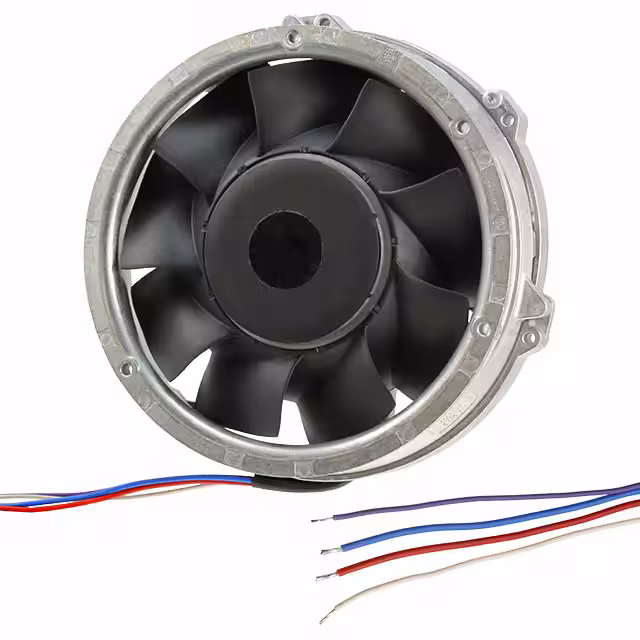

DV6318/2TDH5PFAN AXIAL 171.5X50.8MM 48VDC |
3,011 |
|
数据手册 |
DV6300 | Bulk | Active | 48VDC | Round - 171.5mm Dia | 50.80mm | 647.0 CFM (18.12m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 79.0dB(A) | 360 W | 6800 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CSA, UL, VDE | 2.1 lbs (952.5 g) |
