直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-6020V-150-335FAN AXIAL 60X20MM 12VDC WIRE |
163 |
|
数据手册 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 23.0 CFM (0.644m³/min) | 0.210 in H2O (52.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 33.5dB(A) | 1.38 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|
OD4010-05HSSFAN AXIAL 40X10.5MM 5VDC WIRE |
363 |
|
数据手册 |
OD4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 9.2 CFM (0.258m³/min) | 0.200 in H2O (49.8 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 33.2dB | - | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | 0.441 lb (200.00 g) |
|

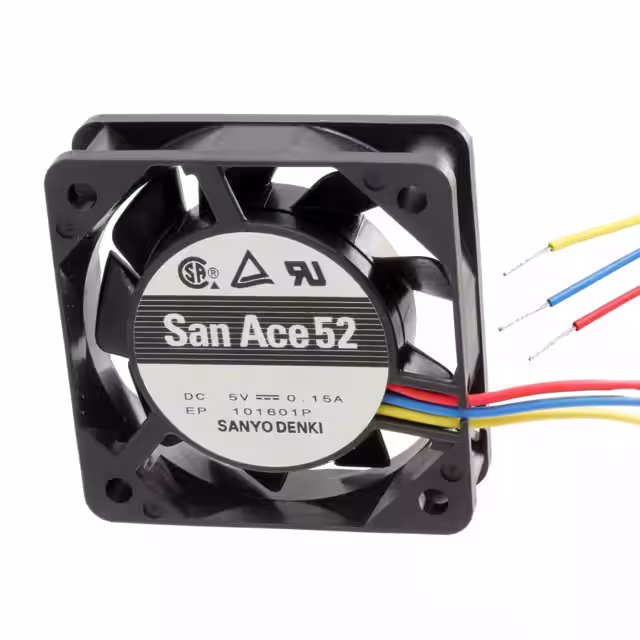

109P0505M701FAN AXIAL 52X15MM BALL 5VDC WIRE |
512 |
|
数据手册 |
San Ace 52 | Box | Active | 5VDC | Square - 52mm L x 52mm H | 15.00mm | 7.2 CFM (0.202m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 750 mW | 3700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
CFM-7015V-133-315-20FAN AXIAL 70X15MM 12VDC WIRE |
169 |
|
数据手册 |
CFM-70V | Tray | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 27.0 CFM (0.756m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.5dB(A) | 1.56 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.091 lb (41.28 g) |
|
FAD1-08025DBHW11-AFAN AXIAL 80X25MM 24VDC WIRE |
124 |
|
数据手册 |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Ball | Tubeaxial | - | 35.8dB(A) | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
MR4020M24B-RSRFAN AXIAL 40X20MM 24VDC WIRE |
312 |
|
数据手册 |
MR4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.5 CFM (0.322m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 29.8dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
MF40201V1-1000U-F99FAN AXIAL 40X20MM 12VDC WIRE |
401 |
|
数据手册 |
MagLev® MF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.220 in H2O (54.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.5dB(A) | 700 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.064 lb (29.03 g) |
|
CFM-6025CF-265-408-20FAN AXIAL 60X25.4MM 24VDC WIRE |
172 |
|
数据手册 |
CFM-60CF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 31.1 CFM (0.871m³/min) | 0.370 in H2O (92.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.9dB(A) | 5.52 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8020CF-245-401-20FAN AXIAL 80X20MM 24VDC WIRE |
103 |
|
数据手册 |
CFM-80CF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.240 in H2O (59.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.2dB(A) | 4.32 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
08015SS-12N-AL-00FAN AXIAL 80X15MM 12VDC WIRE |
300 |
|
数据手册 |
08015SS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 33.9 CFM (0.949m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 34.0dB | 2.52 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
08015SS-12N-AT-00FAN AXIAL 80X15MM 12VDC WIRE |
233 |
|
数据手册 |
08015SS | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 34.0 CFM (0.952m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB | 2.52 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.122 lb (55.34 g) |
|
06025SS-12N-AT-D0FAN AXIAL 60X25MM 12VDC WIRE |
157 |
|
数据手册 |
06025SS | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB | 2.16 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
109P0612B701FAN AXIAL 60X15MM 12VDC WIRE |
157 |
|
数据手册 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 7.4 CFM (0.207m³/min) | 0.047 in H2O (11.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 600 mW | 2200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
|
ASB0305HA-DFAN AXIAL 30X10MM 5VDC WIRE |
173 |
|
数据手册 |
ASB | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.3 CFM (0.120m³/min) | 0.214 in H2O (53.3 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 700 mW | 10500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
CFM-8025B-130-330-20FAN AXIAL 80X25MM 12VDC WIRE |
856 |
|
数据手册 |
CFM-80B | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 2.52 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3010B-1100-316FAN AXIAL 30X10.5MM 12VDC WIRE |
150 |
|
数据手册 |
CFM-30B | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | 3.2 CFM (0.090m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart | 31.6dB(A) | 1.32 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6025BF-265-408FAN AXIAL 60X25.4MM 24VDC WIRE |
2,963 |
|
数据手册 |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 31.1 CFM (0.871m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart | 40.9dB(A) | 4.08 W | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
4516HQ/MF40201V1-1D02A-A99DC FAN 40X20MM VAPO 8.5CFM |
116 |
|
数据手册 |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
08020SA-24J-EA-00FAN AXIAL 80X20MM 24VDC WIRE |
281 |
|
数据手册 |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | - | 27.0dB | 1.2 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (79.83 g) |
|
|
CFM-6025V-145-270-20FAN AXIAL 60X25MM 12VDC WIRE |
1,041 |
|
数据手册 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.0dB(A) | 1.05 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
