DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

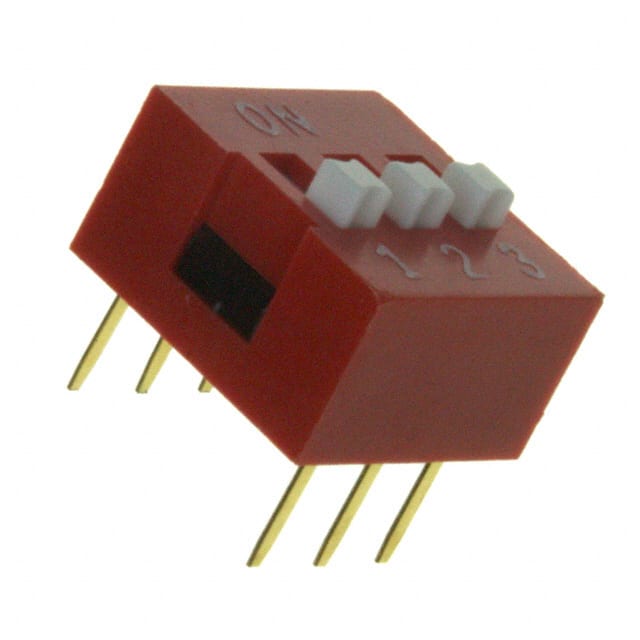

KAS1103ESWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
3,846 |
|
数据手册 |
KAS | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KAR04LGGRSWITCH PIANO DIP SPST 0.025A 24V E-Switch |
4,159 |
|
数据手册 |
KAR | Tape & Reel (TR) | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
KAE02SGGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
3,058 |
|
数据手册 |
KAE | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

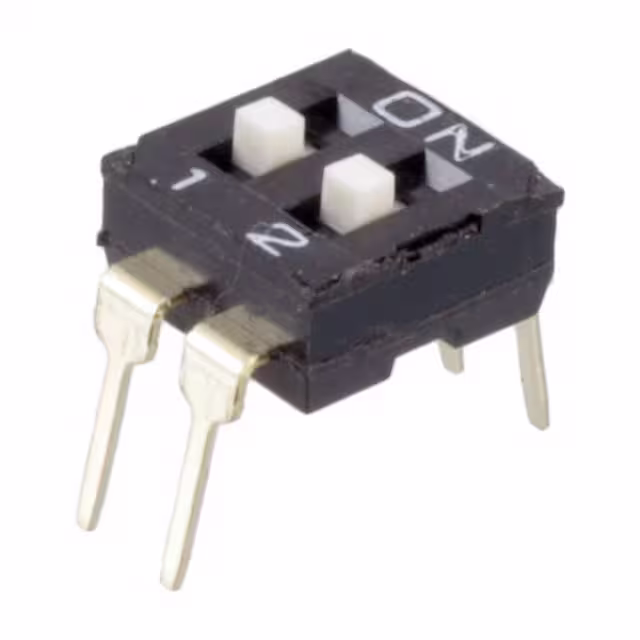

KAE02LAGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
3,648 |
|
数据手册 |
KAE | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.169" (4.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAE02LHGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
4,067 |
|
数据手册 |
KAE | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.169" (4.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAE01SGGRSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
4,393 |
|
数据手册 |
KAE | Tape & Reel (TR) | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.123" (3.12mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAE02LGGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
4,762 |
|
数据手册 |
KAE | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAS1109ETSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
4,985 |
|
数据手册 |
KAS | Bulk | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.278" (7.06mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
KAP1105ESWITCH PIANO DIP SPST 0.025A 24V E-Switch |
1,825 |
|
数据手册 |
KAP | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAE02TAGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
4,756 |
|
数据手册 |
KAE | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
