DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAE01SGGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
26,414 |
|
数据手册 |
KAE | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
KAE01LAGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
2,366 |
|
数据手册 |
KAE | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.169" (4.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
KAE04LGGRSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
5,986 |
|
数据手册 |
KAE | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

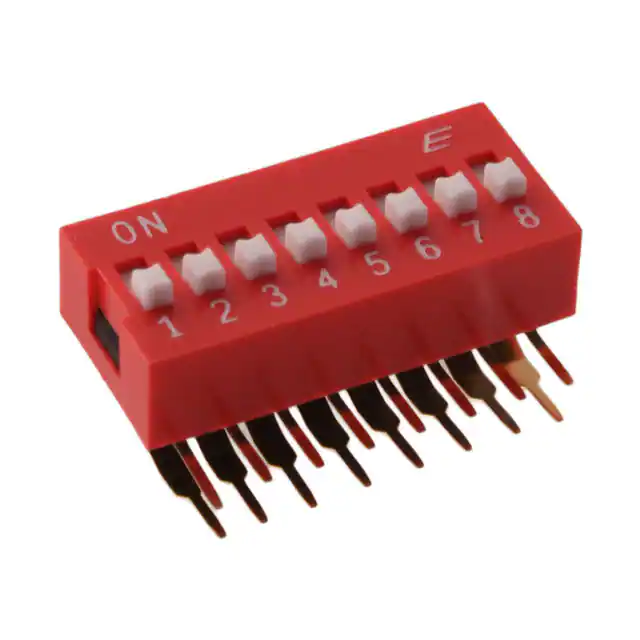

KAS2108ESWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
192 |
|
数据手册 |
KAS | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KAN1102RTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
2,337 |
|
数据手册 |
KAN | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
RDTDR04P1TSWITCH ROTARY DIP BCD 0.15A 42V E-Switch |
2,204 |
|
数据手册 |
RDT | Tube | Active | BCD | 4 | 150mA | 42VDC | Rotary for Tool | Raised | - | Gold | 0.295" (7.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

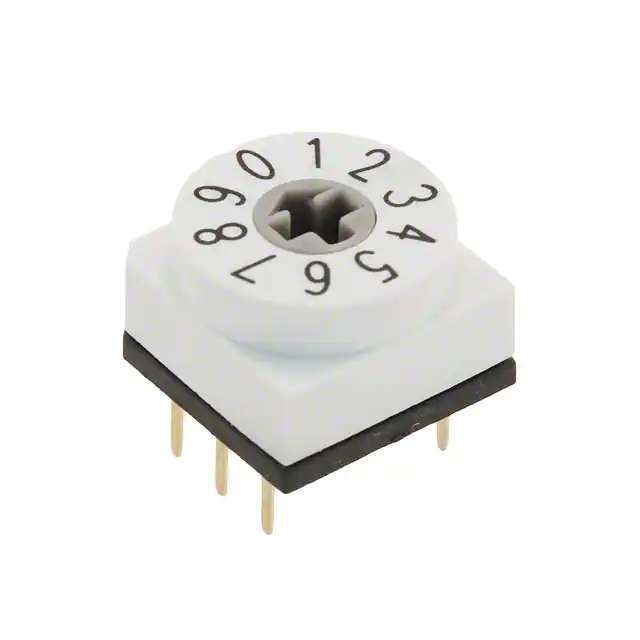

RDTAR10P1TSWITCH ROTARY DIP BCD 0.15A 42V E-Switch |
3,470 |
|
数据手册 |
RDT | Tube | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

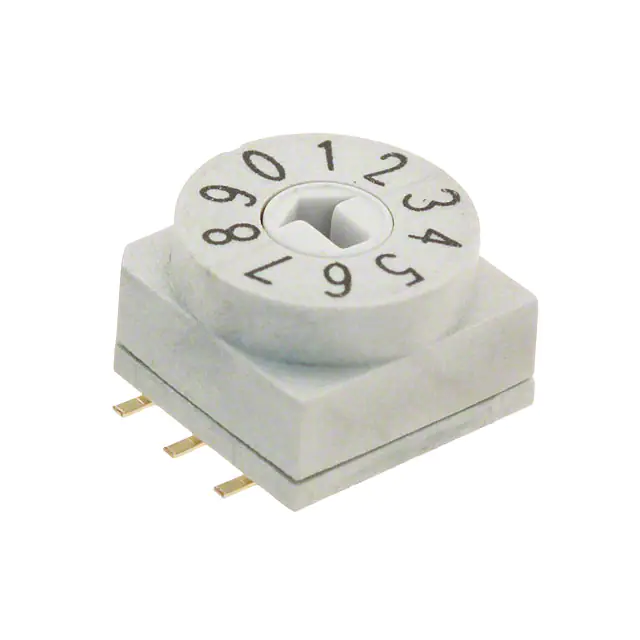

RDTAR10S1RSWITCH ROTARY DIP BCD 0.15A 42V E-Switch |
1,506 |
|
数据手册 |
RDT | Tape & Reel (TR) | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.264" (6.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|

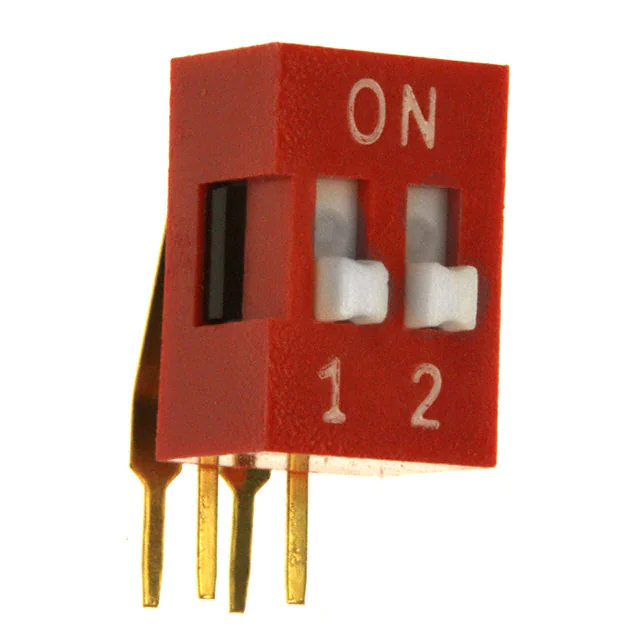

KAS2102ESWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,372 |
|
数据手册 |
KAS | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

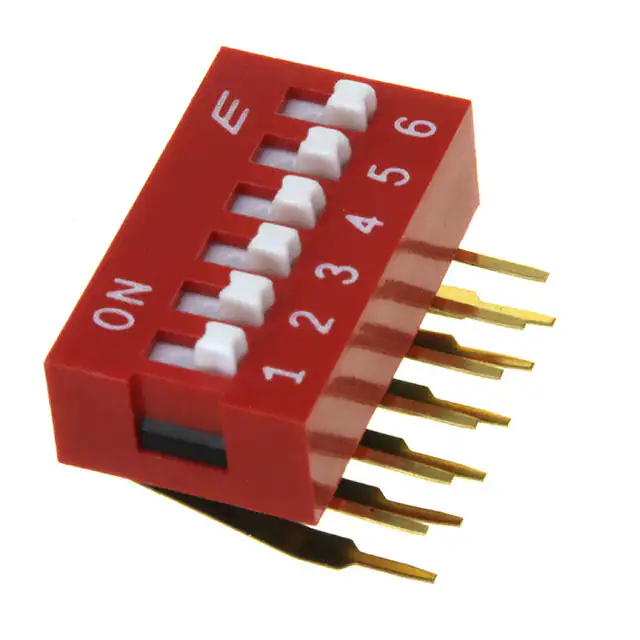

KAS2106ESWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,688 |
|
数据手册 |
KAS | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
