DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDTCR08P1TSW ROTARY DIP OCTAL 0.15A 42V E-Switch |
3,519 |
|
数据手册 |
RDT | Tube | Active | Octal | 8 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

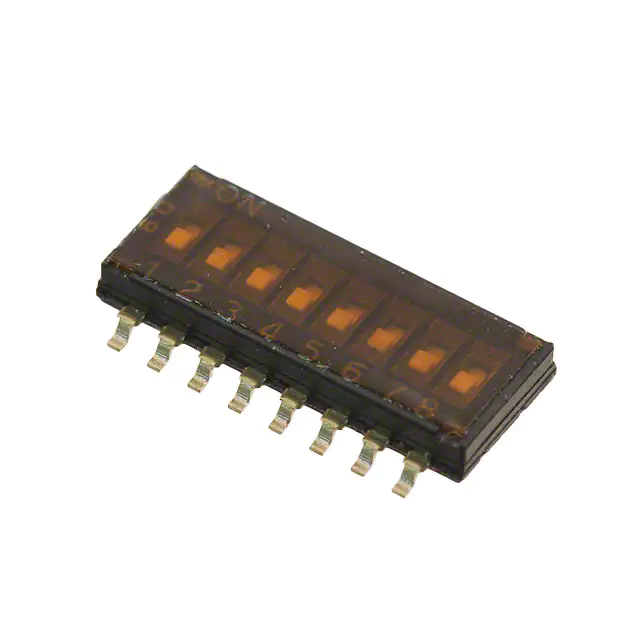

KAN1108RTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,084 |
|
数据手册 |
KAN | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
KAE02SGGRSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,778 |
|
数据手册 |
KAE | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

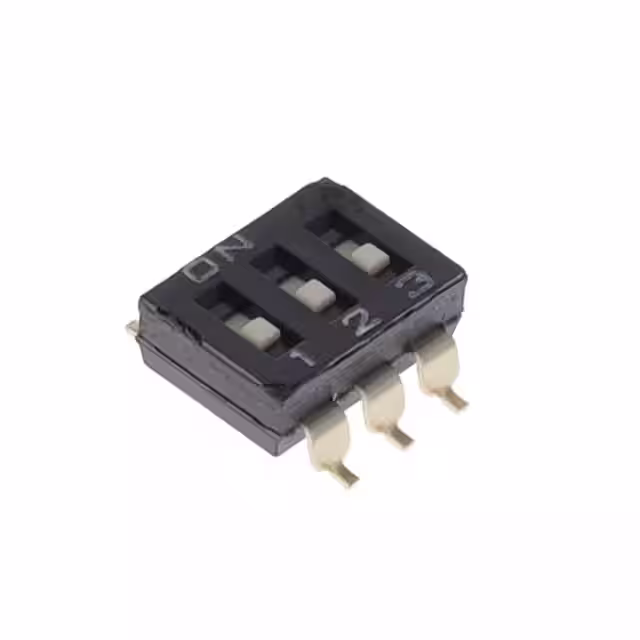

KAE03TGGRSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,780 |
|
数据手册 |
KAE | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|

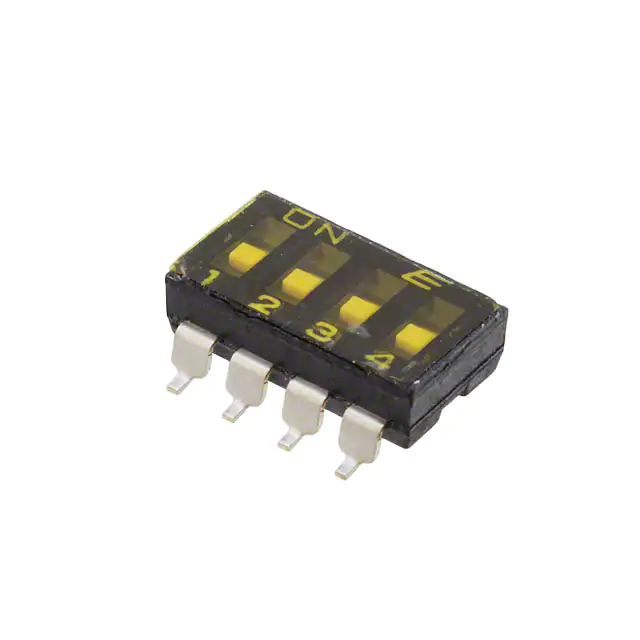

KAE04TGGTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
359 |
|
数据手册 |
KAE | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
KAS2106ETNOMARKING-HTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,007 |
|
数据手册 |
KAS | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.390" (9.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KAS2110ETNOMARKING-HTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,003 |
|
数据手册 |
KAS | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.390" (9.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

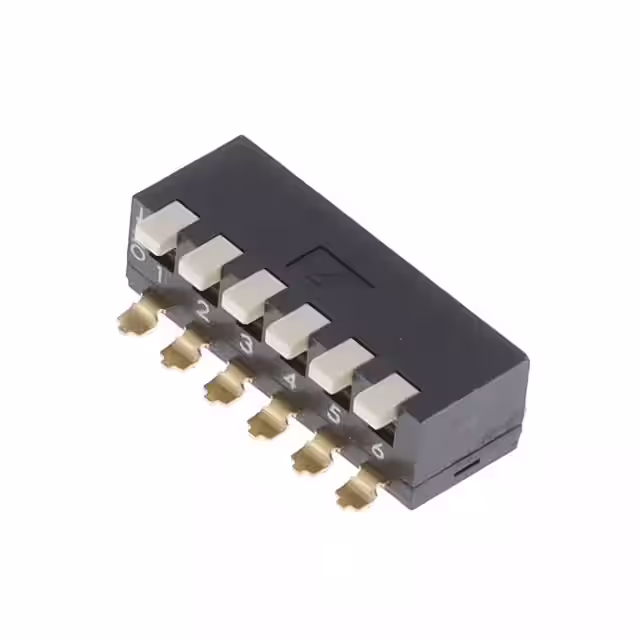

KAC06LGGRSWITCH PIANO DIP SPST 0.025A 24V E-Switch |
3,696 |
|
数据手册 |
KAC | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.201" (5.10mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

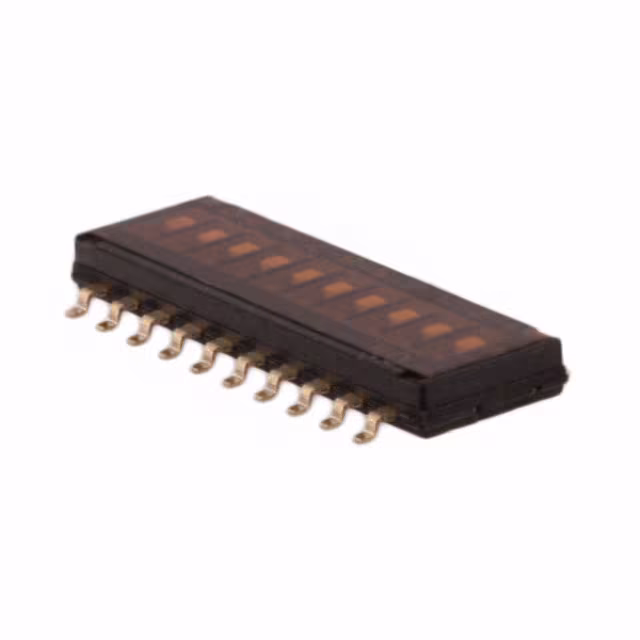

KAN1110RTSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,270 |
|
数据手册 |
KAN | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|

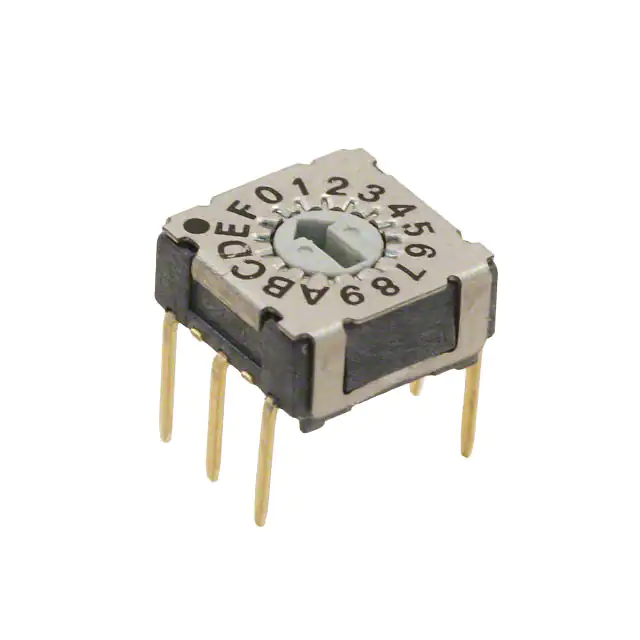

RDMAR16P1TSWITCH ROTARY DIP HEX 0.1A 42V E-Switch |
111 |
|
数据手册 |
RDM | Tube | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
