DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAE01LGGRSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,090 |
|
数据手册 |
KAE | Tape & Reel (TR) | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.176" (4.47mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAG04TGGRSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
308 |
|
数据手册 |
KAG | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 105°C |
|

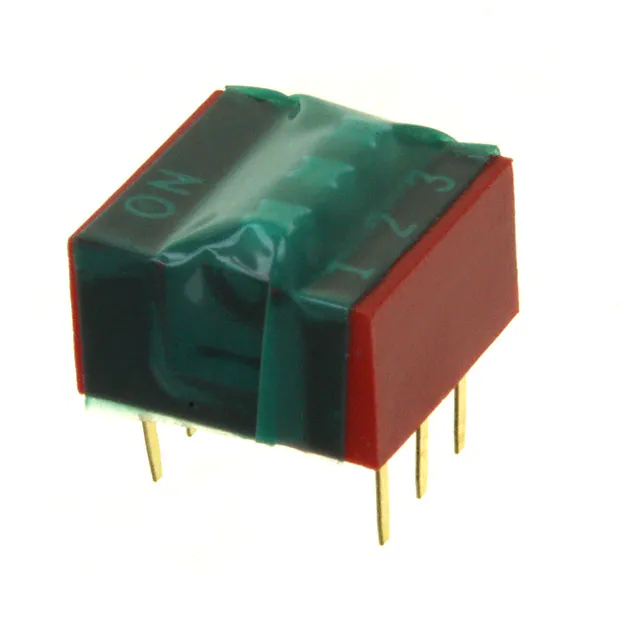

KAS1103ETSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
738 |
|
数据手册 |
KAS | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

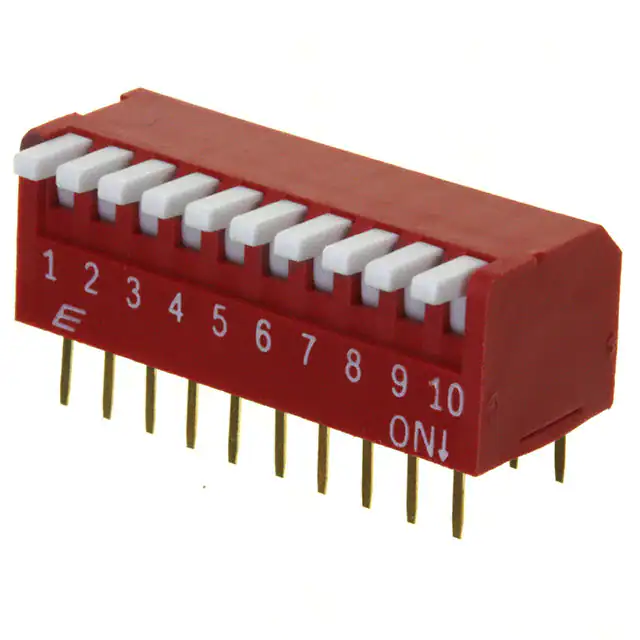

KAP1110ESWITCH PIANO DIP SPST 0.025A 24V E-Switch |
499 |
|
数据手册 |
KAP | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAG02TGGRSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,166 |
|
数据手册 |
KAG | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 105°C |
|
|
KAG08TGGRSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
800 |
|
数据手册 |
KAG | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 105°C |
|
|
KAE01TGGRSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
3,555 |
|
数据手册 |
KAE | Tape & Reel (TR) | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.120" (3.05mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|

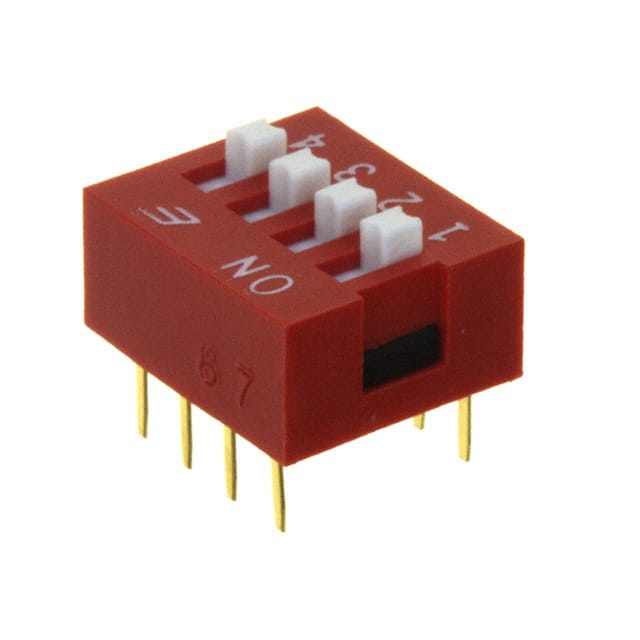

KAS1104ESWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
1,123 |
|
数据手册 |
KAS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KAS1112ESWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
3,252 |
|
数据手册 |
KAS | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAD10LHGTSWITCH SLIDE DIP SPST 0.1A 50V E-Switch |
3,916 |
|
数据手册 |
KAD | Tube | Active | SPST | 10 | 100mA | 50VDC | Slide (Standard) | Raised | - | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
