DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDS-16S-7229-C-JSMTSWITCH ROTARY DIP HEX 0.1A 50V |
312 |
|
数据手册 |
RDS-7229-JSMT | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
A6S-2104-PHSWITCH SLIDE DIP SPST 0.025A 24V |
1,918 |
|
数据手册 |
A6S-H | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

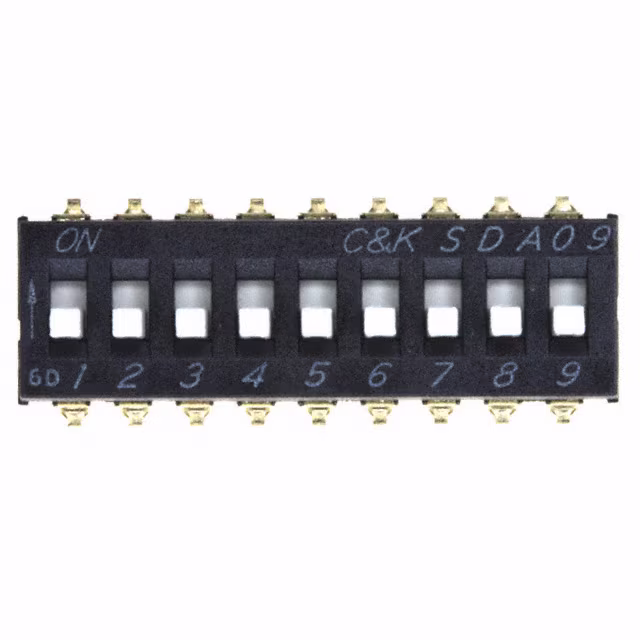

SDA09H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
888 |
|
数据手册 |
SDA | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

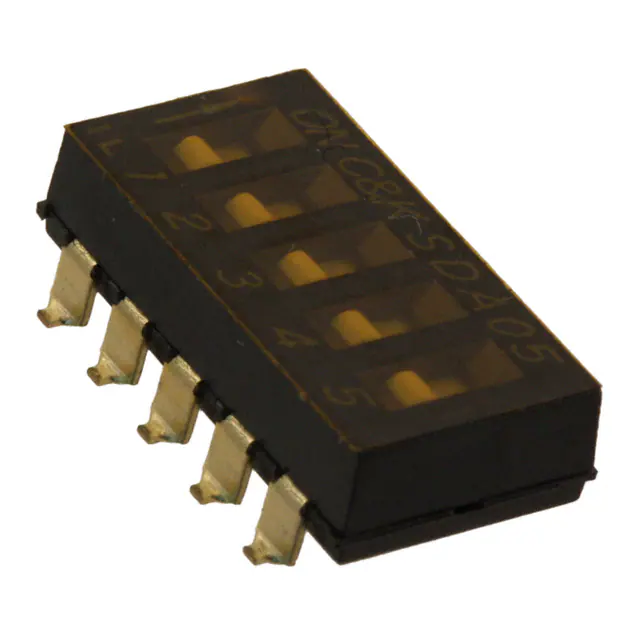

SDA05H0SBSWITCH SLIDE DIP SPST 0.025A 24V |
513 |
|
数据手册 |
SDA | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
RDS-16S-74385-SMT-TRSWITCH ROTARY DIP HEX 0.1A 42V |
414 |
|
数据手册 |
RDS-74385-SMT | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
RDS-16S-7229-S-JSMTSWITCH ROTARY DIP HEX 0.1A 50V |
348 |
|
数据手册 |
RDS-7229-JSMT | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
A6TN-0104SWITCH SLIDE DIP SPST 0.025A 24V |
119 |
|
数据手册 |
A6TN | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
RDS-10S-74385-45A-SMT-TRSWITCH ROTARY DIP BCD 0.1A 42V |
204 |
|
数据手册 |
RDS-74385-45A-SMT | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.329" (8.35mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
RD10RB6RTTSWITCH ROTARY DIP BCD 0.15A 50V |
326 |
|
数据手册 |
RD10 | Tube | Active | BCD | 6 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
A6HF-6102-PSWITCH SLIDE DIP SPST 0.025A 24V |
1,509 |
|
数据手册 |
A6HF | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
SD06H0BSWITCH SLIDE DIP SPST 0.1A 25V |
220 |
|
数据手册 |
SD | Tube | Active | SPST | 6 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

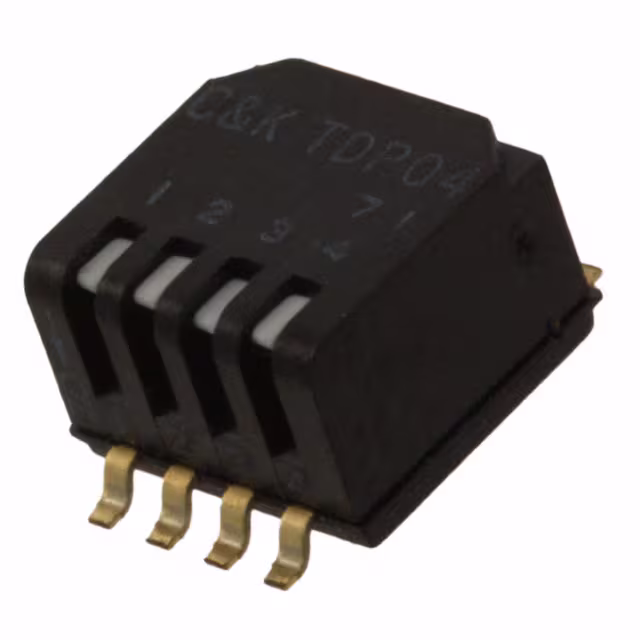

TDP04H0SBD1SWITCH PIANO DIP SPST 0.025A 24V |
482 |
|
数据手册 |
TDP | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.161" (4.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
418121160812SWITCH SLIDE DIP SPST 0.025A 24V |
673 |
|
数据手册 |
WS-DISV | Tape & Reel (TR) | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
S-2010ASWITCH ROTARY DIP BCD 0.1A 5V |
2,815 |
|
数据手册 |
S-2000A | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

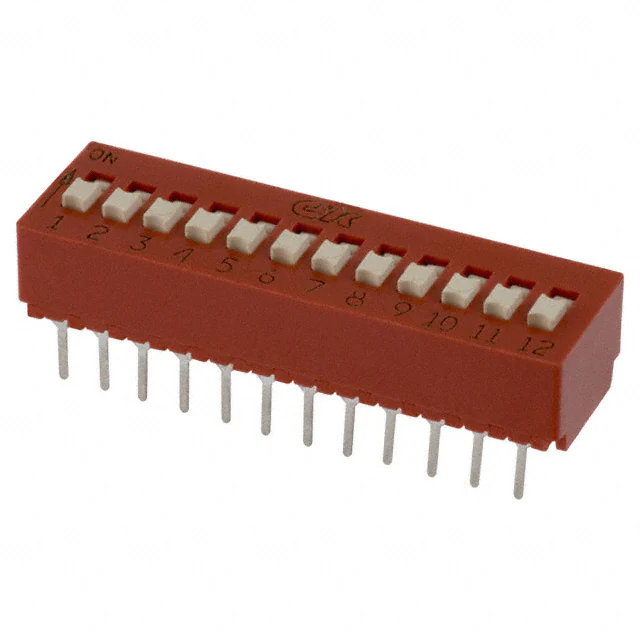

BD12SWITCH SLIDE DIP SPST 0.1A 5V |
521 |
|
数据手册 |
BD | Tube | Active | SPST | 12 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
EDSP04SGLNNTU04SWITCH PIANO DIP SPST 0.025A 24V |
1,034 |
|
数据手册 |
EDSP | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
A6S-7104-HSWITCH SLIDE DIP SPST 0.025A 24V |
424 |
|
数据手册 |
A6S-H | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

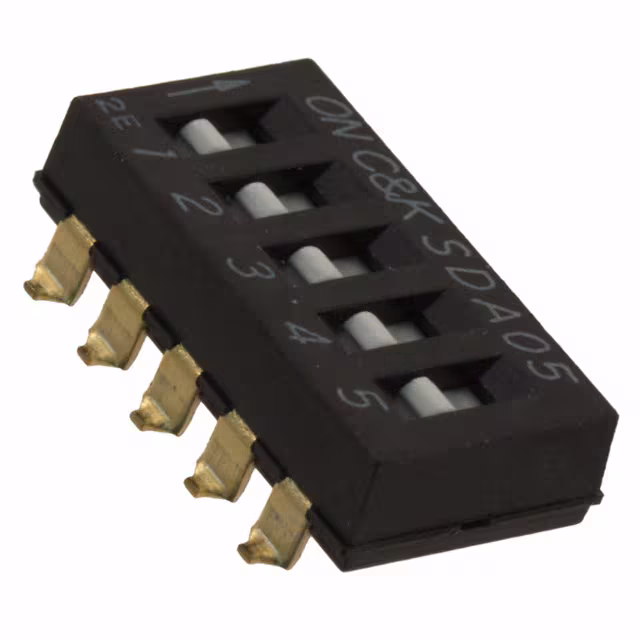

SDA05H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
240 |
|
数据手册 |
SDA | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDA10H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
217 |
|
数据手册 |
SDA | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6H-6102SWITCH SLIDE DIP SPST 0.025A 24V |
5,964 |
|
数据手册 |
A6H | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 70°C |
