DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6SR-6104SWITCH PIANO DIP SPST 0.025A 24V |
126 |
|
数据手册 |
A6SR | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
1-1825006-1SWITCH SLIDE DIP SPST 0.025A 24V |
11,378 |
|
数据手册 |
GDS | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
SDA06H0BDSWITCH SLIDE DIP SPST 0.025A 24V |
1,246 |
|
数据手册 |
SDA | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

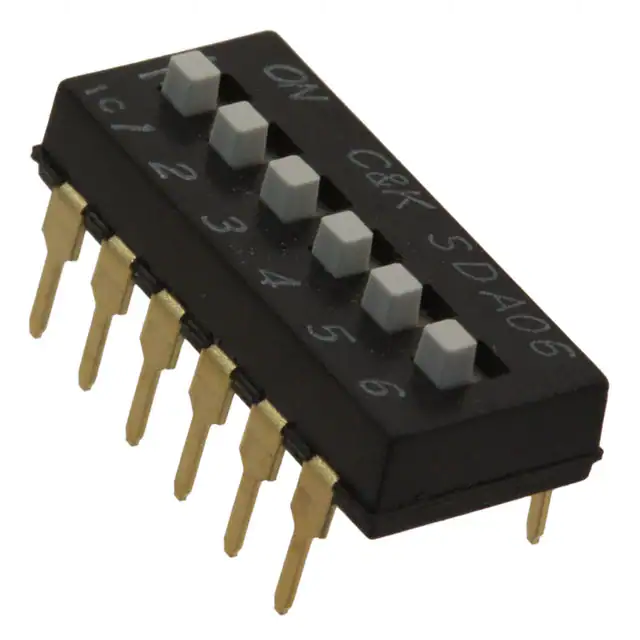

SDA06H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
874 |
|
数据手册 |
SDA | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6S-3101-PHSWITCH SLIDE DIP SPST 0.025A 24V |
438 |
|
数据手册 |
A6S-H | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
SD04H0BSWITCH SLIDE DIP SPST 0.1A 25V |
167 |
|
数据手册 |
SD | Tube | Active | SPST | 4 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6SN-4101SWITCH SLIDE DIP SPST 0.025A 24V |
8,916 |
|
数据手册 |
A6SN | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
SD02H0BSWITCH SLIDE DIP SPST 0.1A 25V |
1,581 |
|
数据手册 |
SD | Tube | Active | SPST | 2 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
418121160805SWITCH SLIDE DIP SPST 0.025A 24V |
1,518 |
|
数据手册 |
WS-DISV | Tape & Reel (TR) | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SDA04H0BSWITCH SLIDE DIP SPST 0.025A 24V |
1,000 |
|
数据手册 |
SDA | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
CFS-0800MCSWITCH SLIDE DIP SPST 0.1A 6V |
557 |
|
数据手册 |
CFS | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6RS-102RF-PSWITCH ROTARY DIP BCD 0.025A 24V |
1,582 |
|
数据手册 |
A6RS | Tape & Reel (TR) | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | - | 0.185" (4.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
RDS-10S-7229-R-JSMTSWITCH ROTARY DIP BCD 0.1A 50V |
1,589 |
|
数据手册 |
RDS-7229-JSMT | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
RDS-10S-7229-S-JSMTSWITCH ROTARY DIP BCD 0.1A 50V |
1,536 |
|
数据手册 |
RDS-7229-JSMT | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
A6T-8104SWITCH SLIDE DIP SPST 0.025A 24V |
7,601 |
|
数据手册 |
A6T | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
DS05-127-2-10BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
2,633 |
|
数据手册 |
DS05-127-SMT | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.094" (2.40mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
SD03H0BSWITCH SLIDE DIP SPST 0.1A 25V |
1,154 |
|
数据手册 |
SD | Tube | Active | SPST | 3 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
S-8031SW ROTARY DIP OCT COMP 0.1A 5V |
3,110 |
|
数据手册 |
S-8000 | Bulk | Active | Octal Complement | 8 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.283" (7.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
A6E-2101-NSWITCH SLIDE DIP SPST 0.025A 24V |
130 |
|
数据手册 |
A6E-N | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-5104-HSWITCH SLIDE DIP SPST 0.025A 24V |
1,143 |
|
数据手册 |
A6S-H | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
