DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAS1108ESWITCH SLIDE DIP SPST 0.025A 24V |
414 |
|
数据手册 |
KAS | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
206-12RASTSWITCH SLIDE DIP SPST 0.05A 24V |
380 |
|
数据手册 |
206RA | Tube | Active | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
KAP1108ESWITCH PIANO DIP SPST 0.025A 24V |
2,632 |
|
数据手册 |
KAP | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDA01H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
1,068 |
|
数据手册 |
SDA | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

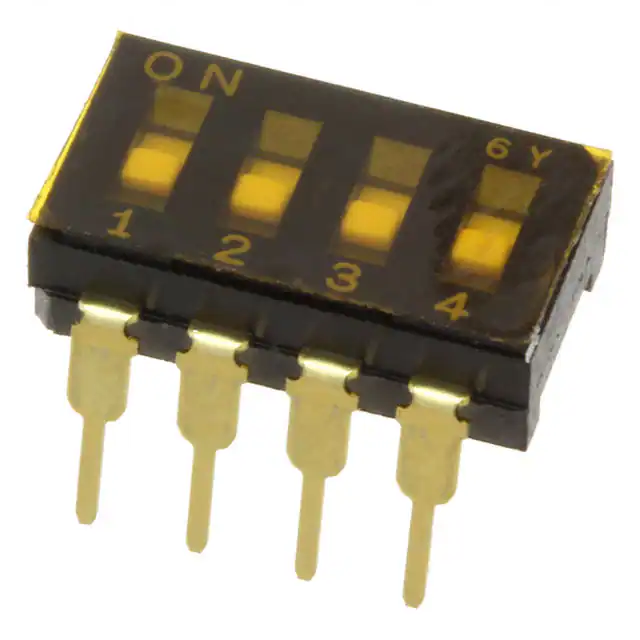

CFS-0400MCSWITCH SLIDE DIP SPST 0.1A 6V |
250 |
|
数据手册 |
CFS | Tube | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
CFS-0400MASWITCH SLIDE DIP SPST 0.1A 6V |
139 |
|
数据手册 |
CFS | Tube | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6T-2102SWITCH SLIDE DIP SPST 0.025A 24V |
259 |
|
数据手册 |
A6T | Tray | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6TN-6104SWITCH SLIDE DIP SPST 0.025A 24V |
164 |
|
数据手册 |
A6TN | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
DS03-254-12BESWITCH SLIDE DIP SPST 0.025A 24V |
336 |
|
数据手册 |
DS03-254 | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KAE09LGGTSWITCH SLIDE DIP SPST 0.025A 24V |
2,242 |
|
数据手册 |
KAE | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
7814Z-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V |
443 |
|
数据手册 |
7814 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.226" (5.74mm) | Surface Mount, Right Angle | J Lead | - | No | - | -55°C ~ 125°C |
|
KAS2106ETSWITCH SLIDE DIP SPST 0.025A 24V |
444 |
|
数据手册 |
KAS | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6T-4104SWITCH SLIDE DIP SPST 0.025A 24V |
227 |
|
数据手册 |
A6T | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
EDS04SGRNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
2,042 |
|
数据手册 |
EDS | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
A6SN-2104-PSWITCH SLIDE DIP SPST 0.025A 24V |
548 |
|
数据手册 |
A6SN | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6T-5101SWITCH SLIDE DIP SPST 0.025A 24V |
210 |
|
数据手册 |
A6T | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
KAS2105ESWITCH SLIDE DIP SPST 0.025A 24V |
3,560 |
|
数据手册 |
KAS | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
EDS08SGNNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
829 |
|
数据手册 |
EDS | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.150" (3.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
A6TN-8101SWITCH SLIDE DIP SPST 0.025A 24V |
107 |
|
数据手册 |
A6TN | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
DMR08TTRSWITCH SLIDE DIP SPST 0.025A 24V |
3,481 |
|
数据手册 |
DM | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
