DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EDS02SGRNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
917 |
|
数据手册 |
EDS | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
DS04-254-1-10BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
328 |
|
数据手册 |
DS04-254-SMT | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS03-254-10BESWITCH SLIDE DIP SPST 0.025A 24V |
472 |
|
数据手册 |
DS03-254 | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0800TBSWITCH SLIDE DIP SPST 0.1A 6V |
2,512 |
|
数据手册 |
CFS | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
EDS06SNNNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
765 |
|
数据手册 |
EDS | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
CFS-0601MCSWITCH SLIDE DIP SPST 0.1A 6V |
252 |
|
数据手册 |
CFS | Tube | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

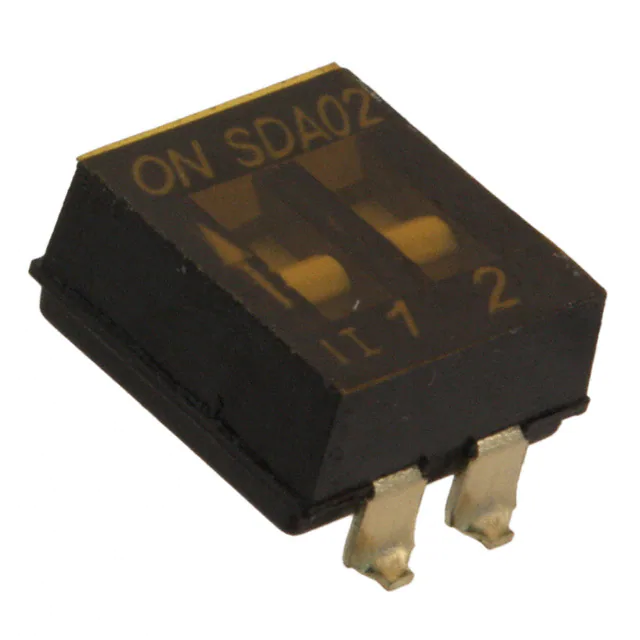

SDA02H0SBSWITCH SLIDE DIP SPST 0.025A 24V |
7,479 |
|
数据手册 |
SDA | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
206-10RASTSWITCH SLIDE DIP SPST 0.05A 24V |
975 |
|
数据手册 |
206RA | Tube | Active | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
DMR04TSWITCH SLIDE DIP SPST 0.025A 24V |
544 |
|
数据手册 |
DM | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
TDP02H1SBD1RSWITCH PIANO DIP SPST 0.025A 24V |
20,918 |
|
数据手册 |
TDP | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.161" (4.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
CFS-0300MASWITCH SLIDE DIP SPST 0.1A 6V |
1,468 |
|
数据手册 |
CFS | Tube | Active | SPST | 3 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
CFS-0402MASWITCH SLIDE DIP SPST 0.1A 6V |
340 |
|
数据手册 |
CFS | Tube | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.178" (4.52mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

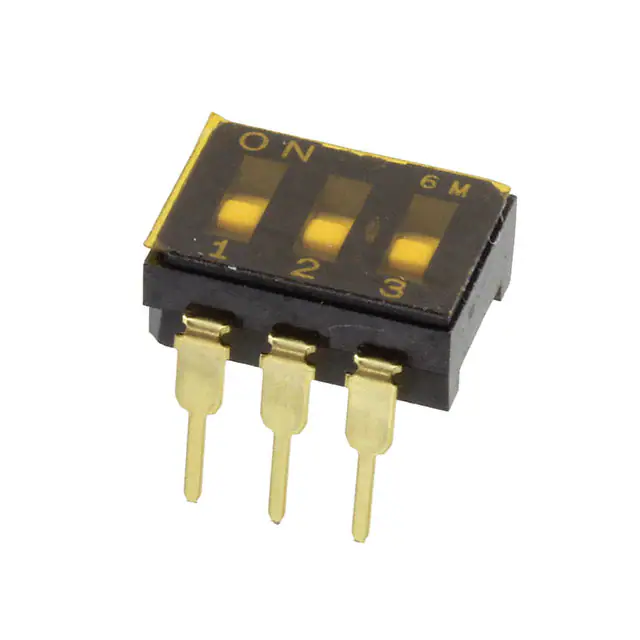

CFS-0300MCSWITCH SLIDE DIP SPST 0.1A 6V |
220 |
|
数据手册 |
CFS | Tube | Active | SPST | 3 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6SR-2104-PSWITCH PIANO DIP SPST 0.025A 24V |
356 |
|
数据手册 |
A6SR | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6SR-2101-PSWITCH PIANO DIP SPST 0.025A 24V |
224 |
|
数据手册 |
A6SR | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
KAE08TGGTSWITCH SLIDE DIP SPST 0.025A 24V |
696 |
|
数据手册 |
KAE | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
ADE10A04SWITCH SLIDE DIP SPST 0.1A 24V |
1,216 |
|
数据手册 |
ADE | Tube | Active | SPST | 10 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
KE04RTGRSWITCH SLIDE DIP SPST 0.025A 24V |
1,047 |
|
数据手册 |
KE | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
KAS1106RTSWITCH SLIDE DIP SPST 0.025A 24V |
1,036 |
|
数据手册 |
KAS | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
A6SR-4101-PSWITCH PIANO DIP SPST 0.025A 24V |
564 |
|
数据手册 |
A6SR | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
