DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDS-16S-74R45A-254-DSWITCH ROTARY DIP HEX 0.1A 42V |
582 |
|
数据手册 |
RDS-74R45A-254 | Tube | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
SD08H0SBSWITCH SLIDE DIP SPST 0.1A 25V |
8,737 |
|
数据手册 |
SD | Tube | Active | SPST | 8 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6S-8101-HSWITCH SLIDE DIP SPST 0.025A 24V |
224 |
|
数据手册 |
A6S-H | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

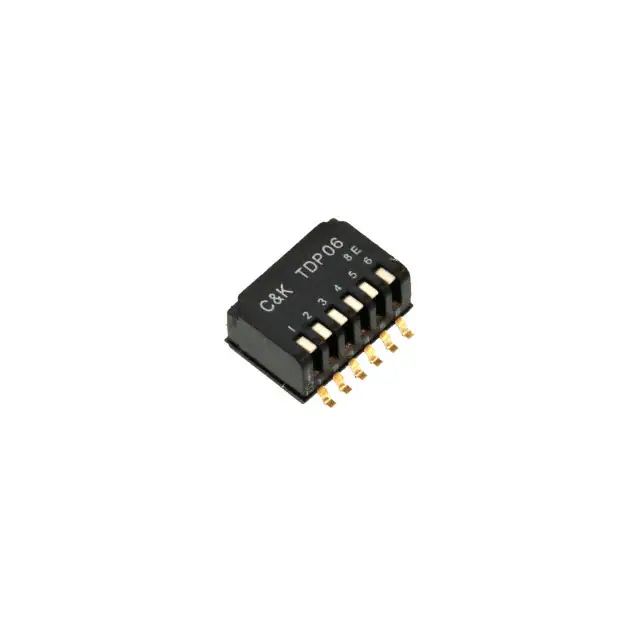

TDP06H0SB1SWITCH PIANO DIP SPST 0.025A 24V |
1,200 |
|
数据手册 |
TDP | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.164" (4.17mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
78RB02TSWITCH SLIDE DIP SPST 0.15A 30V |
189 |
|
数据手册 |
78 | Tube | Active | SPST | 2 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78B03TSWITCH SLIDE DIP SPST 0.15A 30V |
5,410 |
|
数据手册 |
78 | Tube | Active | SPST | 3 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
RTE1600R44SWITCH ROTARY DIP HEX 0.1A 30V |
1,707 |
|
数据手册 |
RTE | Tube | Active | Hexadecimal | 16 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | - | Through Hole, Reverse | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
EDSP06SGLNNTR04SWITCH PIANO DIP SPST 0.025A 24V |
1,484 |
|
数据手册 |
EDSP | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

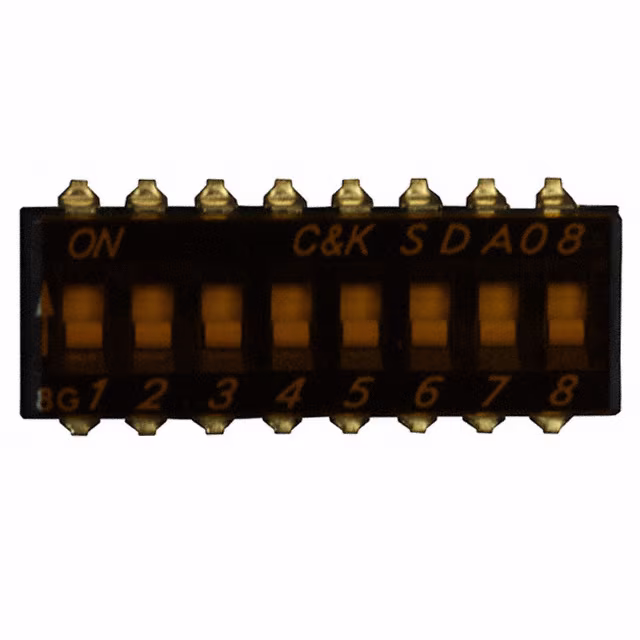

SDA08H0SBSWITCH SLIDE DIP SPST 0.025A 24V |
1,261 |
|
数据手册 |
SDA | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SMRR7016C-1ESWITCH ROTARY DIP HEX 0.03A 15V |
1,017 |
|
数据手册 |
SMR | Tape & Reel (TR) | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.319" (8.10mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
A6E-5101-NSWITCH SLIDE DIP SPST 0.025A 24V |
125 |
|
数据手册 |
A6E-N | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-0104-PMHSWITCH SLIDE DIP SPST 0.025A 24V |
1,188 |
|
数据手册 |
A6S-H | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
5161390-4SWITCH STANDARD DIP SPST |
559 |
|
数据手册 |
- | Box | Active | SPST | 4 | - | - | Standard | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
A6HF-8102-PSWITCH SLIDE DIP SPST 0.025A 24V |
2,489 |
|
数据手册 |
A6HF | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
RDTCR08P1TSW ROTARY DIP OCTAL 0.15A 42V |
3,519 |
|
数据手册 |
RDT | Tube | Active | Octal | 8 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

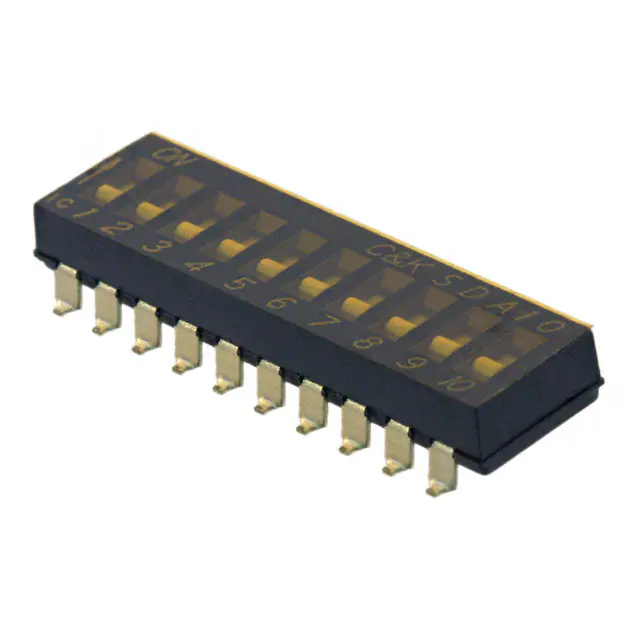

SDA10H0SBRSWITCH SLIDE DIP SPST 0.025A 24V |
868 |
|
数据手册 |
SDA | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
BPA06SBSWITCH PIANO DIP SPST 0.1A 5V |
1,756 |
|
数据手册 |
BPA | Tube | Active | SPST | 6 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
5435802-1SWITCH PIANO DIP SPST 0.025A 24V |
3,348 |
|
数据手册 |
7000 | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|

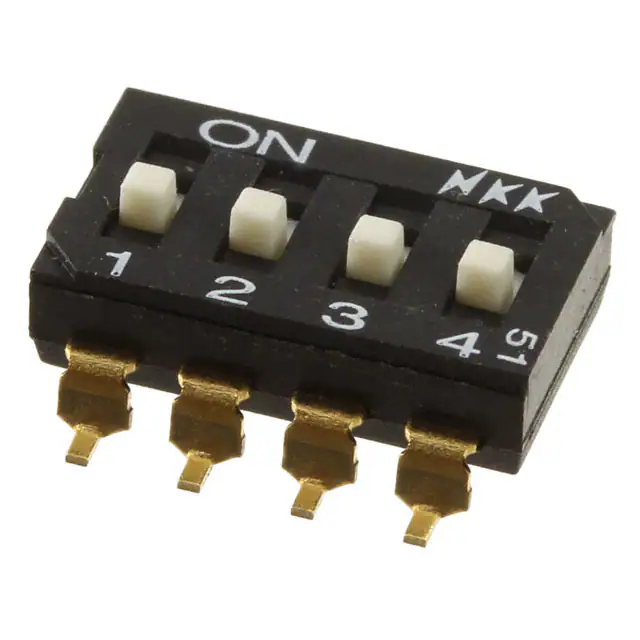

JS0204AP4-SSWITCH SLIDE DIP SPST 0.025A 24V |
1,704 |
|
数据手册 |
JS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
JS0204AP4SWITCH SLIDE DIP SPST 0.025A 24V |
136 |
|
数据手册 |
JS | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
