DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD05H0SBSWITCH SLIDE DIP SPST 0.1A 25V |
220 |
|
数据手册 |
SD | Tube | Active | SPST | 5 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
KAN1108RTSWITCH SLIDE DIP SPST 0.025A 24V |
1,084 |
|
数据手册 |
KAN | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
A6D-2100SWITCH SLIDE DIP SPST 0.03A 30V |
133 |
|
数据手册 |
A6D | Tube | Active | SPST | 2 | 30mA | 30VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|
TDP08H0SB1SWITCH PIANO DIP SPST 0.025A 24V |
11,503 |
|
数据手册 |
TDP | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.164" (4.17mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|

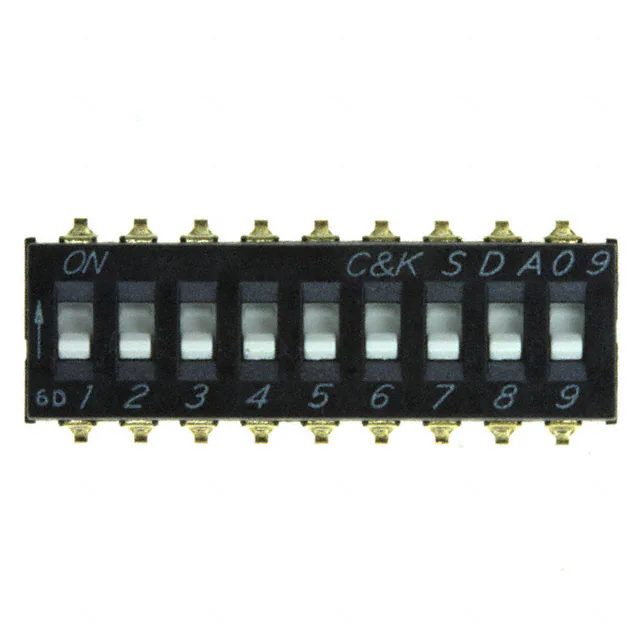

SDA09H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
1,264 |
|
数据手册 |
SDA | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78RB03STSWITCH SLIDE DIP SPST 0.15A 30V |
7,959 |
|
数据手册 |
78 | Tube | Active | SPST | 3 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
RTE1002V14SWITCH ROTARY DIP BCD 0.1A 30V |
1,490 |
|
数据手册 |
RTE | Bulk | Active | BCD | 10 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.335" (8.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
EDSP08SGLNNTR04SWITCH PIANO DIP SPST 0.025A 24V |
1,696 |
|
数据手册 |
EDSP | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
94HBB10WTSWITCH ROTARY DIP BCD 0.1A 50V |
2,137 |
|
数据手册 |
94H | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
BD07AVSWITCH SLIDE DIP SPST 0.1A 5V |
794 |
|
数据手册 |
BD | Tube | Active | SPST | 7 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RTE1000N14SWITCH ROTARY DIP BCD 0.1A 30V |
10,883 |
|
数据手册 |
RTE | Tube | Active | BCD | 10 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
78RB04STSWITCH SLIDE DIP SPST 0.15A 30V |
5,438 |
|
数据手册 |
78 | Tube | Active | SPST | 4 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76RSB03STSWITCH ROCKER DIP SPST 0.15A 30V |
4,482 |
|
数据手册 |
76 | Tube | Active | SPST | 3 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6HR-8104-PSWITCH PIANO DIP SPST 0.025A 24V |
2,768 |
|
数据手册 |
A6HR | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|

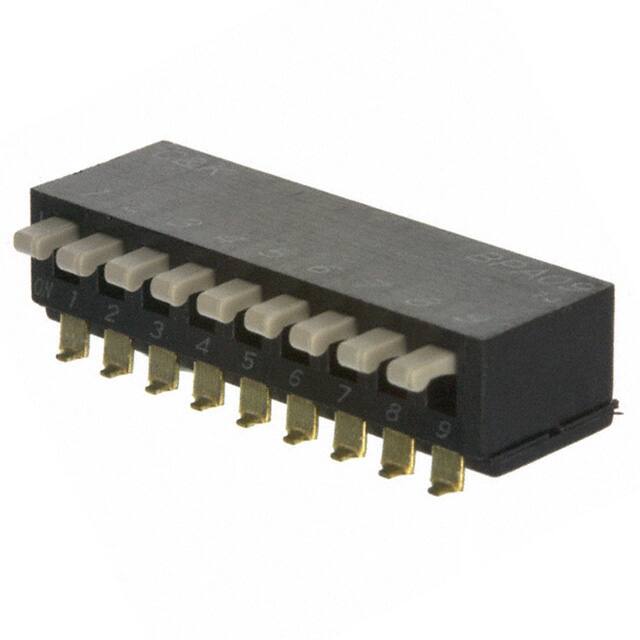

BPA09SBSWITCH PIANO DIP SPST 0.1A 5V |
848 |
|
数据手册 |
BPA | Tube | Active | SPST | 9 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

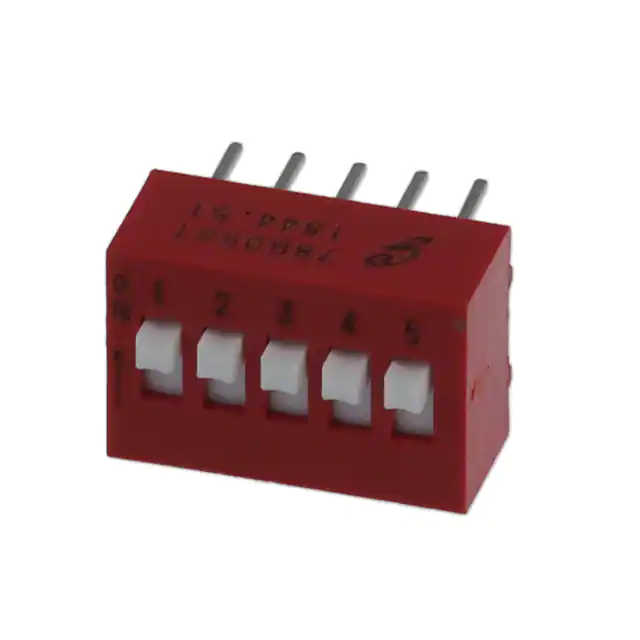

78B05STSWITCH SLIDE DIP SPST 0.15A 30V |
4,911 |
|
数据手册 |
78 | Tube | Active | SPST | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6D-7100SWITCH SLIDE DIP SPST 0.03A 30V |
108 |
|
数据手册 |
A6D | Tube | Active | SPST | 7 | 30mA | 30VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

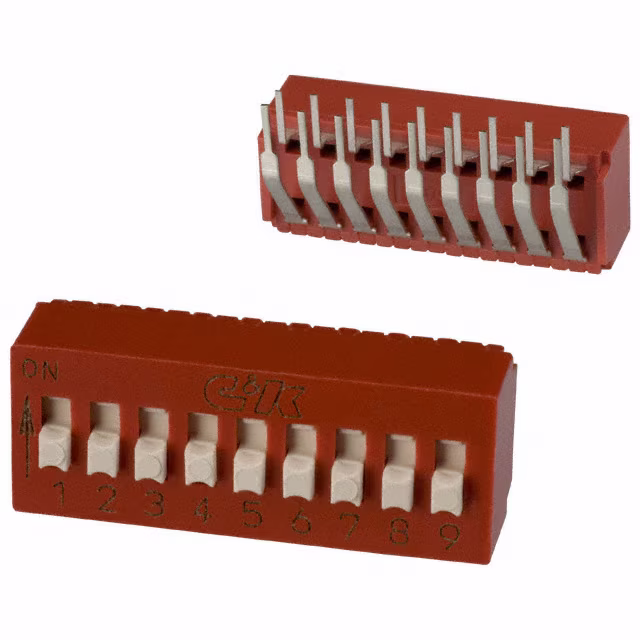

BD09AVSWITCH SLIDE DIP SPST 0.1A 5V |
445 |
|
数据手册 |
BD | Tube | Active | SPST | 9 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
SD08H1SBDSWITCH SLIDE DIP SPST 0.1A 25V |
1,677 |
|
数据手册 |
SD | Tube | Active | SPST | 8 | 100mA | 25VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
428521520816SWITCH ROTARY DIP HEX 0.15A 24V |
590 |
|
数据手册 |
WS-ROSV | Tape & Reel (TR) | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
