DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2-1437584-0SWITCH ROTARY DIP HEX 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
4,660 |
|
数据手册 |
DRD | Tube | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

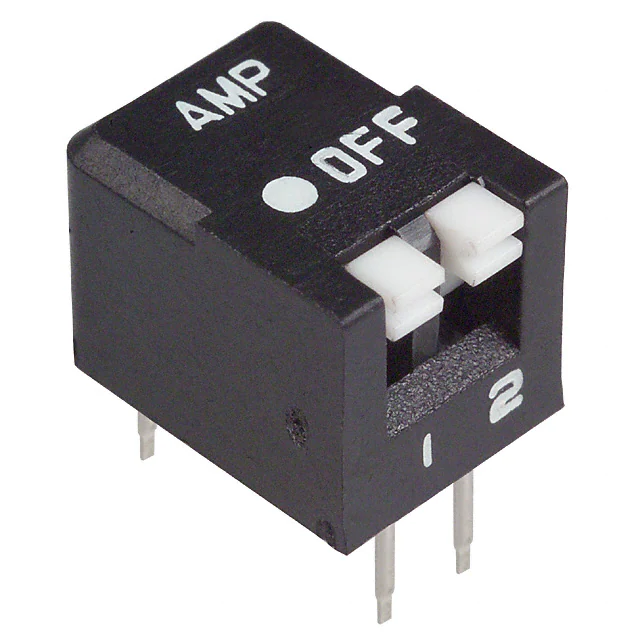

1-435802-0SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
1,045 |
|
数据手册 |
7000 | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
2-5435668-6SWITCH ROCKER DIP SPST 0.06A 5V TE Connectivity ALCOSWITCH Switches |
1,846 |
|
数据手册 |
7100 | Tube | Active | SPST | 2 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|

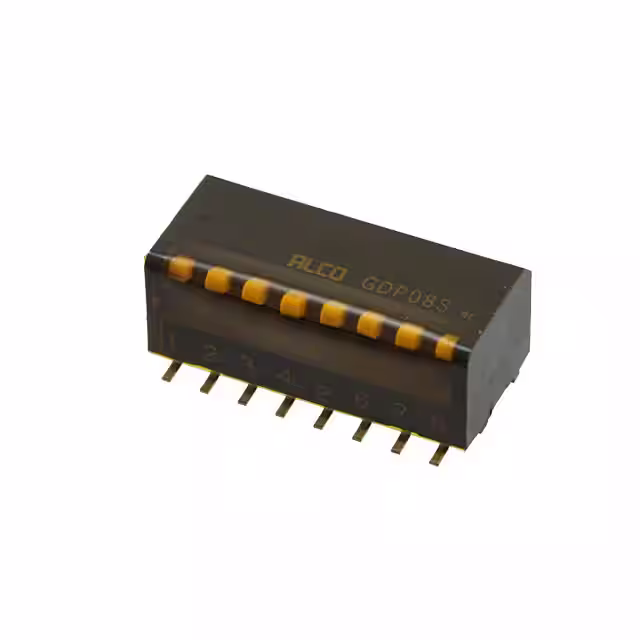

1-1571998-6SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
3,959 |
|
数据手册 |
GDP | Tape & Reel (TR) | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.343" (8.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
DPU04SWITCH PIANO DIP SPST 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
4,673 |
|
数据手册 |
DPU | Tube | Obsolete | SPST | 4 | 0.4VA | 20VDC | Piano | Raised | Copper Alloy | Gold | 0.370" (9.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
8-435626-6SW ROCKER DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
2,062 |
|
数据手册 |
7000 | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
3-435668-3SWITCH ROCKER DIP SPST 0.06A 5V TE Connectivity ALCOSWITCH Switches |
3,475 |
|
数据手册 |
7100 | Tube | Active | SPST | 3 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|

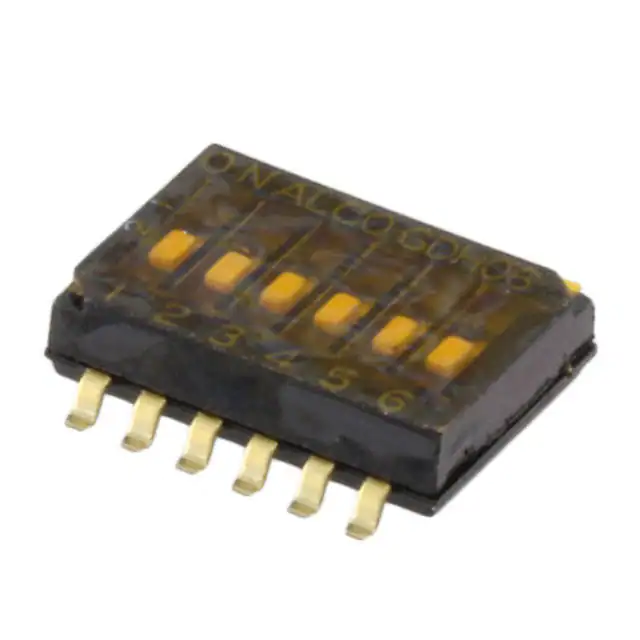

1571983-9SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
1,585 |
|
数据手册 |
GDH | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
|
SSH10SWITCH SLIDE DIP SPST 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
4,530 |
|
数据手册 |
SSH | Tube | Obsolete | SPST | 10 | 0.4VA | 20VAC/DC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
|
DRM16RASWITCH ROTARY DIP HEX 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
3,572 |
|
数据手册 |
DR | Tube | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
