DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

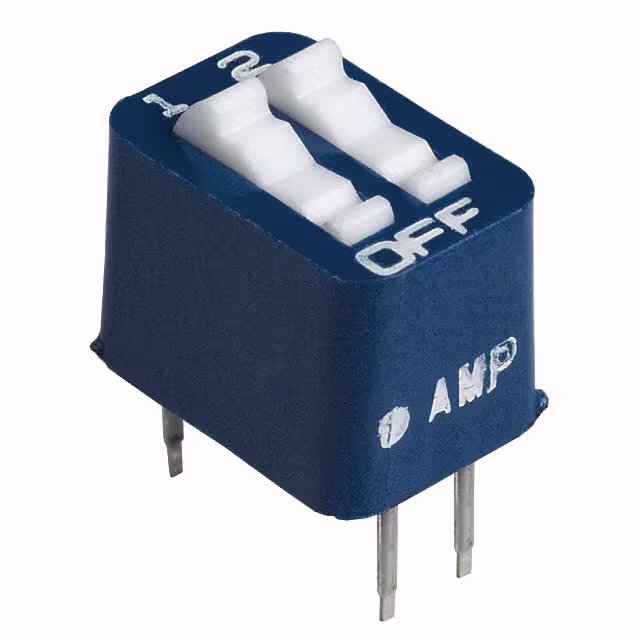

2-435640-9SWITCH ROCKER DIP SPST 0.06A 5V TE Connectivity ALCOSWITCH Switches |
4,490 |
|
数据手册 |
7100 | Tube | Active | SPST | 2 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
3-1825033-1SWITCH ROTARY DIP HEX 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,157 |
|
数据手册 |
DR | Tube | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
5-1825059-1SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
4,207 |
|
数据手册 |
ADF | Tape & Reel (TR) | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.203" (5.15mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
2-2396234-9SWITCH ROTARY DIP 16P VERT SMD TE Connectivity ALCOSWITCH Switches |
4,979 |
|
数据手册 |
MRSS | Bulk | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
2396234-9SWITCH ROTARY DIP HEX COMP 0.4VA TE Connectivity ALCOSWITCH Switches |
3,275 |
|
数据手册 |
MRD | Bulk | Active | Hexadecimal Complement | - | 0.4VA | - | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | - | - | - | - | - | - | - |
|
|
2-2396234-4SWITCH ROTARY DIP 10P VERT SMD TE Connectivity ALCOSWITCH Switches |
4,440 |
|
数据手册 |
MRSS | Bulk | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

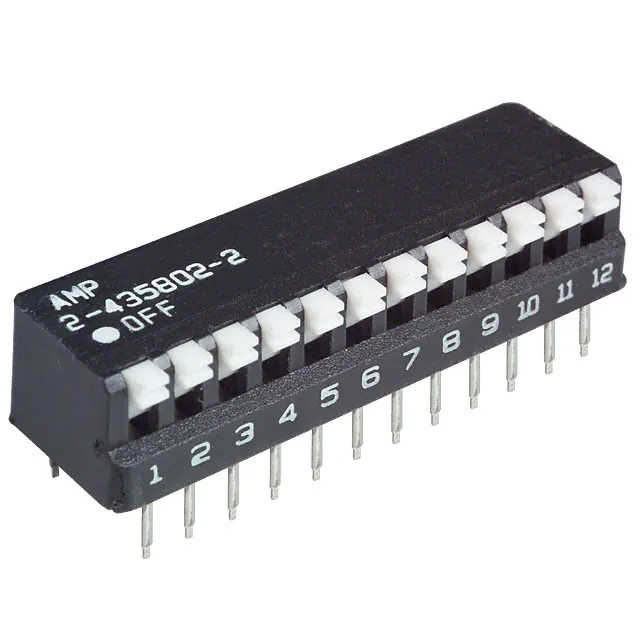

2-435802-2SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
1,787 |
|
数据手册 |
7000 | Tube | Active | SPST | 12 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
DRD10CRASW ROTARY DIP BCD COMP 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
4,150 |
|
数据手册 |
DRD | Tube | Obsolete | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
DRW10SWITCH ROTARY DIP BCD 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
3,052 |
|
数据手册 |
DR | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
DRW16SWITCH ROTARY DIP HEX 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
1,085 |
|
数据手册 |
DR | Tube | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
