DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

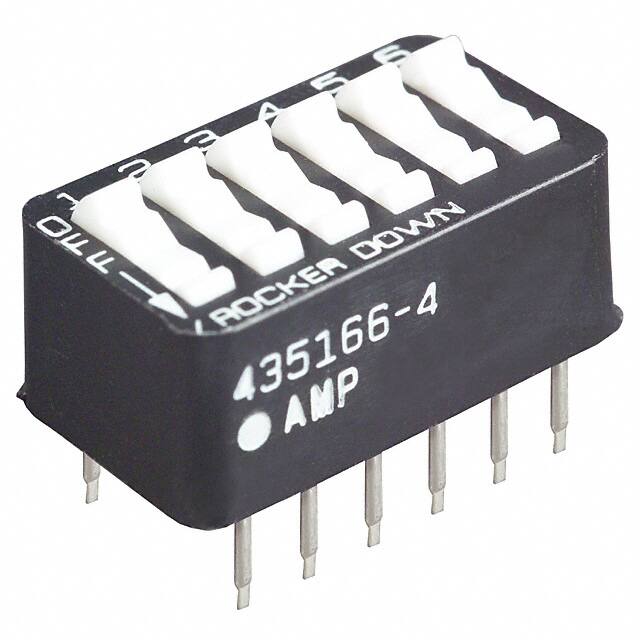

5435166-4SWITCH ROCKER DIP SPST TE Connectivity ALCOSWITCH Switches |
3,469 |
|
数据手册 |
7000 | Tape & Reel (TR) | Active | SPST | 6 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
GDR10SW ROCKER DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
4,686 |
|
数据手册 |
GDR | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
GDH06SSWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
2,621 |
|
数据手册 |
GDH | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
|
GDB10SW ROCKER DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
2,436 |
|
数据手册 |
GDB | Bulk | Obsolete | SPST | 10 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.169" (4.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
DRD10RAESWITCH ROTARY DIP BCD 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
4,691 |
|
数据手册 |
DRD | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
MRD16STRSWITCH ROTARY DIP HEX 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
3,942 |
|
数据手册 |
MRD | Tape & Reel (TR) | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.130" (3.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Process Sealed | -10°C ~ 85°C |
|
|
SSH08SWITCH SLIDE DIP SPST 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
4,762 |
|
数据手册 |
SSH | Tube | Obsolete | SPST | 8 | 0.4VA | 20VAC/DC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
GDH08SSWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
2,198 |
|
数据手册 |
GDH | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|

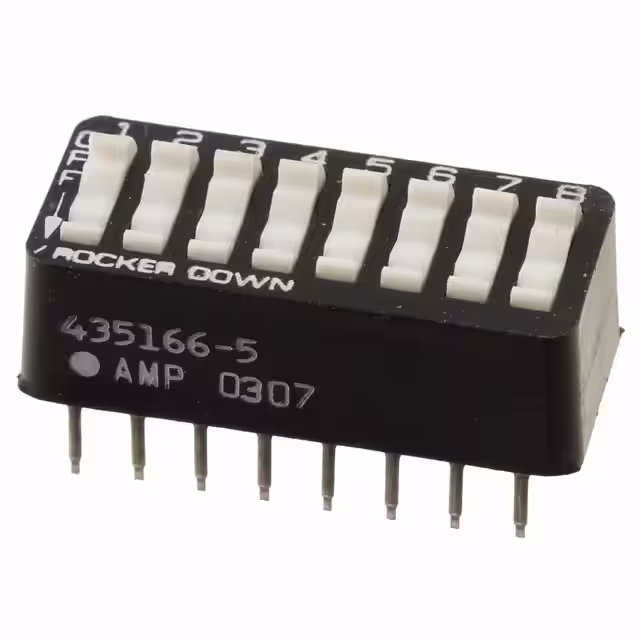

435166-5SW ROCKER DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
1,829 |
|
数据手册 |
7000 | Bulk | Obsolete | SPST | 8 | 25mA | 24VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
2-5435640-9SWITCH ROCKER DIP SPST 0.06A 5V TE Connectivity ALCOSWITCH Switches |
1,200 |
|
数据手册 |
7100 | Tube | Active | SPST | 2 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
