DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2-435802-1SWITCH PIANO DIP SPST TE Connectivity ALCOSWITCH Switches |
3,423 |
|
数据手册 |
7000 | Tube | Active | SPST | 11 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
4-435166-7SW ROCKER DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
2,127 |
|
数据手册 |
7000 | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|
2-5435802-2SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
2,479 |
|
数据手册 |
7000 | Tube | Obsolete | SPST | 12 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
1825153-2SWITCH SLIDE DIP SPST 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,398 |
|
数据手册 |
SSH | Tube | Obsolete | SPST | 4 | 0.4VA | 20VAC/DC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
2396234-5SWITCH ROTARY DIP 10P VERT TH TE Connectivity ALCOSWITCH Switches |
2,612 |
|
数据手册 |
MRSS | Bulk | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
3-2396234-0SWITCH ROTARY DIP 16P VERT TH TE Connectivity ALCOSWITCH Switches |
2,854 |
|
数据手册 |
MRSS | Bulk | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
2-2396234-5SWITCH ROTARY DIP 10P VERT TH TE Connectivity ALCOSWITCH Switches |
1,433 |
|
数据手册 |
MRSS | Bulk | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

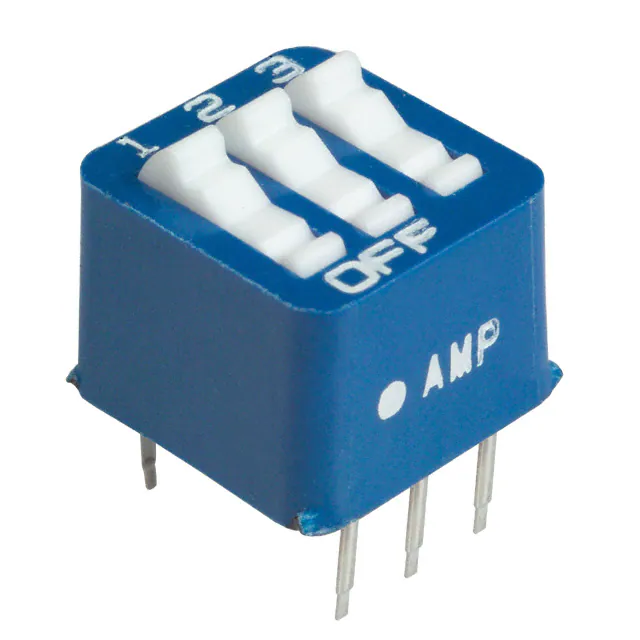

3-435640-0SWITCH ROCKER DIP SPST 0.06A 5V TE Connectivity ALCOSWITCH Switches |
4,077 |
|
数据手册 |
7100 | Tube | Active | SPST | 3 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
DRW16CSW ROTARY DIP HEX COMP 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
4,109 |
|
数据手册 |
DR | Tube | Obsolete | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
DRM10SWITCH ROTARY DIP BCD 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,449 |
|
数据手册 |
DR | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
