上传BOM单
DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ARE083.3KSWITCH SLIDE DIP SPST 0.1A 24V TE Connectivity ALCOSWITCH Switches |
1,968 |
|
数据手册 |
ARE | Tube | Obsolete | SPST | 8 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
DPU04DSSWITCH PIANO DIP DPST 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
1,452 |
|
数据手册 |
DPU | Tube | Obsolete | DPST | 4 | 0.4VA | 20VDC | Piano | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
3-5435668-3SWITCH ROCKER DIP SPST 0.06A 5V TE Connectivity ALCOSWITCH Switches |
3,599 |
|
数据手册 |
7100 | Tube | Active | SPST | 3 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
DRM16CRASW ROTARY DIP HEX COMP 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
4,150 |
|
数据手册 |
DR | Tube | Obsolete | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|

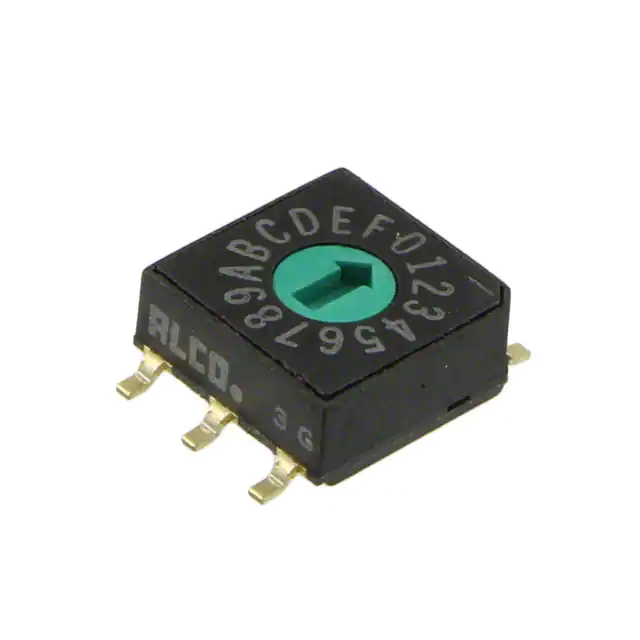

2-1825013-0SWITCH ROTARY DIP HEX 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
3,552 |
|
数据手册 |
MRD | Tape & Reel (TR) | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Process Sealed | -30°C ~ 85°C |
|
|
147353-2SWITCH ROCKER DIP SPST TE Connectivity ALCOSWITCH Switches |
4,697 |
|
数据手册 |
7100 | Tube | Active | SPST | 5 | - | - | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
2-435469-1SW TOGGLE DIP DPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
3,450 |
|
数据手册 |
7000 | Tube | Obsolete | DPST | 1 | 25mA | 24VDC | Toggle | Raised | Copper Alloy | Gold | 0.460" (11.68mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
DRW10CSW ROTARY DIP BCD COMP 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
1,354 |
|
数据手册 |
DR | Tube | Obsolete | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
1977105-1SWITCH SLIDE DIP SPST 0.01A 5V TE Connectivity ALCOSWITCH Switches |
1,718 |
|
数据手册 |
STR | Tube | Obsolete | SPST | 2 | 10mA | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.244" (6.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
435802-2SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
1,009 |
|
数据手册 |
7000 | Tube | Active | SPST | 3 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
