箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

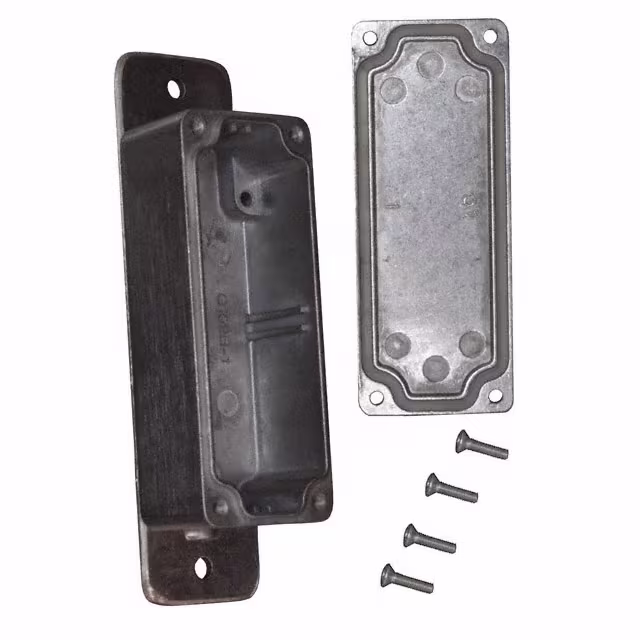

AN-2800BOX ALUM NATURAL 3.53"L X 1.41"W Bud Industries |
4,861 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 3.531" L x 1.409" W (89.69mm x 35.79mm) | 1.180" (29.97mm) | 4.98in² (32.1cm²) | Cover Included | Metal, Aluminum | Natural | 0.110" (2.79mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|
AN-2800-BBOX ALUM BLACK 3.53"L X 1.41"W Bud Industries |
3,589 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 3.531" L x 1.409" W (89.69mm x 35.79mm) | 1.180" (29.97mm) | 4.98in² (32.1cm²) | Cover Included | Metal, Aluminum | Black | 0.110" (2.79mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|

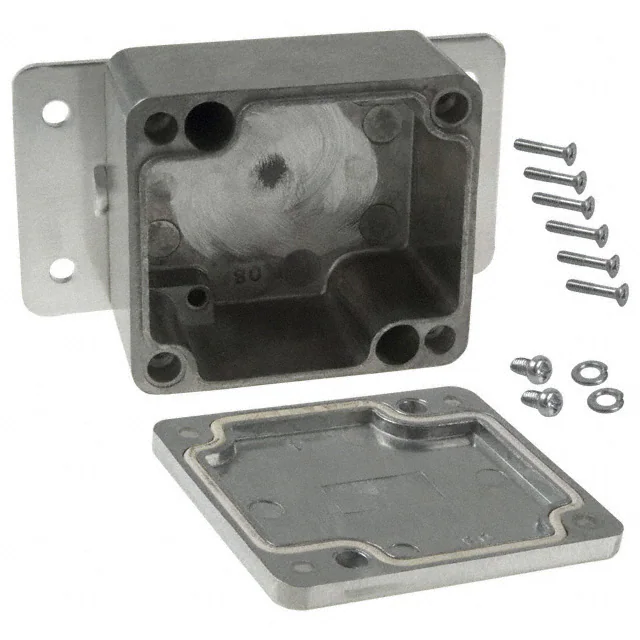

AN-2801BOX ALUM NATURAL 2.52"L X 2.27"W Bud Industries |
2,364 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 2.520" L x 2.270" W (64.01mm x 57.66mm) | 1.378" (35.00mm) | 5.72in² (36.9cm²) | Cover Included | Metal, Aluminum | Natural | 0.130" (3.30mm) | Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|
AN-2801-BBOX ALUM BLACK 2.52"L X 2.27"W Bud Industries |
4,054 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 2.520" L x 2.270" W (64.01mm x 57.66mm) | 1.378" (35.00mm) | 5.72in² (36.9cm²) | Cover Included | Metal, Aluminum | Black | 0.130" (3.30mm) | Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|
AN-2802BOX ALUM NATURAL 4.55"L X 2.58"W Bud Industries |
4,179 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 4.545" L x 2.578" W (115.44mm x 65.48mm) | 1.185" (30.10mm) | 11.7in² (75cm²) | Cover Included | Metal, Aluminum | Natural | 0.130" (3.30mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|

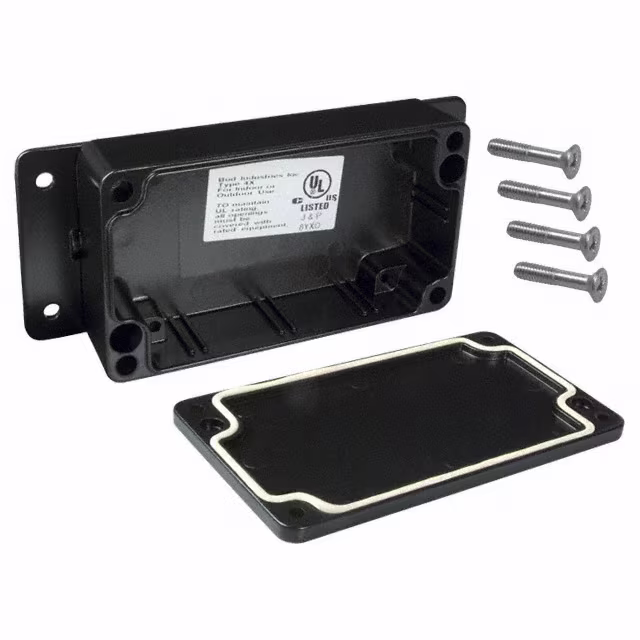

AN-2802-BBOX ALUM BLACK 4.55"L X 2.58"W Bud Industries |
3,732 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 4.545" L x 2.578" W (115.44mm x 65.48mm) | 1.185" (30.10mm) | 11.7in² (75cm²) | Cover Included | Metal, Aluminum | Black | 0.130" (3.30mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|

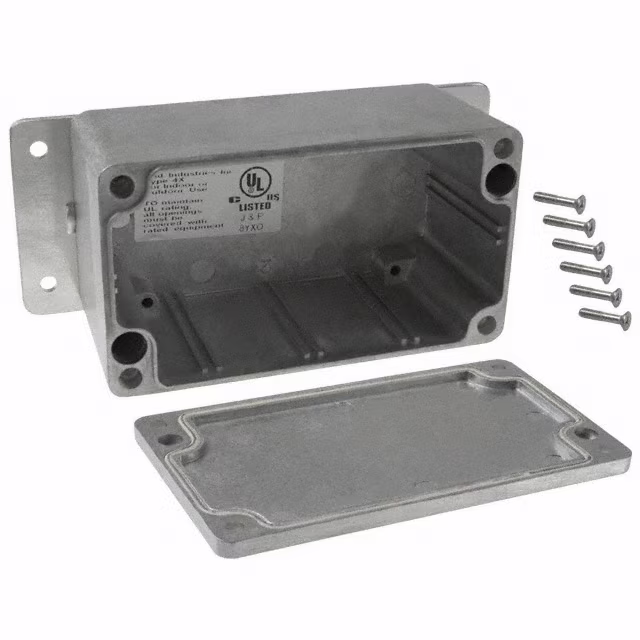

AN-2803BOX ALUM NATURAL 4.55"L X 2.58"W Bud Industries |
1,126 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 4.545" L x 2.578" W (115.44mm x 65.48mm) | 2.165" (55.00mm) | 11.7in² (75cm²) | Cover Included | Metal, Aluminum | Natural | 0.130" (3.30mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|
AN-2803-BBOX ALUM BLACK 4.55"L X 2.58"W Bud Industries |
1,433 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 4.545" L x 2.578" W (115.44mm x 65.48mm) | 2.165" (55.00mm) | 11.7in² (75cm²) | Cover Included | Metal, Aluminum | Black | 0.130" (3.30mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|

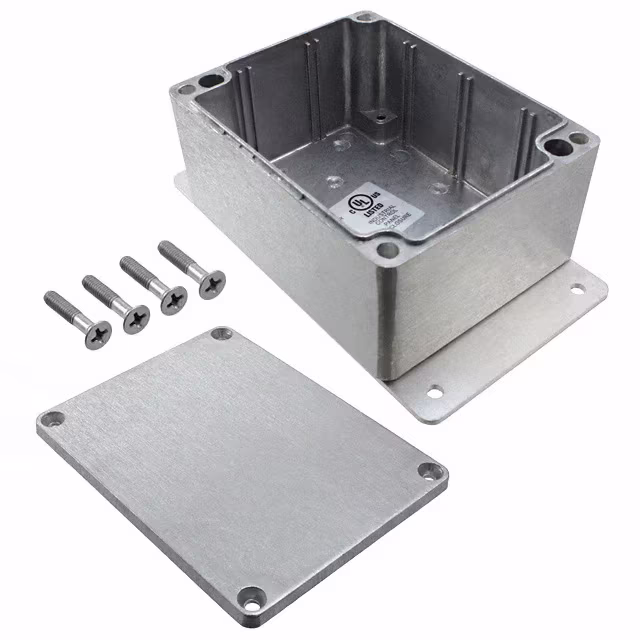

AN-2804BOX ALUM NATURAL 4.54"L X 3.54"W Bud Industries |
2,787 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 4.535" L x 3.543" W (115.19mm x 89.99mm) | 2.165" (55.00mm) | 16.1in² (104cm²) | Cover Included | Metal, Aluminum | Natural | 0.130" (3.30mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|

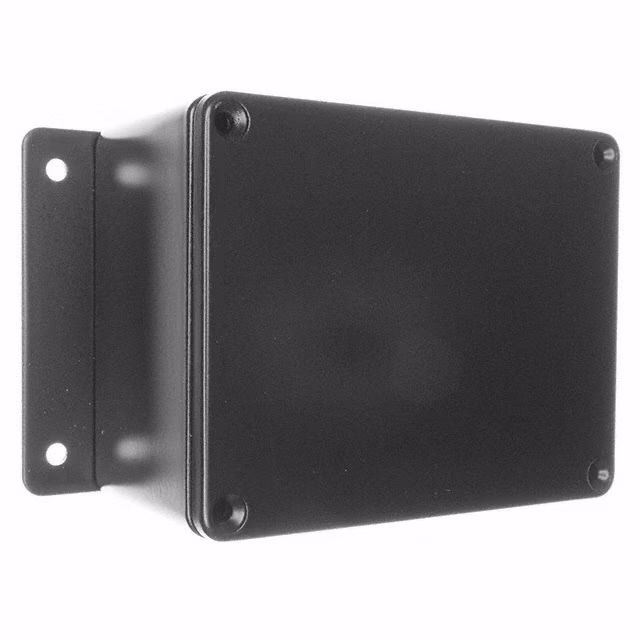

AN-2804-BBOX ALUM BLACK 4.54"L X 3.54"W Bud Industries |
4,638 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 4.535" L x 3.543" W (115.19mm x 89.99mm) | 2.165" (55.00mm) | 16.1in² (104cm²) | Cover Included | Metal, Aluminum | Black | 0.130" (3.30mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
