上传BOM单
箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AN-1305-GBOX ALUM GRAY 5.83"L X 4.25"W Bud Industries |
1,073 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 5.830" L x 4.252" W (148.08mm x 108.00mm) | 2.950" (74.93mm) | 24.8in² (160cm²) | Cover Included | Metal, Aluminum | Gray | 0.130" (3.30mm) | Card Guides, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|

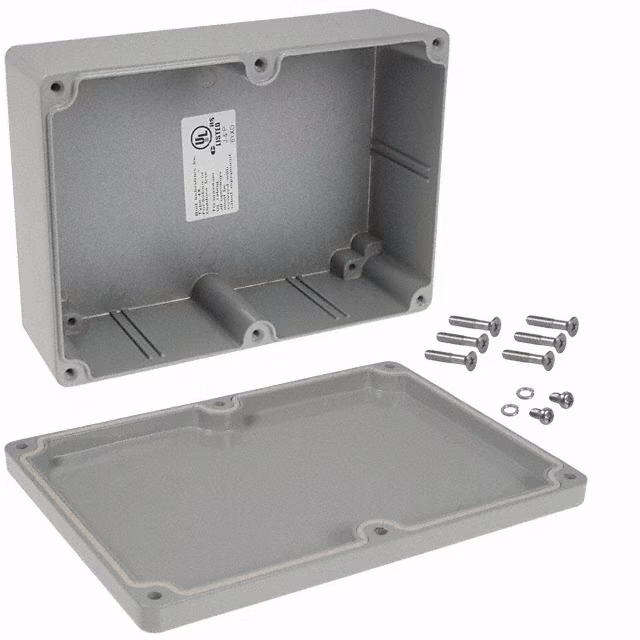

AN-1306-GBOX ALUM GRAY 6.73"L X 4.67"W Bud Industries |
1,151 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 6.730" L x 4.670" W (170.94mm x 118.62mm) | 2.170" (55.12mm) | 31.4in² (203cm²) | Cover Included | Metal, Aluminum | Gray | 0.130" (3.30mm) | Card Guides, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|

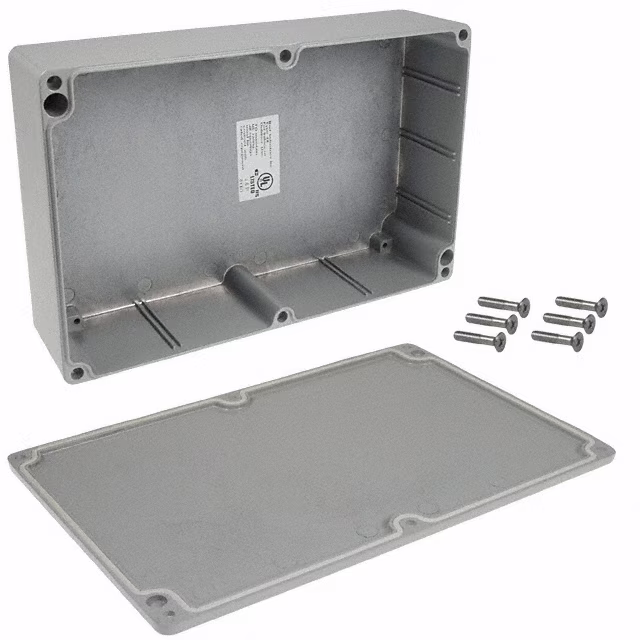

AN-1307-GBOX ALUM GRAY 8.76"L X 5.76"W Bud Industries |
1,537 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 8.764" L x 5.758" W (222.61mm x 146.25mm) | 2.177" (55.30mm) | 50.5in² (326cm²) | Cover Included | Metal, Aluminum | Gray | 0.120" (3.05mm) | Card Guides, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|
AN-1300-GBOX ALUM GRAY 3.53"L X 1.41"W Bud Industries |
3,233 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 3.531" L x 1.409" W (89.69mm x 35.79mm) | 1.180" (29.97mm) | 4.98in² (32.1cm²) | Cover Included | Metal, Aluminum | Gray | 0.110" (2.79mm) | Card Guides, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|
KB-13200BOX ALUM GRAY/WHT 7.22"LX5.75"W Bud Industries |
2,556 |
|
数据手册 |
- | Bulk | Obsolete | Box | 7.218" L x 5.750" W (183.34mm x 146.05mm) | 2.468" (62.69mm) | 41.5in² (268cm²) | Slanted Top | Metal, Aluminum | Gray, White | 0.090" (2.29mm) | - | - | - |
|
|
KB-13201BOX ALUM GRAY/WHT 12.844"L X 7"W Bud Industries |
2,080 |
|
数据手册 |
- | Bulk | Obsolete | Box | 12.844" L x 7.000" W (326.24mm x 177.80mm) | 2.750" (69.85mm) | 89.9in² (580cm²) | Slanted Top | Metal, Aluminum | Gray, White | 0.090" (2.29mm) | - | - | - |
|
|
KB-13202BOX ALUM GRAY/WHT 17.468"L X 9"W Bud Industries |
1,734 |
|
数据手册 |
- | Bulk | Obsolete | Box | 17.468" L x 9.000" W (443.69mm x 228.60mm) | 3.000" (76.20mm) | 157in² (1013cm²) | Slanted Top | Metal, Aluminum | Gray, White | 0.090" (2.29mm) | - | - | - |
|
|
NBB-15258BOX PLAS GRAY 28.915"L X 21.04"W Bud Industries |
1,428 |
|
数据手册 |
NBB | - | Obsolete | Box | 28.915" L x 21.035" W (734.44mm x 534.29mm) | 9.865" (250.57mm) | 608in² (3923cm²) | Hinged Door, Lid | Plastic, PBT/PC Blend | Gray | 0.170" (4.32mm) | Non-Metallic Hinges, PCB Supports | IP66, NEMA 1,2,3,3R,4,4X,12,13 | UL94 5VA |
|
|
NBE-10558BOX ABS/PC 28.915"L X 21.04"W Bud Industries |
4,938 |
|
数据手册 |
NBE | - | Obsolete | Box | 28.915" L x 21.035" W (734.44mm x 534.29mm) | 9.866" (250.60mm) | 608in² (3923cm²) | Hinged Door, Lid | Plastic, ABS/PC Blend | Gray | - | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA, UL94 V-0 |
|
|
WM-5511CABINET STEEL WHITE 10"L X 4"W Bud Industries |
3,407 |
|
数据手册 |
- | Bulk | Obsolete | Cabinet | 10.000" L x 4.000" W (254.00mm x 101.60mm) | 8.000" (203.20mm) | 40.0in² (258cm²) | Hinged Door, Lid | Metal, Steel | White | 20 Gauge | Wall Mount | - | - |
