箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

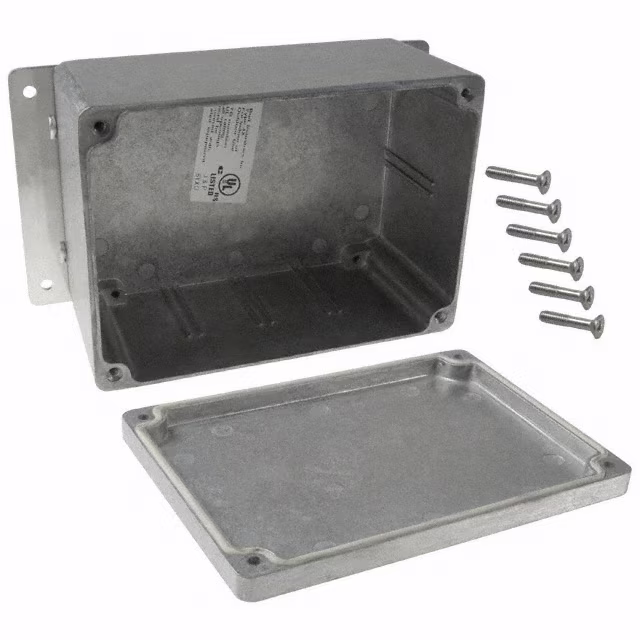

AN-2805BOX ALUM NATURAL 5.83"L X 4.25"W Bud Industries |
1,827 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 5.830" L x 4.252" W (148.08mm x 108.00mm) | 2.950" (74.93mm) | 24.8in² (160cm²) | Cover Included | Metal, Aluminum | Natural | 0.130" (3.30mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|

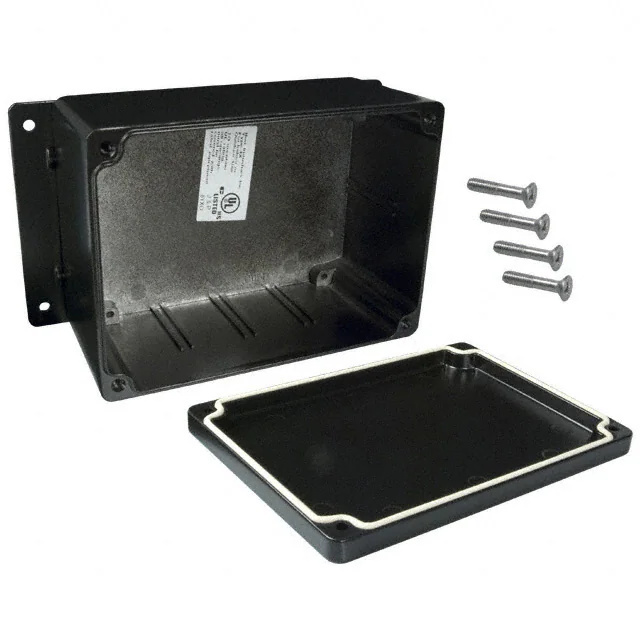

AN-2805-BBOX ALUM BLACK 5.83"L X 4.25"W Bud Industries |
2,224 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 5.830" L x 4.252" W (148.08mm x 108.00mm) | 2.950" (74.93mm) | 24.8in² (160cm²) | Cover Included | Metal, Aluminum | Black | 0.130" (3.30mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|

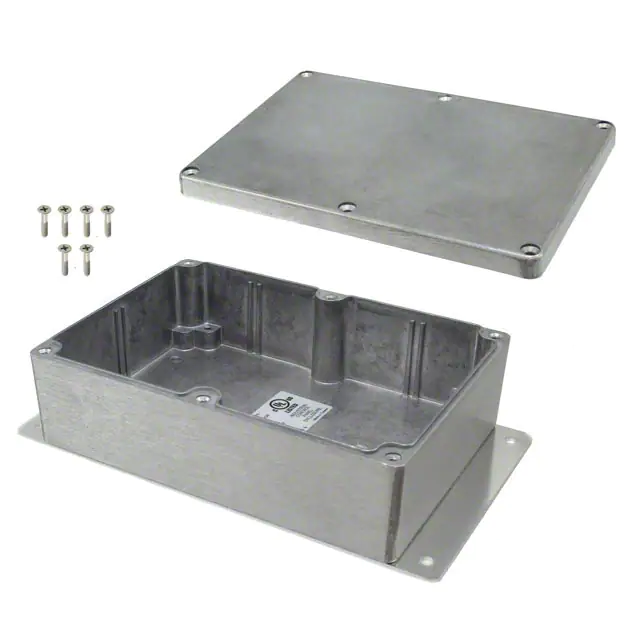

AN-2806BOX ALUM NATURAL 6.73"L X 4.67"W Bud Industries |
4,637 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 6.730" L x 4.670" W (170.94mm x 118.62mm) | 2.170" (55.12mm) | 31.4in² (203cm²) | Cover Included | Metal, Aluminum | Natural | 0.130" (3.30mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|

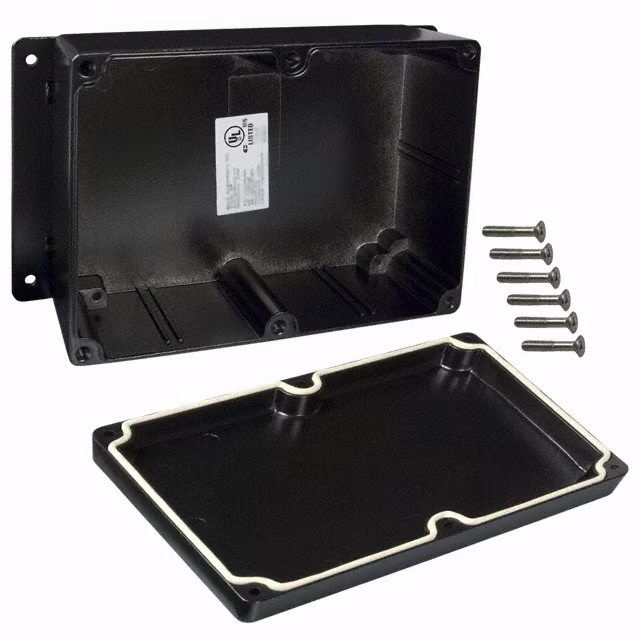

AN-2806-BBOX ALUM BLACK 6.73"L X 4.67"W Bud Industries |
3,514 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 6.730" L x 4.670" W (170.94mm x 118.62mm) | 2.170" (55.12mm) | 31.4in² (203cm²) | Cover Included | Metal, Aluminum | Black | 0.130" (3.30mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|

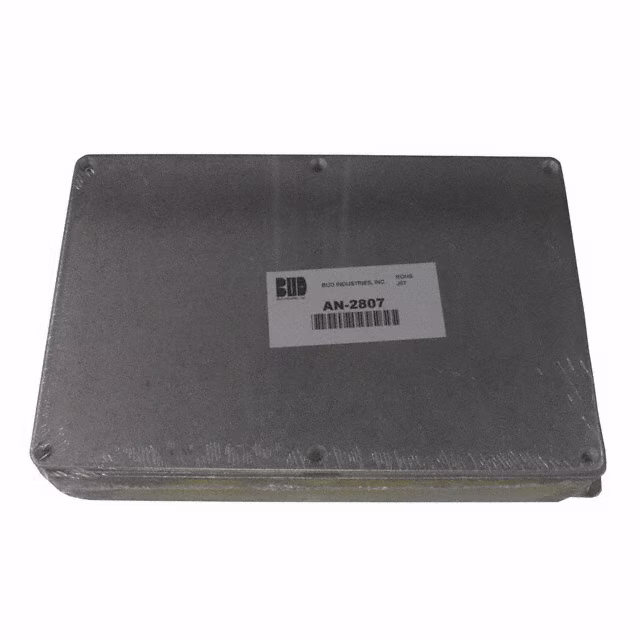

AN-2807BOX ALUM NATURAL 8.76"L X 5.76"W Bud Industries |
2,659 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 8.764" L x 5.758" W (222.61mm x 146.25mm) | 2.177" (55.30mm) | 50.5in² (326cm²) | Cover Included | Metal, Aluminum | Natural | 0.120" (3.05mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|

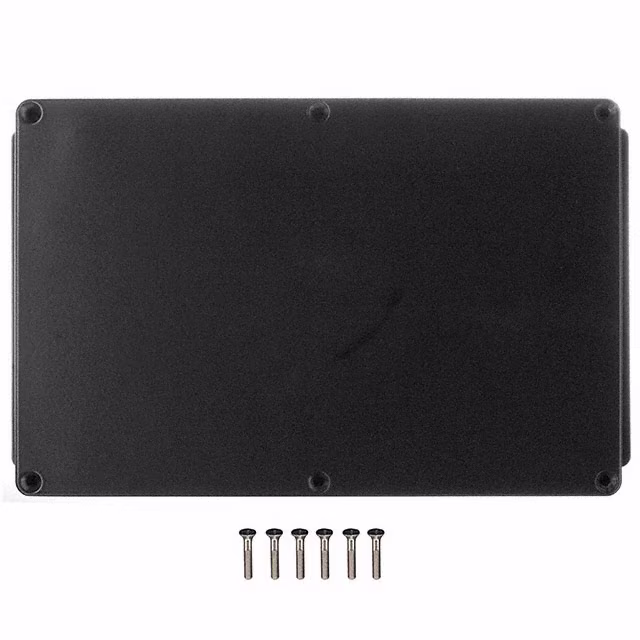

AN-2807-BBOX ALUM BLACK 8.76"L X 5.76"W Bud Industries |
1,753 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 8.764" L x 5.758" W (222.61mm x 146.25mm) | 2.177" (55.30mm) | 50.5in² (326cm²) | Cover Included | Metal, Aluminum | Black | 0.120" (3.05mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|

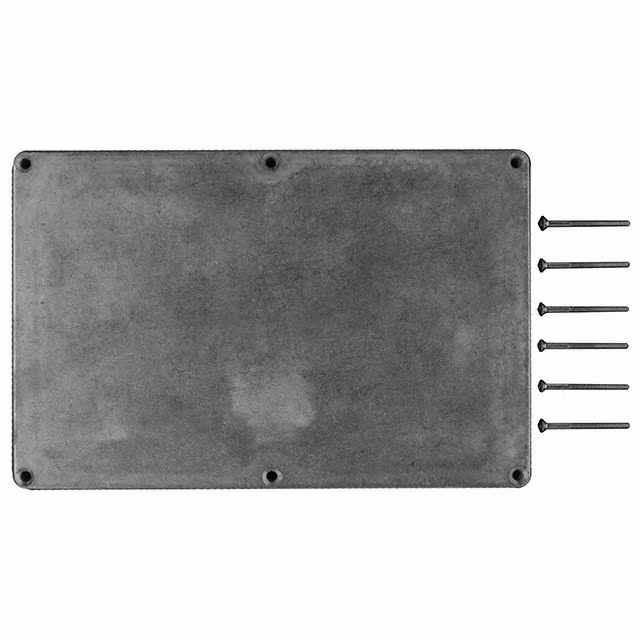

AN-2808BOX ALUM NATURAL 8.76"L X 5.76"W Bud Industries |
3,790 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 8.764" L x 5.758" W (222.61mm x 146.25mm) | 3.250" (82.55mm) | 50.5in² (326cm²) | Cover Included | Metal, Aluminum | Natural | 0.120" (3.05mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|

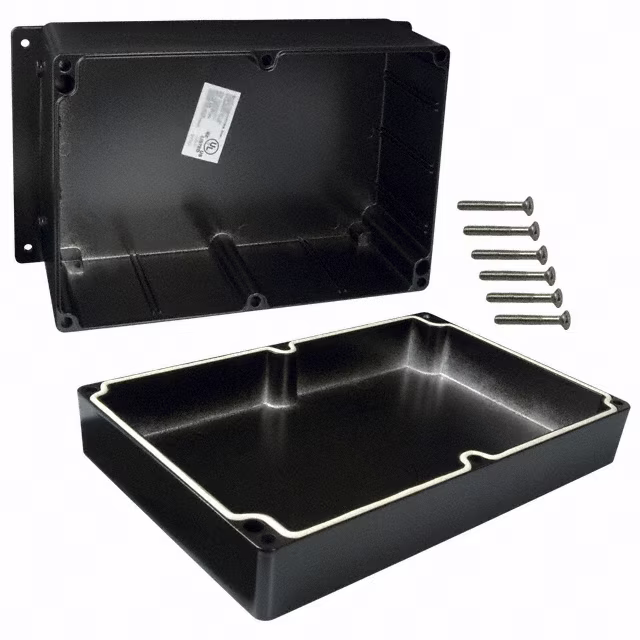

AN-2808-BBOX ALUM BLACK 8.76"L X 5.76"W Bud Industries |
4,691 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 8.764" L x 5.758" W (222.61mm x 146.25mm) | 3.250" (82.55mm) | 50.5in² (326cm²) | Cover Included | Metal, Aluminum | Black | 0.120" (3.05mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|

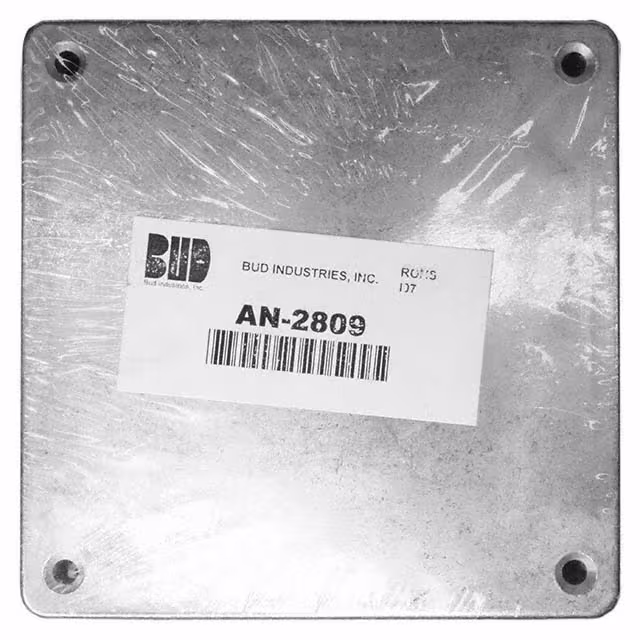

AN-2809BOX ALUM NATURAL 4.75"L X 4.75"W Bud Industries |
3,087 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 4.750" L x 4.750" W (120.65mm x 120.65mm) | 4.000" (101.60mm) | 22.6in² (146cm²) | Cover Included | Metal, Aluminum | Natural | 0.130" (3.30mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|

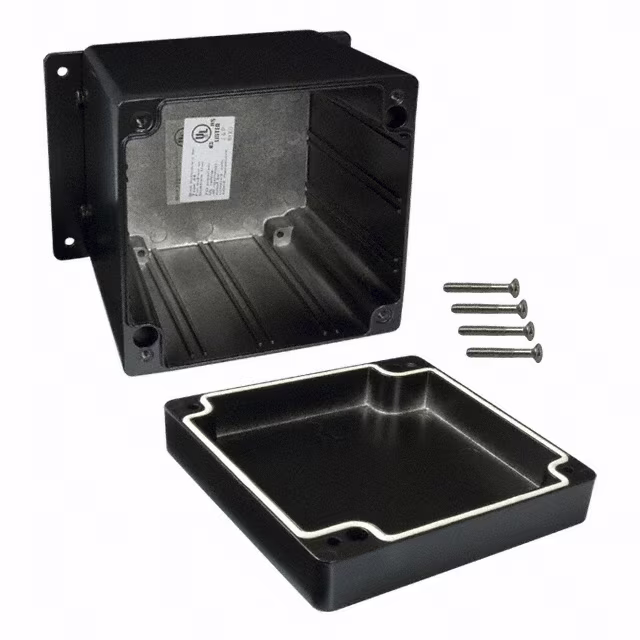

AN-2809-BBOX ALUM BLACK 4.75"L X 4.75"W Bud Industries |
4,359 |
|
数据手册 |
AN | Bulk | Discontinued at Digi-Key | Box | 4.750" L x 4.750" W (120.65mm x 120.65mm) | 4.000" (101.60mm) | 22.6in² (146cm²) | Cover Included | Metal, Aluminum | Black | 0.130" (3.30mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
