上传BOM单
箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBF-32444BOX ABS/PBT 27.55"L X 19.68"W Bud Industries |
2,559 |
|
数据手册 |
NBF | Bulk | Active | Box | 27.550" L x 19.680" W (699.77mm x 499.87mm) | 7.080" (179.83mm) | 542in² (3497cm²) | Hinged Door, Lid | Plastic, ABS/PBT Blend | Gray, Clear Cover/Door | 0.185" (4.70mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|

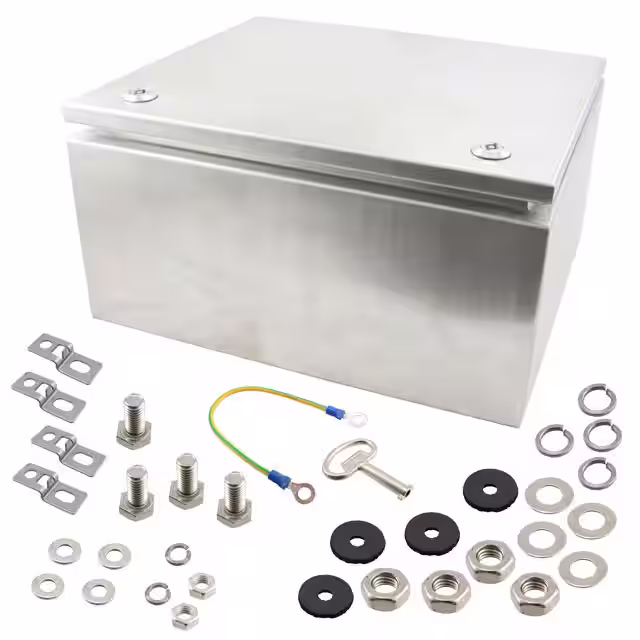

SNB-3743-SSBOX S STL NAT 15.75"L X 13.98"W Bud Industries |
1,066 |
|
数据手册 |
SNB | Bulk | Active | Box | 15.750" L x 13.980" W (400.05mm x 355.09mm) | 7.870" (199.90mm) | 220in² (1419cm²) | Hinged Door, Lid | Metal, Stainless Steel | Natural | 16 Gauge | Interior Panels, Mounting Flange | IP66, NEMA 1,2,4,4X, UL-508 | - |
|
|
NBF-32346BOX ABS/PBT 27.55"L X 19.68"W Bud Industries |
4,368 |
|
数据手册 |
NBF | Bulk | Active | Box | 27.550" L x 19.680" W (699.77mm x 499.87mm) | 9.840" (249.94mm) | 542in² (3497cm²) | Hinged Door, Lid | Plastic, ABS/PBT Blend | Gray | 0.185" (4.70mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|

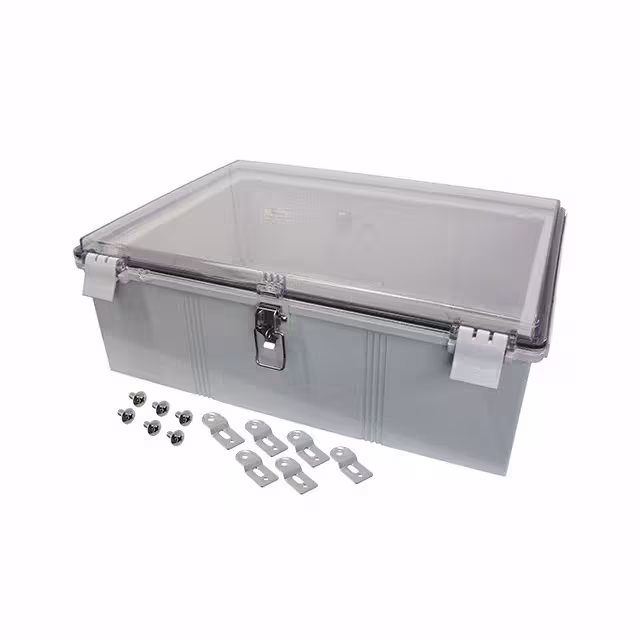

NBF-32446BOX ABS/PBT 27.55"L X 19.68"W Bud Industries |
4,829 |
|
数据手册 |
NBF | Bulk | Active | Box | 27.550" L x 19.680" W (699.77mm x 499.87mm) | 9.840" (249.94mm) | 542in² (3497cm²) | Hinged Door, Lid | Plastic, ABS/PBT Blend | Gray, Clear Cover/Door | 0.185" (4.70mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|

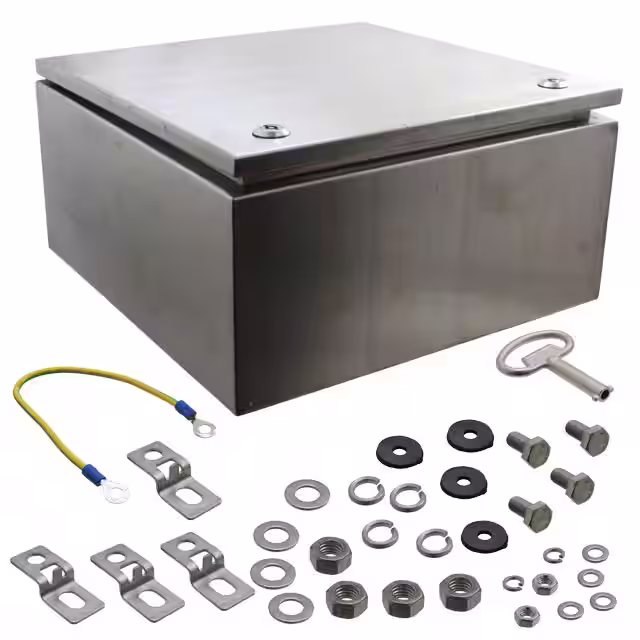

SNB-3737-SSBOX S STL NAT 15.75"L X 15.75"W Bud Industries |
1,266 |
|
数据手册 |
SNB | Bulk | Active | Box | 15.750" L x 15.750" W (400.05mm x 400.05mm) | 7.870" (199.90mm) | 248in² (1600cm²) | Hinged Door, Lid | Metal, Stainless Steel | Natural | 14 Gauge | Interior Panels, Mounting Flange | IP66, NEMA 1,2,4,4X, UL-508 | - |
|
|
NBC-10352BOX ABS/PC GRY 32.05"L X 24.18"W Bud Industries |
4,222 |
|
数据手册 |
NBC | Case | Obsolete | Box | 32.050" L x 24.180" W (814.07mm x 614.17mm) | 11.125" (282.58mm) | 775in² (5000cm²) | Hinged Door, Lid | Plastic, ABS/PC Blend | Gray | 0.200" (5.08mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VB |
|
|
SNB-3746-SSBOX S STL NATURAL 16"L X 8"W Bud Industries |
2,903 |
|
数据手册 |
SNB | Bulk | Active | Box | 16.000" L x 8.000" W (406.40mm x 203.20mm) | 20.000" (508.00mm) | 128in² (826cm²) | Hinged Door, Lid | Metal, Stainless Steel | Natural | 16 Gauge | Interior Panels, Mounting Flange | IP66, NEMA 1,2,4,4X, UL-508 | - |
|
|
NBG-20010BOX PLAS GRAY 32.72"L X 24.86"W Bud Industries |
3,013 |
|
数据手册 |
NBG | Box | Active | Box | 32.720" L x 24.860" W (831.09mm x 631.44mm) | 7.490" (190.25mm) | 813in² (5248cm²) | Hinged Door, Lid | Plastic, PBT/PC Blend | Gray | 0.220" (5.59mm) | - | IP66, NEMA 4X,12,13 | UL94 V-0 |
|
|
NBG-20010-CBOX PLASTIC 32.72"L X 24.86"W Bud Industries |
2,233 |
|
数据手册 |
NBG | Box | Active | Box | 32.720" L x 24.860" W (831.09mm x 631.44mm) | 7.490" (190.25mm) | 813in² (5248cm²) | Hinged Door, Lid | Plastic, PBT/PC Blend | Gray, Clear Cover/Door | 0.220" (5.59mm) | - | IP66, NEMA 4X,12,13 | UL94 V-0 |
|
|
NBC-10372BOX PLAS GRAY 32.05"L X 24.18"W Bud Industries |
3,118 |
|
数据手册 |
NBC | Bulk | Active | Box | 32.050" L x 24.180" W (814.07mm x 614.17mm) | 11.125" (282.58mm) | 775in² (5000cm²) | Hinged Door, Lid | Plastic, PBT/PC Blend | Gray | 0.200" (5.08mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
