上传BOM单
箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBF-32336BOX ABS/PBT 20.86"L X 16.92"W Bud Industries |
1,834 |
|
数据手册 |
NBF | Bulk | Active | Box | 20.860" L x 16.920" W (529.84mm x 429.77mm) | 6.290" (159.77mm) | 353in² (2277cm²) | Hinged Door, Lid | Plastic, ABS/PBT Blend | Gray | 0.165" (4.20mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|
|
NBF-32436BOX ABS/PBT 20.86"L X 16.92"W Bud Industries |
3,909 |
|
数据手册 |
NBF | Bulk | Active | Box | 20.860" L x 16.920" W (529.84mm x 429.77mm) | 6.290" (159.77mm) | 353in² (2277cm²) | Hinged Door, Lid | Plastic, ABS/PBT Blend | Gray, Clear Cover/Door | 0.165" (4.20mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|
|
TC-302-GTCABINET ALUM GRAY 13"L X 9"W Bud Industries |
4,166 |
|
数据手册 |
Transicase | Bulk | Active | Cabinet | 13.000" L x 9.000" W (330.20mm x 228.60mm) | 7.500" (190.50mm) | 117in² (755cm²) | Hinged Door, Lid | Metal, Aluminum | Gray | 0.040" (1.02mm) | Separate Panel or Cover Thickness, Handle | - | - |
|
|
NBF-32338BOX ABS/PBT 20.86"L X 16.92"W Bud Industries |
1,499 |
|
数据手册 |
NBF | Bulk | Active | Box | 20.860" L x 16.920" W (529.84mm x 429.77mm) | 7.870" (199.90mm) | 353in² (2277cm²) | Hinged Door, Lid | Plastic, ABS/PBT Blend | Gray | 0.165" (4.20mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|
|
NBF-32438BOX ABS/PBT 20.86"L X 16.92"W Bud Industries |
1,197 |
|
数据手册 |
NBF | Bulk | Active | Box | 20.860" L x 16.920" W (529.84mm x 429.77mm) | 7.870" (199.90mm) | 353in² (2277cm²) | Hinged Door, Lid | Plastic, ABS/PBT Blend | Gray, Clear Cover/Door | 0.165" (4.20mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|
|
NBF-32140BOX ABS/PC GRY 23.62"L X 19.68"W Bud Industries |
4,488 |
|
数据手册 |
NBF | Bulk | Active | Box | 23.620" L x 19.680" W (599.95mm x 499.87mm) | 7.080" (179.83mm) | 465in² (3000cm²) | Hinged Door, Lid | Plastic, ABS/PC Blend | Gray | 0.185" (4.70mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|
|
NBF-32240BOX ABS/PC 23.62"L X 19.68"W Bud Industries |
1,849 |
|
数据手册 |
NBF | Bulk | Active | Box | 23.620" L x 19.680" W (599.95mm x 499.87mm) | 7.080" (179.83mm) | 465in² (3000cm²) | Hinged Door, Lid | Plastic, ABS/PC Blend | Gray, Clear Cover/Door | 0.185" (4.70mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|

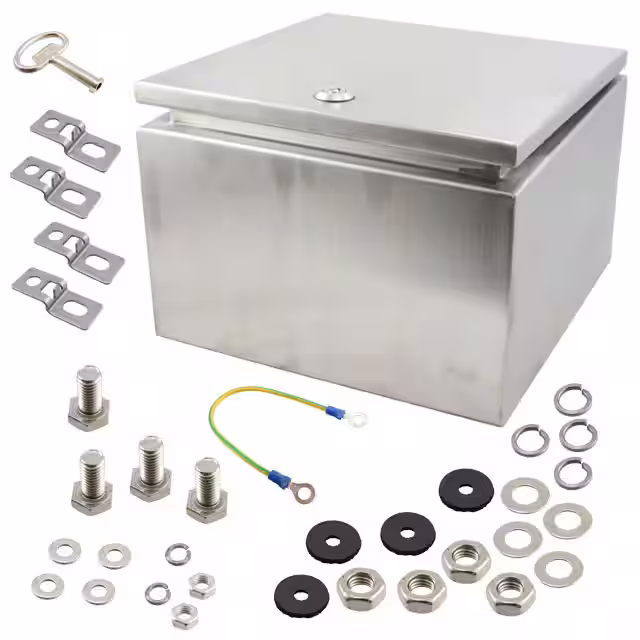

SNB-3734-SSBOX S STL NAT 11.81"L X 11.81"W Bud Industries |
4,985 |
|
数据手册 |
SNB | Bulk | Active | Box | 11.810" L x 11.810" W (299.97mm x 299.97mm) | 7.870" (199.90mm) | 139in² (897cm²) | Hinged Door, Lid | Metal, Stainless Steel | Natural | 14 Gauge | Interior Panels, Mounting Flange | IP66, NEMA 1,2,4,4X, UL-508 | - |
|
|
TC-303-GTCABINET ALUM GRAY 16.5"L X 9"W Bud Industries |
2,952 |
|
数据手册 |
Transicase | Bulk | Active | Cabinet | 16.500" L x 9.000" W (419.10mm x 228.60mm) | 7.500" (190.50mm) | 149in² (961cm²) | Hinged Door, Lid | Metal, Aluminum | Gray | 0.040" (1.02mm) | Separate Panel or Cover Thickness, Handle | - | - |
|
|
TC-303-RBCABINET ALUM BLUE 16.5"L X 9"W Bud Industries |
1,150 |
|
数据手册 |
Transicase | Bulk | Active | Cabinet | 16.500" L x 9.000" W (419.10mm x 228.60mm) | 7.500" (190.50mm) | 149in² (961cm²) | Hinged Door, Lid | Metal, Aluminum | Blue | 0.040" (1.02mm) | Separate Panel or Cover Thickness, Handle | - | - |
