绕线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线规 | 导体直径 | 长度 | 护套（绝缘）材料 | 护套（绝缘）直径 | 导体材料 | 导体镀层 | 护套颜色 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

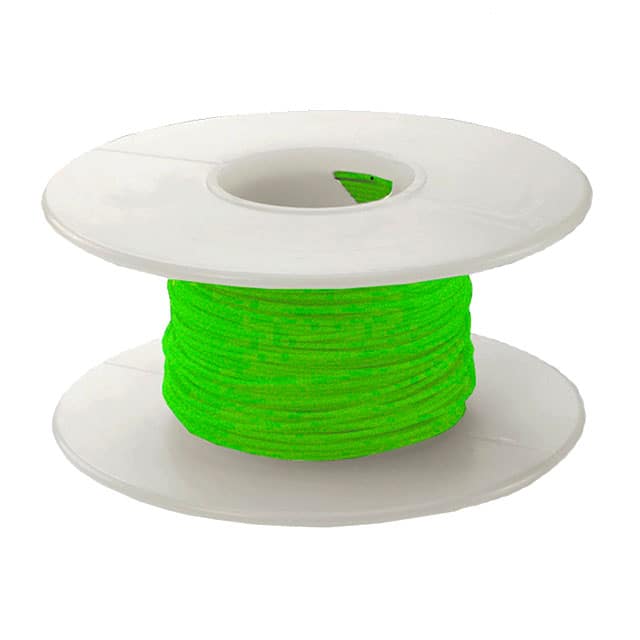

KSW30G-1000WIRE 30AWG GREEN 1000 FT CSW Jonard Tools |
1,686 |
|
数据手册 |
KSW | Roll | Active | 30 AWG | 0.010" (0.25mm) | 1000' (304.80m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Green | UL Style 1423 | - |
|

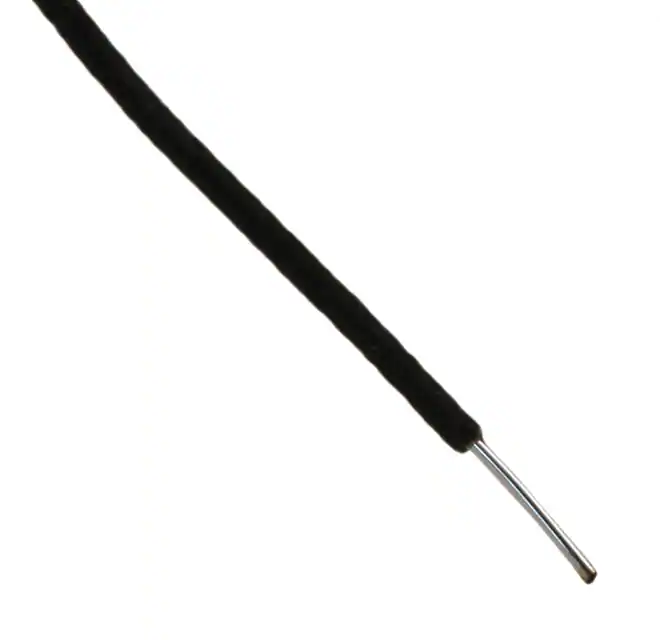

KSW30BLK-0100WIRE WW 30AWG PVDF BLACK 100' Jonard Tools |
4,145 |
|
数据手册 |
KSW | Roll | Active | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Black | UL Style 1423 | - |
|
KSW30G-0100WIRE 30AWG GREEN 100 FT CSW Jonard Tools |
2,668 |
|
数据手册 |
KSW | Roll | Active | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Green | UL Style 1423 | - |
|
TSW30G-0100WIRE WRAPPING WIRE, GREE Jonard Tools |
3,904 |
|
数据手册 |
TSW | Box | Obsolete | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Ethylene Tetrafluoroethylene (ETFE) | 0.022" (0.55mm) | Copper, Bare | Silver | - | - | - |
|
WD-30-YWIRE WW 30AWG PVDF YELLOW Jonard Tools |
2,518 |
|
数据手册 |
WD-30 | Roll | Obsolete | 30 AWG | 0.010" (0.25mm) | 50' (15.24m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Yellow | UL Style 1423, VW-1 | With Dispenser |
|

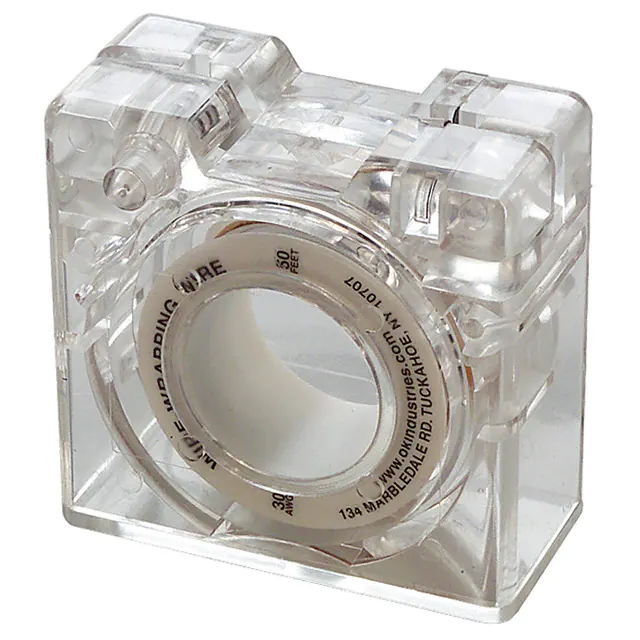

WD-30-WWIRE WW 30AWG PVDF WHITE 50' Jonard Tools |
3,876 |
|
数据手册 |
WD-30 | Roll | Obsolete | 30 AWG | 0.010" (0.25mm) | 50' (15.24m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | White | UL Style 1423, VW-1 | With Dispenser |
|
WD-30-RWIRE WW 30AWG PVDF RED Jonard Tools |
2,827 |
|
数据手册 |
WD-30 | Roll | Obsolete | 30 AWG | 0.010" (0.25mm) | 50' (15.24m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Red | UL Style 1423, VW-1 | With Dispenser |
|

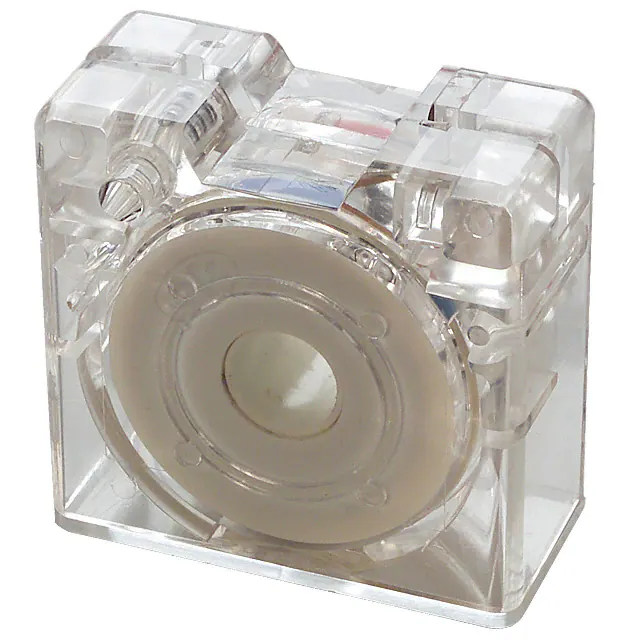

WD-30-TRIWIRE WW 30AWG PVDF MULTIPLE 50' Jonard Tools |
1,509 |
|
数据手册 |
WD-30 | Roll | Obsolete | 30 AWG | 0.010" (0.25mm) | 50' (15.24m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Multiple | UL Style 1423, VW-1 | With Dispenser |
|
30-R-50-050WIRE WW 30AWG PVDF RED 7" 50PC Jonard Tools |
4,795 |
|
数据手册 |
- | 50 per Pkg | Obsolete | 30 AWG | 0.010" (0.25mm) | 0.583' (177.70mm, 7.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Red | UL Style 1423, VW-1 | - |
|

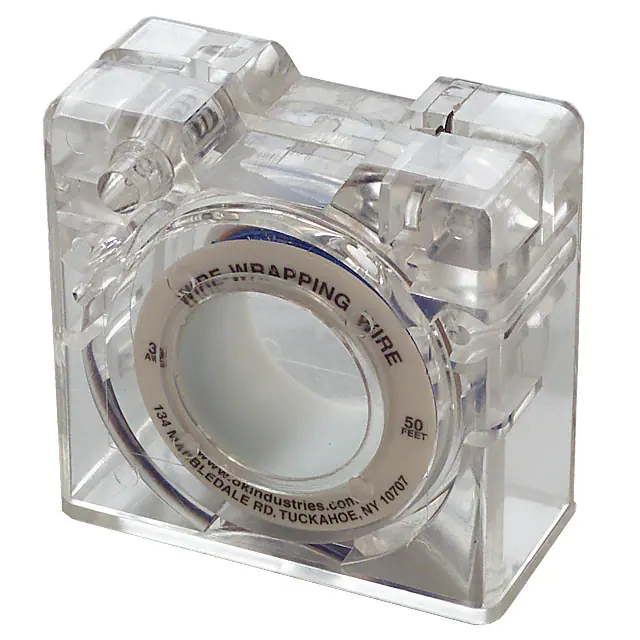

WD-30-BWIRE WW 30AWG PVDF BLUE 50' Jonard Tools |
4,583 |
|
数据手册 |
WD-30 | Roll | Obsolete | 30 AWG | 0.010" (0.25mm) | 50' (15.24m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Blue | UL Style 1423, VW-1 | With Dispenser |
