绕线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线规 | 导体直径 | 长度 | 护套（绝缘）材料 | 护套（绝缘）直径 | 导体材料 | 导体镀层 | 护套颜色 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R30G-1000WIRE WW 30AWG PVDF GREEN 1000' Jonard Tools |
3,840 |
|
数据手册 |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 1000' (304.80m) | Polyvinylidene Fluoride (PVDF) | 0.020" (0.51mm) | Copper, Bare | Silver | Green | UL Style 1423, VW-1 | - |
|
30-B-50-020WIRE WW 30AWG PVDF BLUE 4" 50PC Jonard Tools |
266 |
|
数据手册 |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.333' (101.60mm, 4.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Blue | UL Style 1423, VW-1 | - |
|
30-W-50-020WIRE WW 30AWG PVDF WHITE 4" 50PC Jonard Tools |
156 |
|
数据手册 |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.333' (101.60mm, 4.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | White | UL Style 1423, VW-1 | - |
|

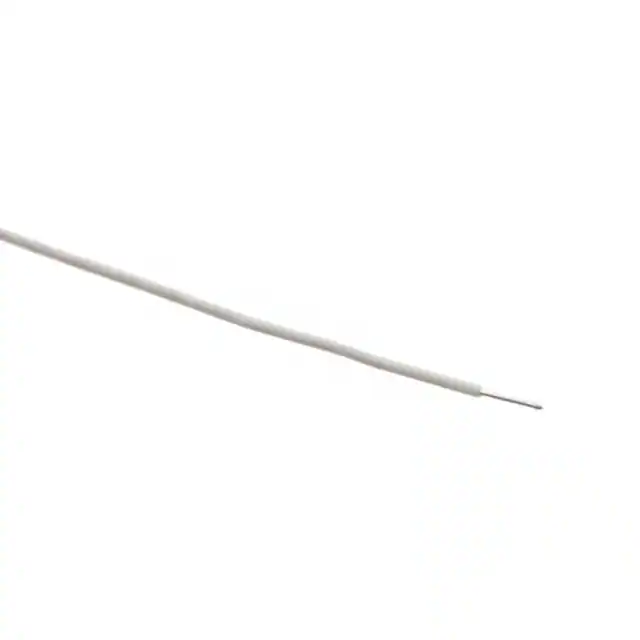

R30W-0100WIRE WW 30AWG PVDF WHITE 100' Jonard Tools |
3,066 |
|
数据手册 |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | White | UL Style 1423, VW-1 | - |
|

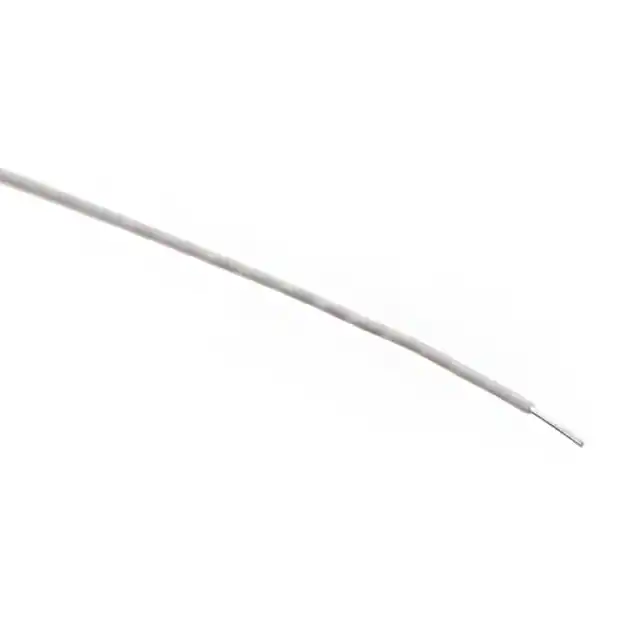

R28W-0100WIRE WW 28AWG PVDF WHITE 100' Jonard Tools |
4,676 |
|
数据手册 |
- | Roll | Active | 28 AWG | 0.013" (0.32mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.023" (0.58mm) | Copper, Bare | Silver | White | UL Style 1422 | - |
|

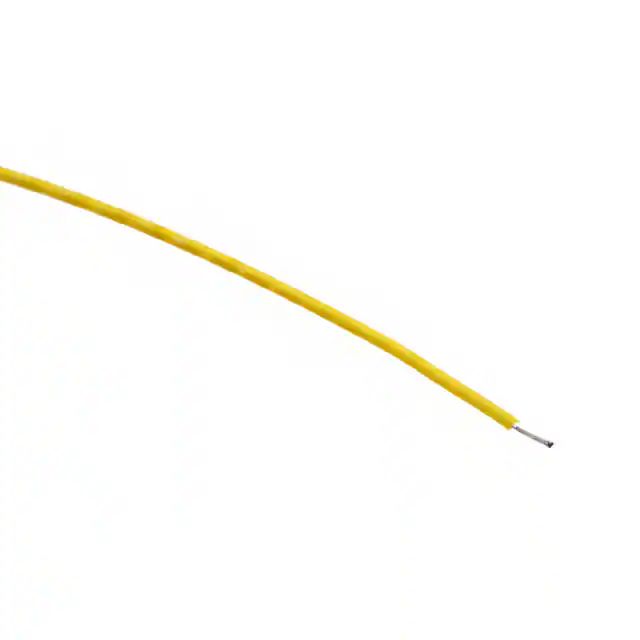

R28Y-0100WIRE WW 28AWG PVDF YELLOW 100' Jonard Tools |
4,839 |
|
数据手册 |
- | Roll | Active | 28 AWG | 0.013" (0.32mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.023" (0.58mm) | Copper, Bare | Silver | Yellow | UL Style 1422 | - |
|

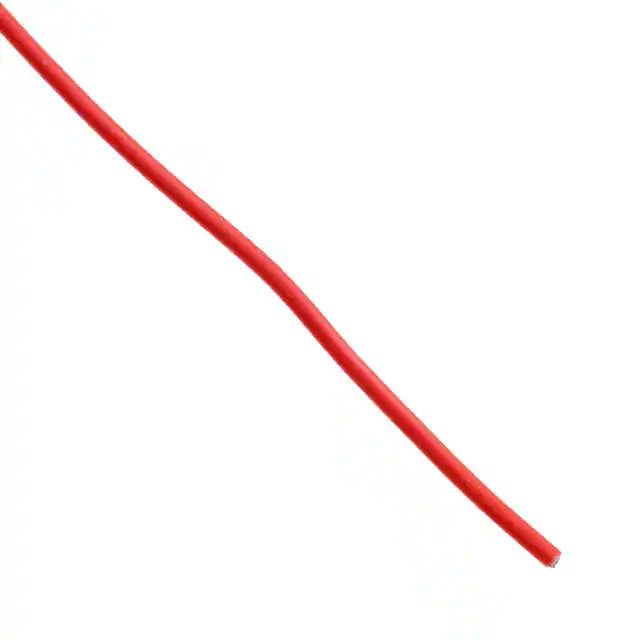

R26R-0100WIRE WW 26AWG PVDF RED 100' Jonard Tools |
100 |
|
数据手册 |
- | Roll | Active | 26 AWG | 0.016" (0.40mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.027" (0.69mm) | Copper, Bare | Silver | Red | UL Style 1422 | - |
|
R30B-1000WIRE WW 30AWG PVDF BLUE 1000' Jonard Tools |
3,772 |
|
数据手册 |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 1000' (304.80m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Blue | UL Style 1423, VW-1 | - |
|
R30R-1000WIRE WW 30AWG PVDF RED 1000' Jonard Tools |
4,962 |
|
数据手册 |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 1000' (304.80m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Red | UL Style 1423, VW-1 | - |
|
30-Y-50-020WIRE WW 30AWG PVDF YELLW 4" 50PC Jonard Tools |
2,039 |
|
数据手册 |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.333' (101.60mm, 4.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Yellow | UL Style 1423, VW-1 | - |
