绕线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线规 | 导体直径 | 长度 | 护套（绝缘）材料 | 护套（绝缘）直径 | 导体材料 | 导体镀层 | 护套颜色 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

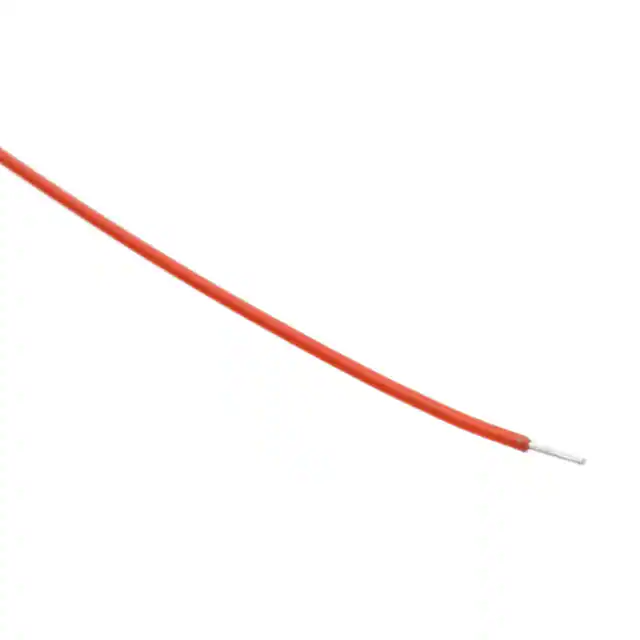

R28R-0100WIRE WW 28AWG PVDF RED 100' Jonard Tools |
3,701 |
|
数据手册 |
- | Roll | Active | 28 AWG | 0.013" (0.32mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.023" (0.58mm) | Copper, Bare | Silver | Red | UL Style 1422 | - |
|
R26B-0100WIRE WW 26AWG PVDF BLUE 100' Jonard Tools |
3,798 |
|
数据手册 |
- | Roll | Active | 26 AWG | 0.016" (0.40mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.027" (0.69mm) | Copper, Bare | Silver | Blue | UL Style 1422 | - |
|
R26W-0100WIRE WW 26AWG PVDF WHITE 100' Jonard Tools |
1,934 |
|
数据手册 |
- | Roll | Active | 26 AWG | 0.016" (0.40mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.027" (0.69mm) | Copper, Bare | Silver | White | UL Style 1422 | - |
|
R24B-0100WIRE WW 24AWG PVDF BLUE 100' Jonard Tools |
4,493 |
|
数据手册 |
- | Roll | Active | 24 AWG | 0.019" (0.50mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.030" (0.76mm) | Copper, Bare | Silver | Blue | UL Style 1422 | - |
|

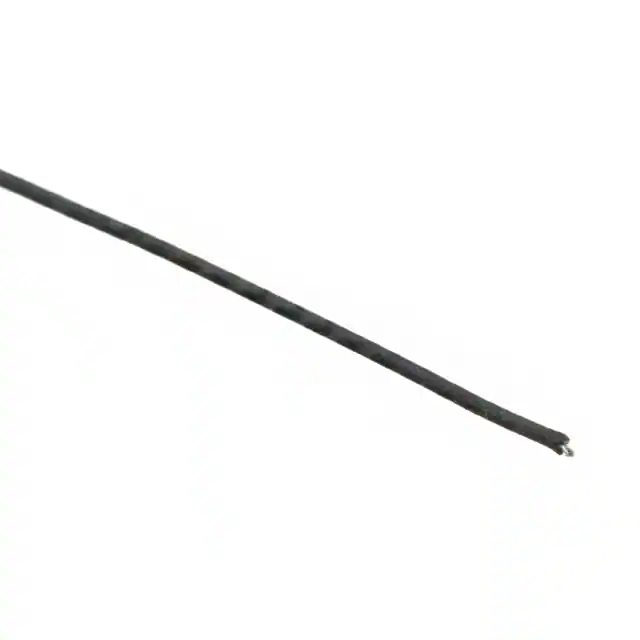

R24BLK-0100WIRE WW 24AWG PVDF BLACK 100' Jonard Tools |
4,558 |
|
数据手册 |
- | Roll | Active | 24 AWG | 0.019" (0.50mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.030" (0.76mm) | Copper, Bare | Silver | Black | UL Style 1422 | - |
|

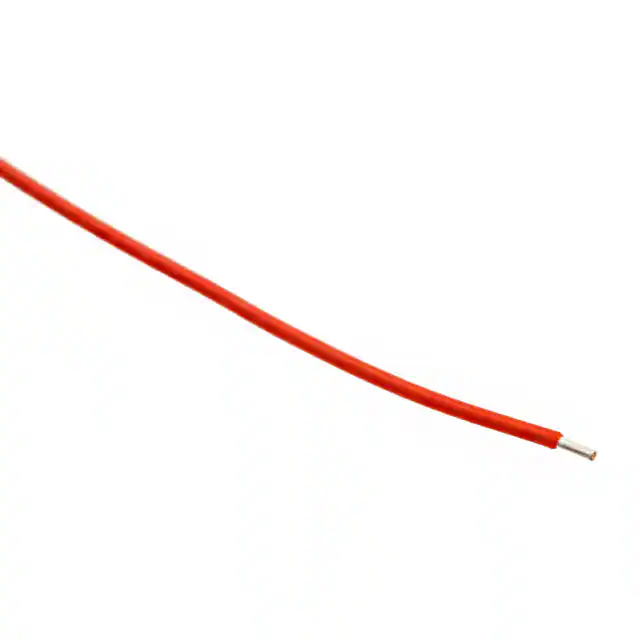

R24R-0100WIRE WW 24AWG PVDF RED 100' Jonard Tools |
4,533 |
|
数据手册 |
- | Roll | Active | 24 AWG | 0.019" (0.50mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.030" (0.76mm) | Copper, Bare | Silver | Red | UL Style 1422 | - |
|
R24Y-0100WIRE WW 24AWG PVDF YELLOW 100' Jonard Tools |
1,307 |
|
数据手册 |
- | Roll | Active | 24 AWG | 0.019" (0.50mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.030" (0.76mm) | Copper, Bare | Silver | Yellow | UL Style 1422 | - |
|

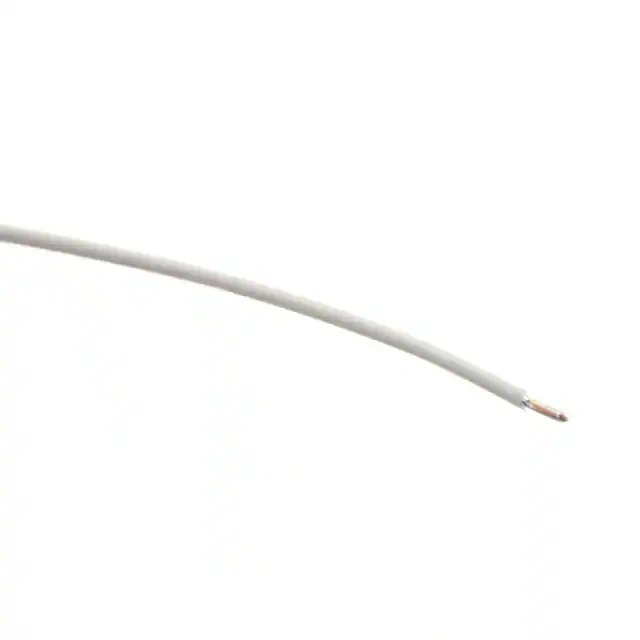

R24W-0100WIRE WW 24AWG PVDF WHITE 100' Jonard Tools |
3,764 |
|
数据手册 |
- | Roll | Active | 24 AWG | 0.019" (0.50mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.030" (0.76mm) | Copper, Bare | Silver | White | UL Style 1422 | - |
|
R30Y-1000WIRE WW 30AWG PVDF YELLOW 1000' Jonard Tools |
1,660 |
|
数据手册 |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 1000' (304.80m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Yellow | UL Style 1423, VW-1 | - |
|
30-W-50-010WIRE WW 30AWG PVDF WHITE 3" 50PC Jonard Tools |
4,902 |
|
数据手册 |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.250' (76.20mm, 3.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | White | UL Style 1423, VW-1 | - |
