拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8A2022-ZSWITCH TOGGLE DPDT 6A 125V Nidec Components Corporation |
3,518 |
|
数据手册 |
8A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
8G1014-ZSWITCH TOGGLE SPDT 6A 125V Nidec Components Corporation |
4,681 |
|
数据手册 |
8G | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -25°C ~ 80°C |
|

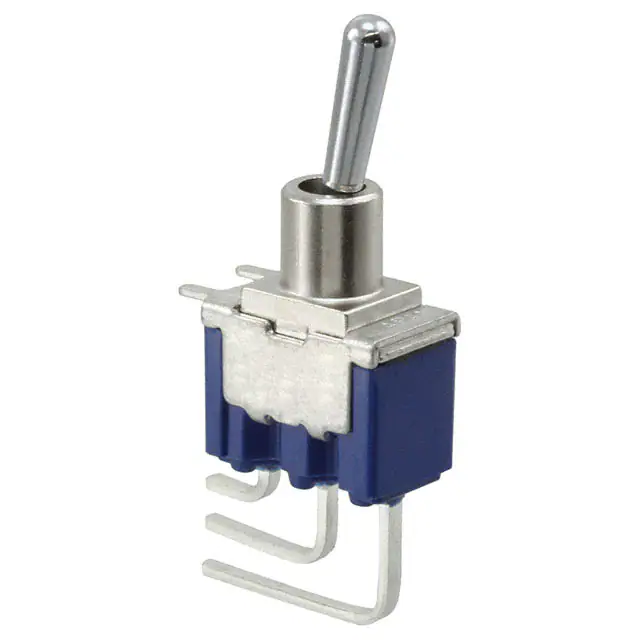

8GA1016-ZSWITCH TOGGLE SPDT 6A 125V Nidec Components Corporation |
4,174 |
|
数据手册 |
8GA | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -30°C ~ 85°C |
|
|
8A2012-ZSWITCH TOGGLE DPDT 6A 125V Nidec Components Corporation |
1,213 |
|
数据手册 |
8A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
8G1042-ZSWITCH TOGGLE SPDT 6A 125V Nidec Components Corporation |
2,457 |
|
数据手册 |
8G | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -30°C ~ 85°C |
|

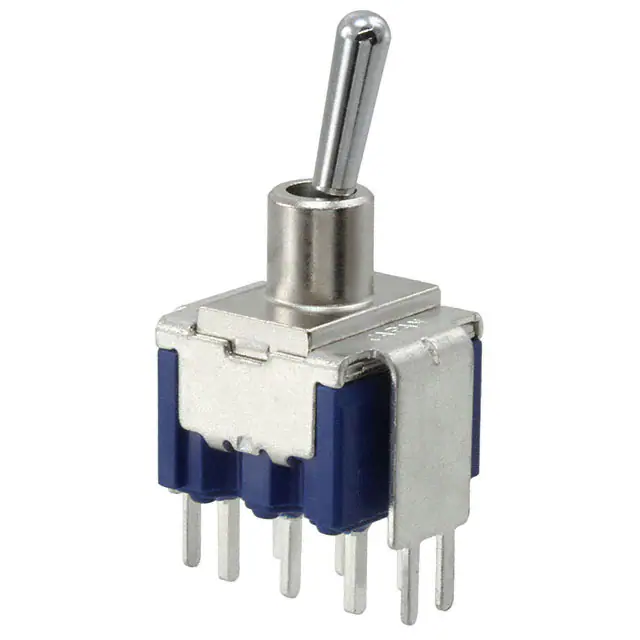

8GA2012-ZSWITCH TOGGLE DPDT 6A 125V Nidec Components Corporation |
1,872 |
|
数据手册 |
8GA | Bulk | Active | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -30°C ~ 85°C |
|
8C1021-ZSWITCH TOGGLE SPDT 6A 125V Nidec Components Corporation |
1,625 |
|
数据手册 |
8C | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|

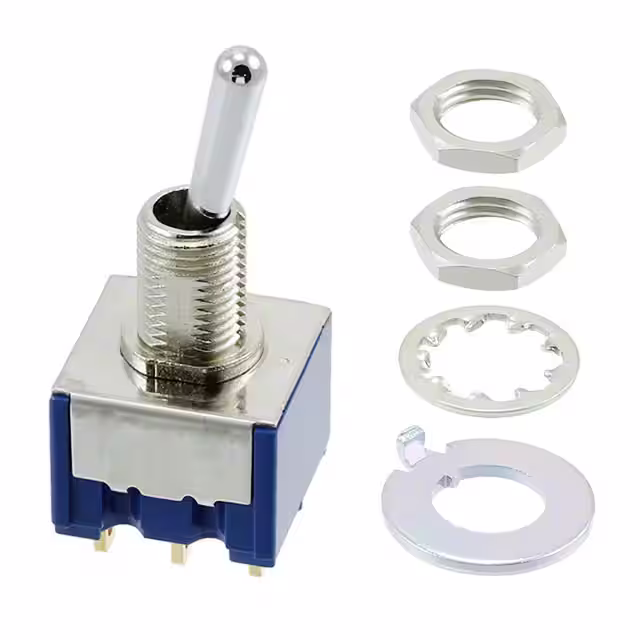

8A2011C-ZSWITCH TOGGLE DPDT 25MA 20V Nidec Components Corporation |
2,149 |
|
数据手册 |
8A | Bulk | Active | Panel Mount | DPDT | On-On | 25mA (DC) | - | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|

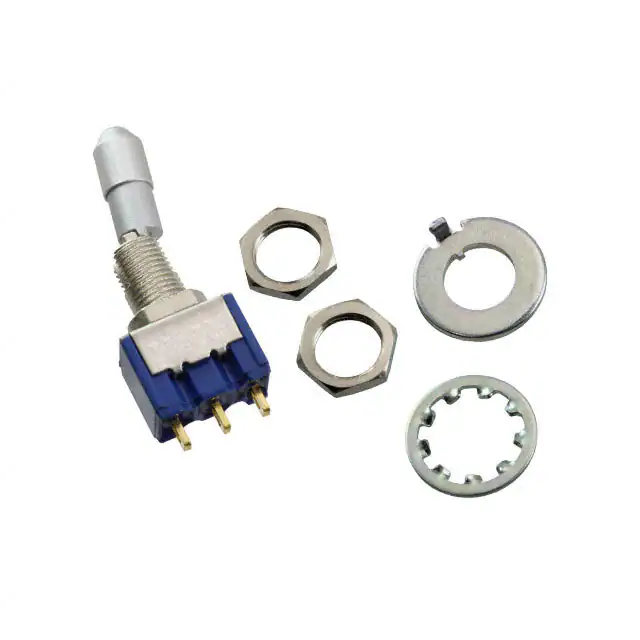

8E1021C-ZSWITCH TOGGLE SPDT 25MA 20V Nidec Components Corporation |
2,320 |
|
数据手册 |
8E | Bulk | Active | Panel Mount | SPDT | On-Off-On | 25mA (DC) | - | 20 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
ET110D12-ZSWITCH TOGGLE SPDT 10A 125V Nidec Components Corporation |
4,543 |
|
数据手册 |
ET | Bulk | Active | Panel Mount | SPDT | On-On | 10A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
