拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ET210N12-ZSWITCH TOGGLE DPDT 10A 125V Nidec Components Corporation |
125 |
|
数据手册 |
ET | Bulk | Active | Panel Mount | DPDT | On-On | 10A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
8E4011-ZSWITCH TOGGLE 4PDT 6A 125V Nidec Components Corporation |
346 |
|
数据手册 |
8E | Bulk | Active | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
8A4101-ZSWITCH TOGGLE 4PDT 6A 125V Nidec Components Corporation |
113 |
|
数据手册 |
8A | Bulk | Active | Panel Mount | 4PDT | On-On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

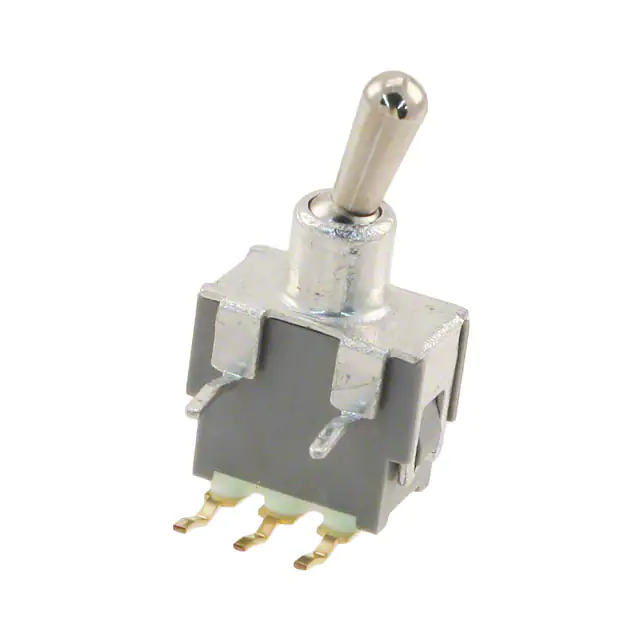

ATE1D-5M3-10-ZSWITCH TOGGLE SPDT 50MA 48V Nidec Components Corporation |
1,096 |
|
数据手册 |
ATE | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
ATE1D-6M3-10-ZSWITCH TOGGLE SPDT 50MA 48V Nidec Components Corporation |
313 |
|
数据手册 |
ATE | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
ATE1G-2M3-10-ZSWITCH TOGGLE SPDT 50MA 48V Nidec Components Corporation |
334 |
|
数据手册 |
ATE | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|

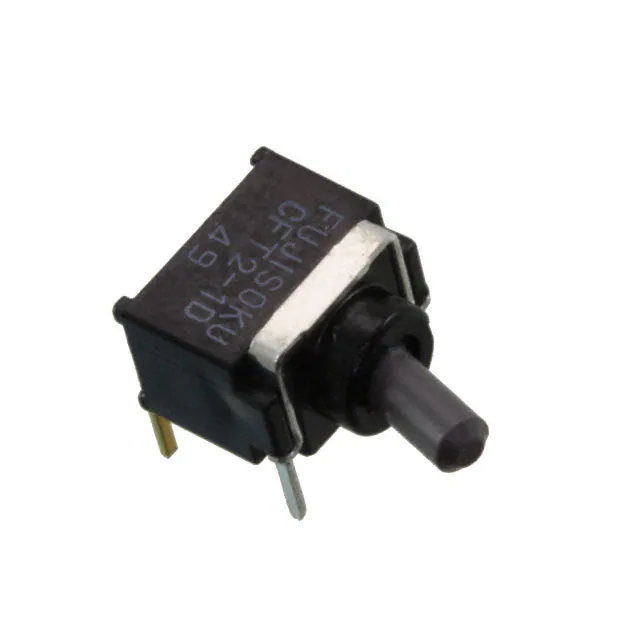

CFT2-1DC4-AWSWITCH TOGGLE SPDT 0.4VA 28V Nidec Components Corporation |
109 |
|
数据手册 |
CFT2 | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Gray Actuator | -40°C ~ 85°C |
|
ATE1D-2F3-10-ZSWITCH TOGGLE SPDT 50MA 48V Nidec Components Corporation |
133 |
|
数据手册 |
ATE | Tray | Active | Through Hole | SPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
FT1D-2M-ZSWITCH TOGGLE SPDT 0.4VA 28V Nidec Components Corporation |
3,180 |
|
数据手册 |
FT | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Yellow Actuator | -40°C ~ 85°C |
|
CFT2-1EC-AWSWITCH TOGGLE SPDT 0.4VA 28V Nidec Components Corporation |
207 |
|
数据手册 |
CFT2 | Tray | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Gray Actuator | -40°C ~ 85°C |
