拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CF-TA-1GB4-A12SWITCH TOGGLE SPDT 50MA 48V Nidec Components Corporation |
285 |
|
数据手册 |
CF-TA | Bulk | Obsolete | Surface Mount, Right Angle | SPDT | Mom-Off-Mom | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | - | -40°C ~ 85°C |
|

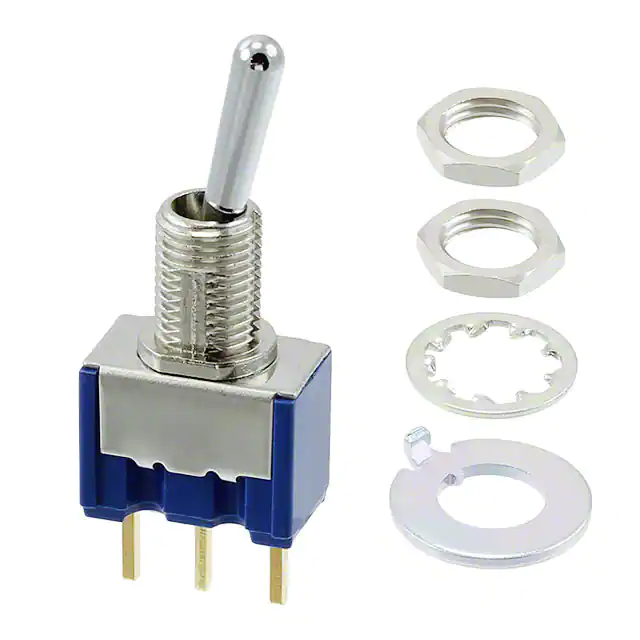

8A1062C-ZSWITCH TOGGLE SPDT 25MA 20V Nidec Components Corporation |
119 |
|
数据手册 |
8A | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 25mA (DC) | - | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
8G1064-ZSWITCH TOGGLE SPDT 6A 125V Nidec Components Corporation |
139 |
|
数据手册 |
8G | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -25°C ~ 80°C |
|

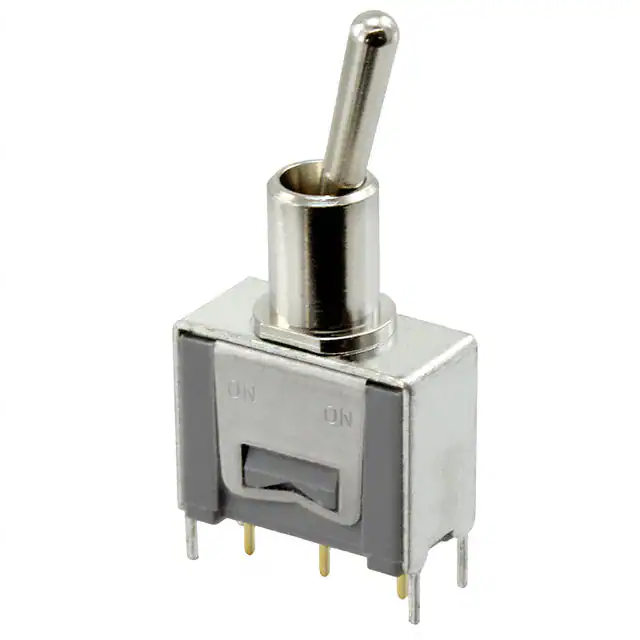

BT1D-2M4-ZSWITCH TOGGLE SPDT 50MA 20V Nidec Components Corporation |
803 |
|
数据手册 |
BT | Bulk | Obsolete | Through Hole | SPDT | On-On | 50mA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|
|
BT1E-2M4-ZSWITCH TOGGLE SPDT 50MA 20V Nidec Components Corporation |
180 |
|
数据手册 |
BT | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 50mA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|
ET215R12-ZSWITCH TOGGLE DPDT 15A 125V Nidec Components Corporation |
141 |
|
数据手册 |
ET | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
ET105A12-ZSWITCH TOGGLE SPST 5A 125V Nidec Components Corporation |
2,634 |
|
数据手册 |
ET | Bulk | Active | Panel Mount | SPST | On-Off | 5A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

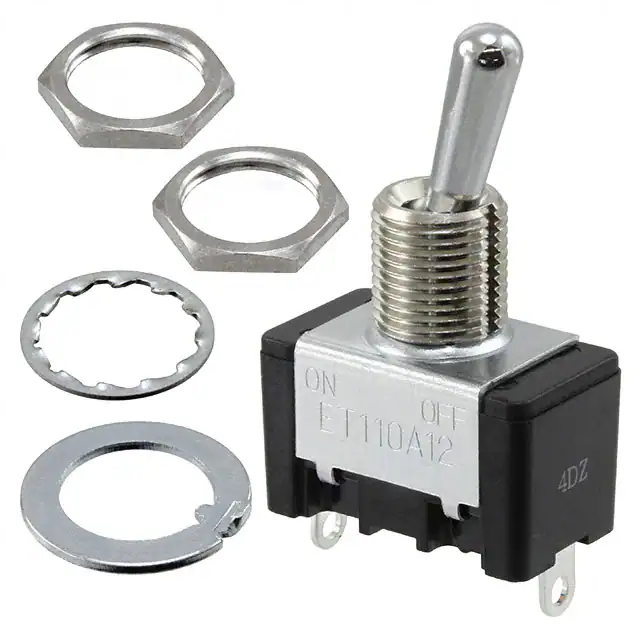

ET110A12-ZSWITCH TOGGLE SPST 10A 125V Nidec Components Corporation |
3,998 |
|
数据手册 |
ET | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
ET230P10-ZSWITCH TOGGLE DPDT 30A 125V Nidec Components Corporation |
2,532 |
|
数据手册 |
ET | Bulk | Active | Panel Mount | DPDT | On-Off-On | 30A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

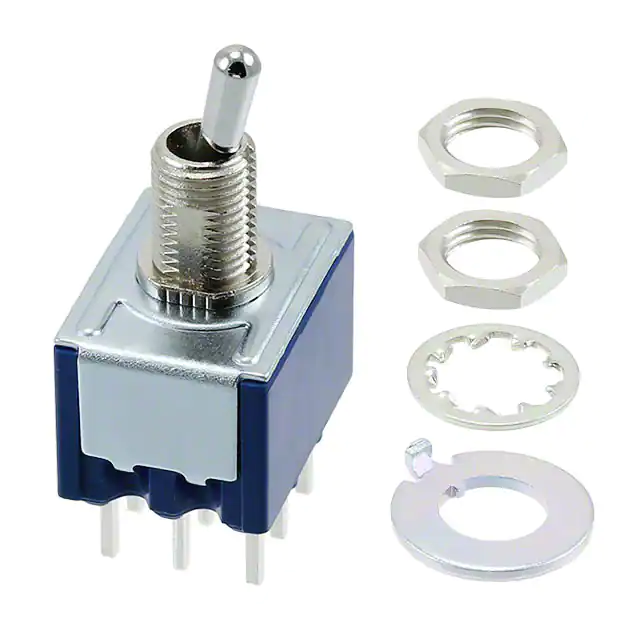

8J3012-ZSWITCH TOGGLE 3PDT 6A 125V Nidec Components Corporation |
1,607 |
|
数据手册 |
8J | Bulk | Active | Through Hole | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
