散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-X51325D-C1-R0MAXIFLOW 31.75X31.75X9.5MM T766 |
123 |
|
数据手册 |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.279" (32.50mm) | 1.279" (32.50mm) | - | 0.374" (9.50mm) | - | 6.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

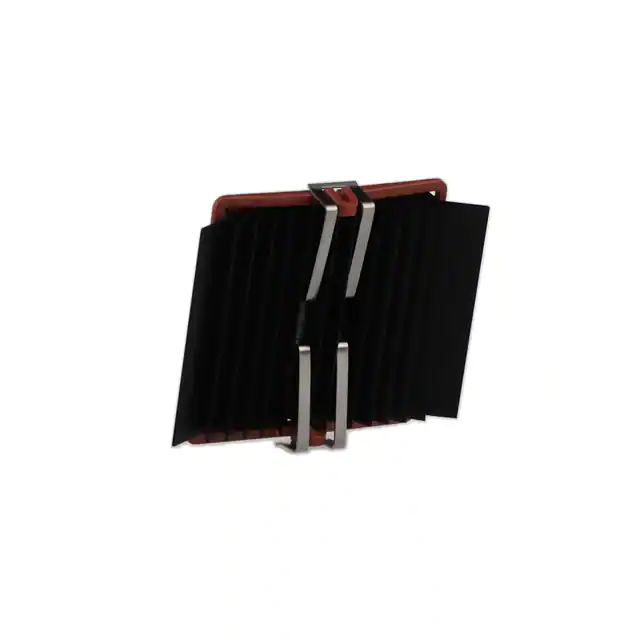

ATS-X51375D-C1-R0MAXIFLOW 36.75X36.75X9.5MM T766 |
124 |
|
数据手册 |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.374" (9.50mm) | - | 4.9°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

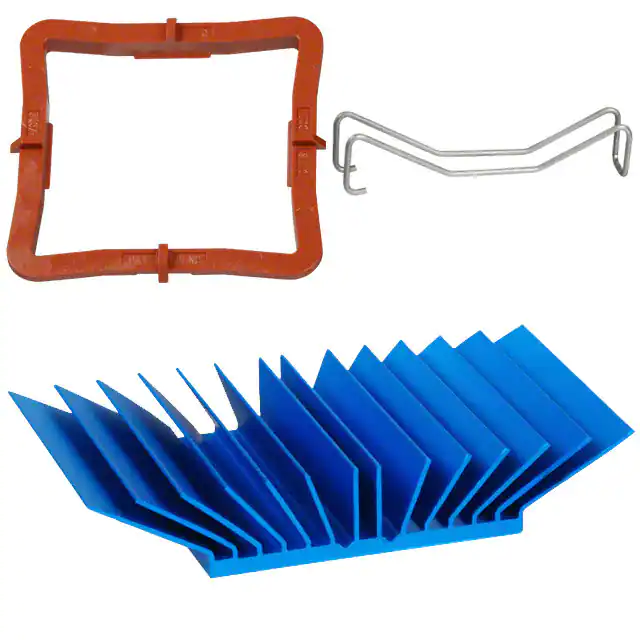

ATS-50375G-C1-R0HEAT SINK 37.5 X 37.5 X 12.5MM |
665 |
|
数据手册 |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.492" (12.50mm) | - | 2.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

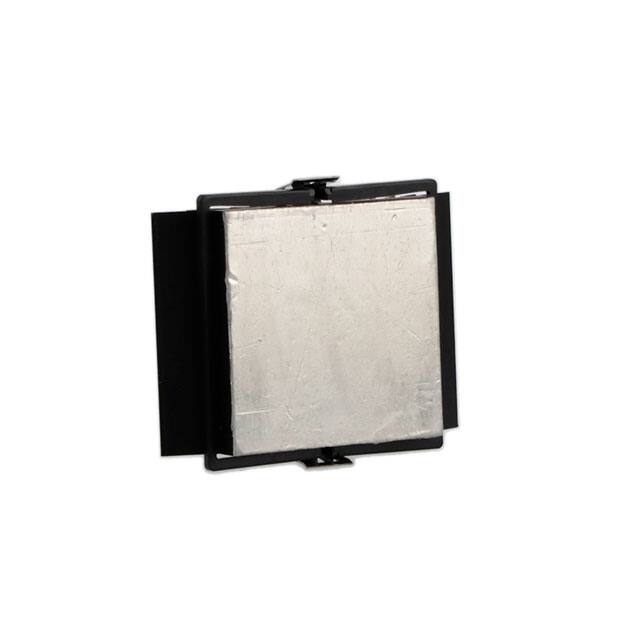

ATS-X51400D-C1-R0MAXIFLOW 39.25X39.25X9.5MM T766 |
124 |
|
数据手册 |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.374" (9.50mm) | - | 4.5°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X51250K-C1-R0MAXIFLOW 24.25X24.25X14.5MM T766 |
124 |
|
数据手册 |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.571" (14.50mm) | - | 5.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

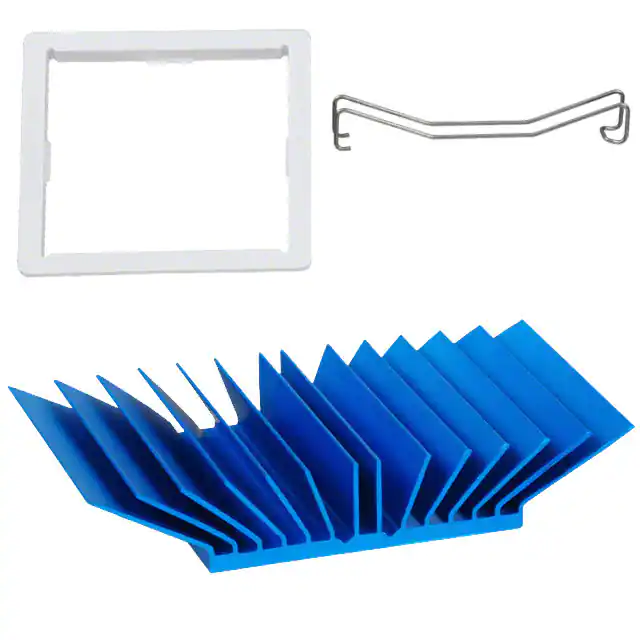

ATS-50425G-C1-R0HEAT SINK 42.5 X 42.5 X 12.5MM |
1,449 |
|
数据手册 |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.492" (12.50mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

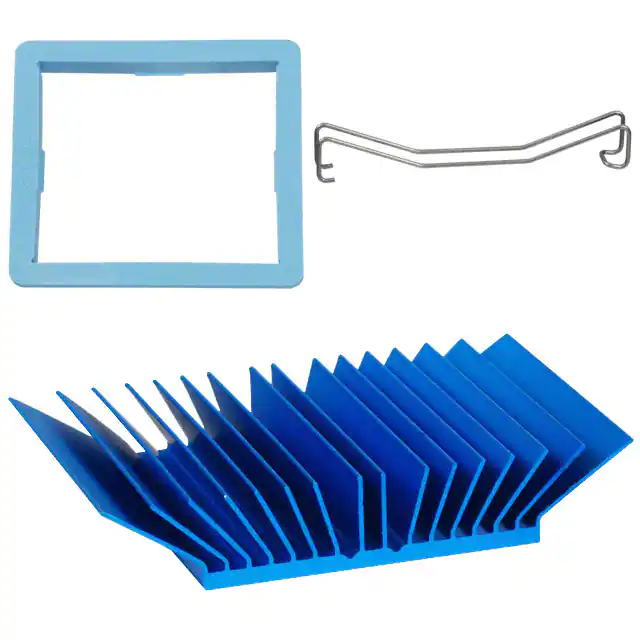

ATS-50450G-C1-R0HEAT SINK 45MM X 45MM X 12.5MM |
569 |
|
数据手册 |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.492" (12.50mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X51270R-C1-R0MAXIFLOW 26.25X26.25X19.5MM T766 |
124 |
|
数据手册 |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.768" (19.50mm) | - | 3.60°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X51170R-C1-R0MAXIFLOW 16.25X16.25X19.5MM T766 |
115 |
|
数据手册 |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.768" (19.50mm) | - | 8.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

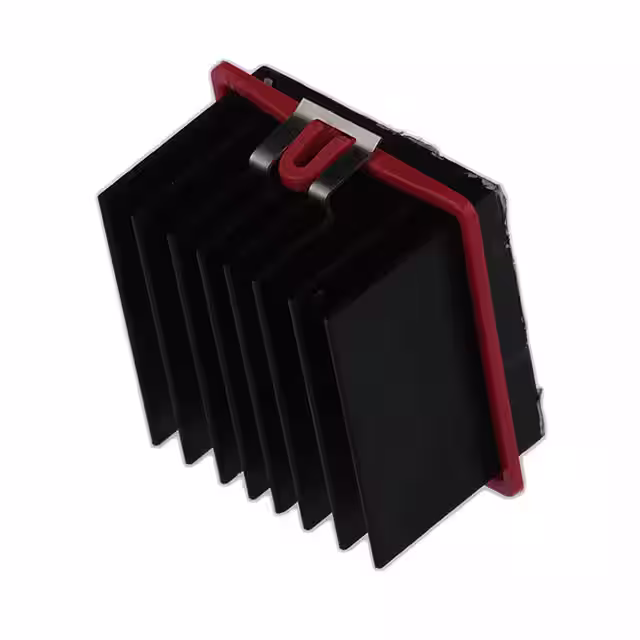

ATS-X53270R-C1-R0STR FIN 26.25X26.25X19.5MM T766 |
124 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

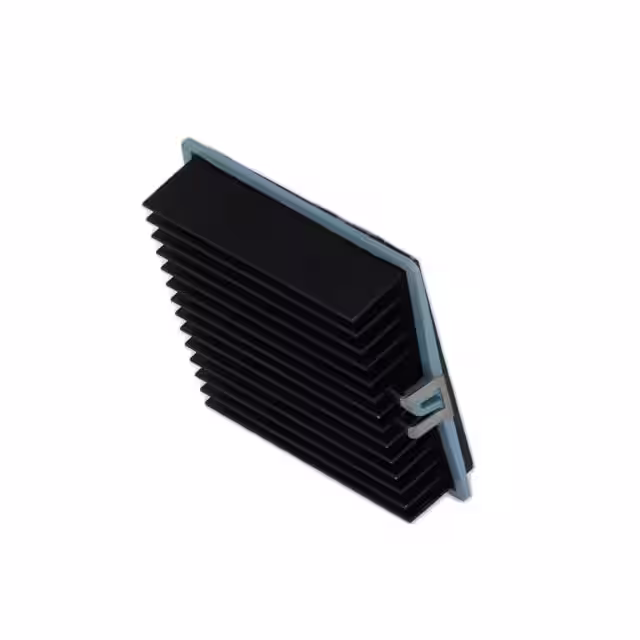

ATS-X53450K-C1-R0STR FIN 44.25X44.25X14.5MM T766 |
124 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

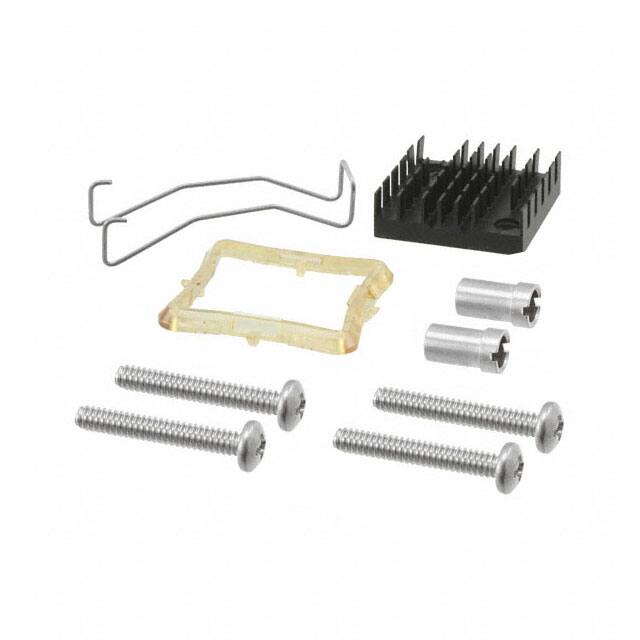

ATS-61290D-C1-R0MAXIGRIP FANSINK 29X29X9.5MM |
119 |
|
数据手册 |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.374" (9.50mm) | - | 3.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

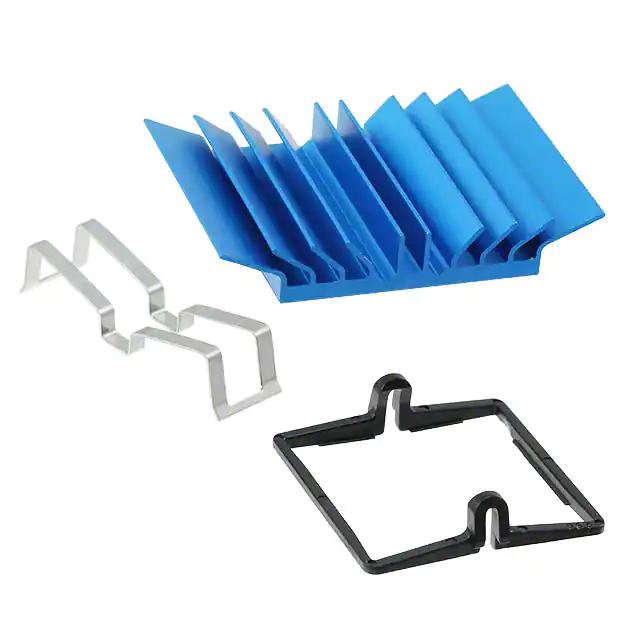

ATS-X50310B-C1-R0SUPERGRIP HEATSINK 31X31X7.5MM |
852 |
|
数据手册 |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.295" (7.50mm) | - | 6.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-X53190P-C1-R0SUPERGRIP HEATSINK 19X19X17.5MM |
573 |
|
数据手册 |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.689" (17.50mm) | - | 8.40°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-X53425P-C1-R0SUPERGRIP HEATSINK 42X42X17.5MM |
362 |
|
数据手册 |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.673" (42.50mm) | 1.673" (42.50mm) | - | 0.689" (17.50mm) | - | 1.75°C/W @ 200 LFM | 3.00°C/W | Aluminum | Blue Anodized |
|
|
ATS-X51450K-C1-R0MAXIFLOW 44.25X44.25X14.5MM T766 |
125 |
|
数据手册 |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.571" (14.50mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-X51300R-C1-R0MAXIFLOW 29.25X29.25X19.5MM T766 |
125 |
|
数据手册 |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.768" (19.50mm) | - | 3.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-51330R-C1-R0HEAT SINK 33MM X 33MM X 19.5MM |
154 |
|
数据手册 |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.768" (19.50mm) | - | 2.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

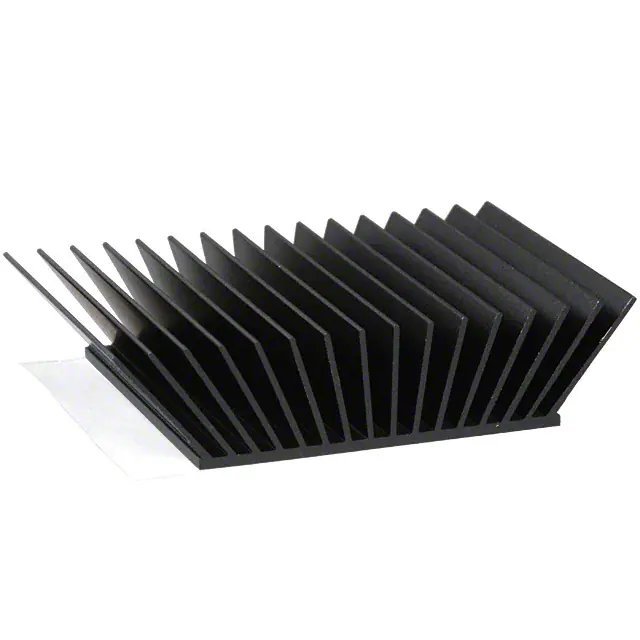

ATS-56005-C3-R0HEAT SINK 50MM X 45MM X 15MM |
887 |
|
数据手册 |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Included) | Rectangular, Angled Fins | 1.969" (50.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 2.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS-X51310R-C1-R0MAXIFLOW 30.25X30.25X19.5MM T766 |
110 |
|
数据手册 |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.768" (19.50mm) | - | 3.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
