散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
902-21-1-12-2-B-0HEATSINK 21X21X12MM ELLIPTICAL |
228 |
|
数据手册 |
902 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.457" (11.60mm) | - | 6.60°C/W @ 200 LFM | 12.40°C/W | Aluminum | Black Anodized |
|

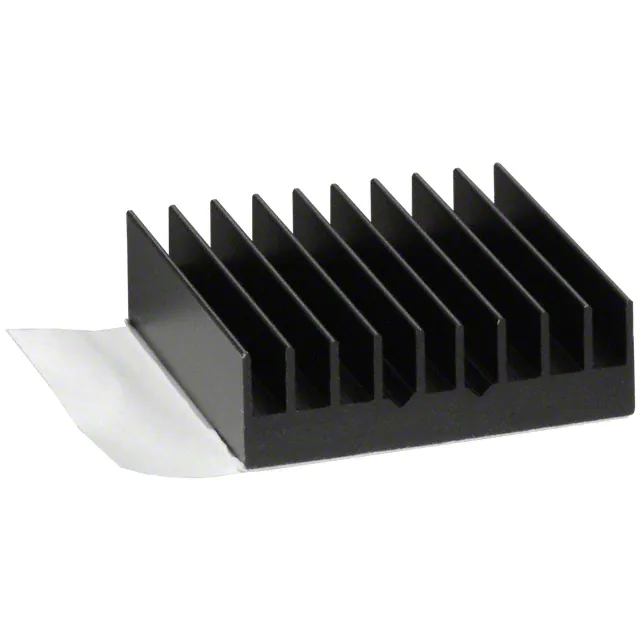

ATS-54310D-C1-R0HEAT SINK 31MM X 31MM X 9.5MM |
558 |
|
数据手册 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.374" (9.50mm) | - | 12.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

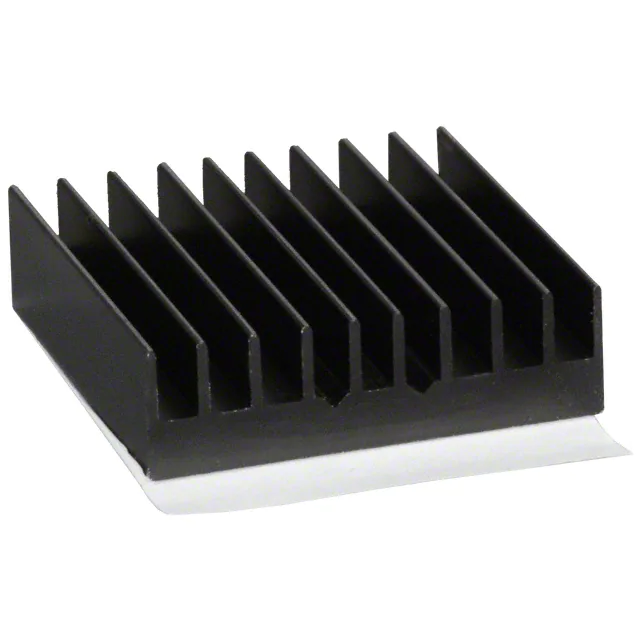

ATS-54325D-C1-R0HEAT SINK 32.5 X 32.5 X 9.5MM |
729 |
|
数据手册 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.280" (32.51mm) | 1.280" (32.51mm) | - | 0.374" (9.50mm) | - | 11.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-FPX070070015-28-C1-R0HEATSINK 70X70X15MM XCUT FP |
192 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 10.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

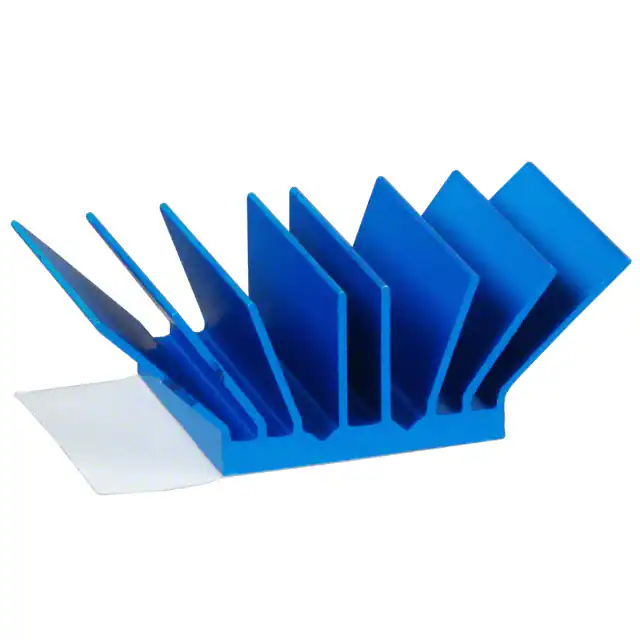

ATS-52210G-C1-R0HEAT SINK 21MM X 21MM X 12.5MM |
538 |
|
数据手册 |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.492" (12.50mm) | - | 7.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-31-C2-R0HEATSINK 57.9X36.83X5.84MM T766 |
128 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.230" (5.84mm) | - | 25.25°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

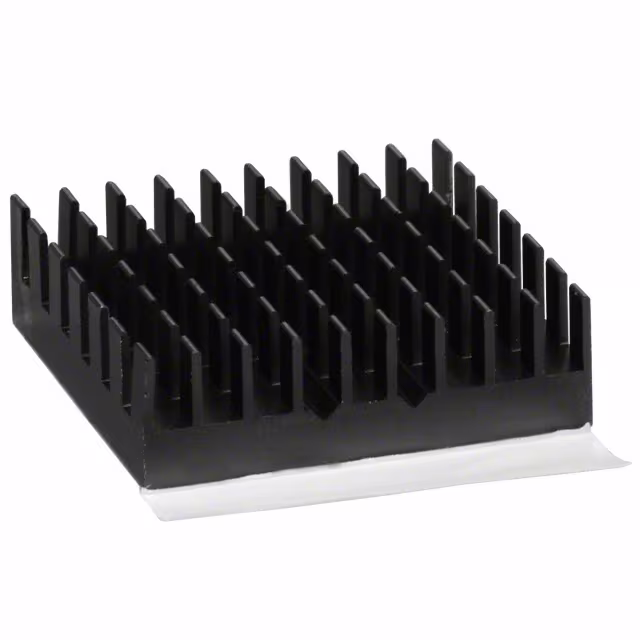

ATS-55310D-C1-R0HEAT SINK 31MM X 31MM X 9.5MM |
540 |
|
数据手册 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.374" (9.50mm) | - | 13.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

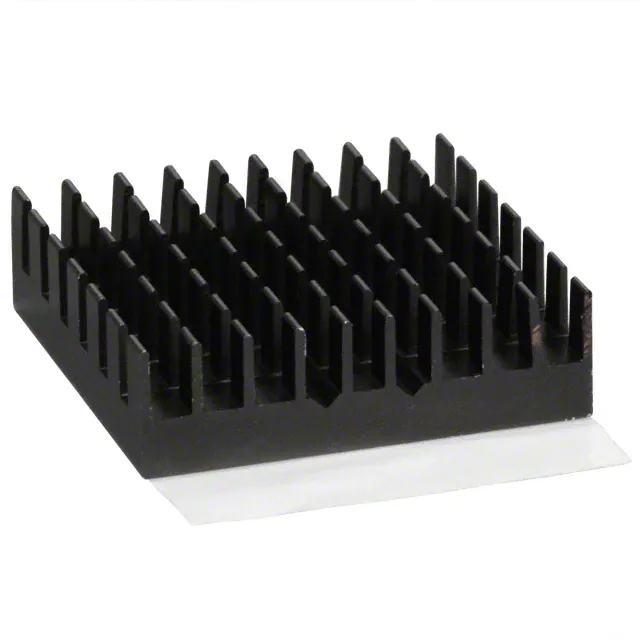

ATS-55325D-C1-R0HEAT SINK 32.5 X 32.5 X 9.5MM |
296 |
|
数据手册 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.280" (32.51mm) | 1.280" (32.51mm) | - | 0.374" (9.50mm) | - | 12.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

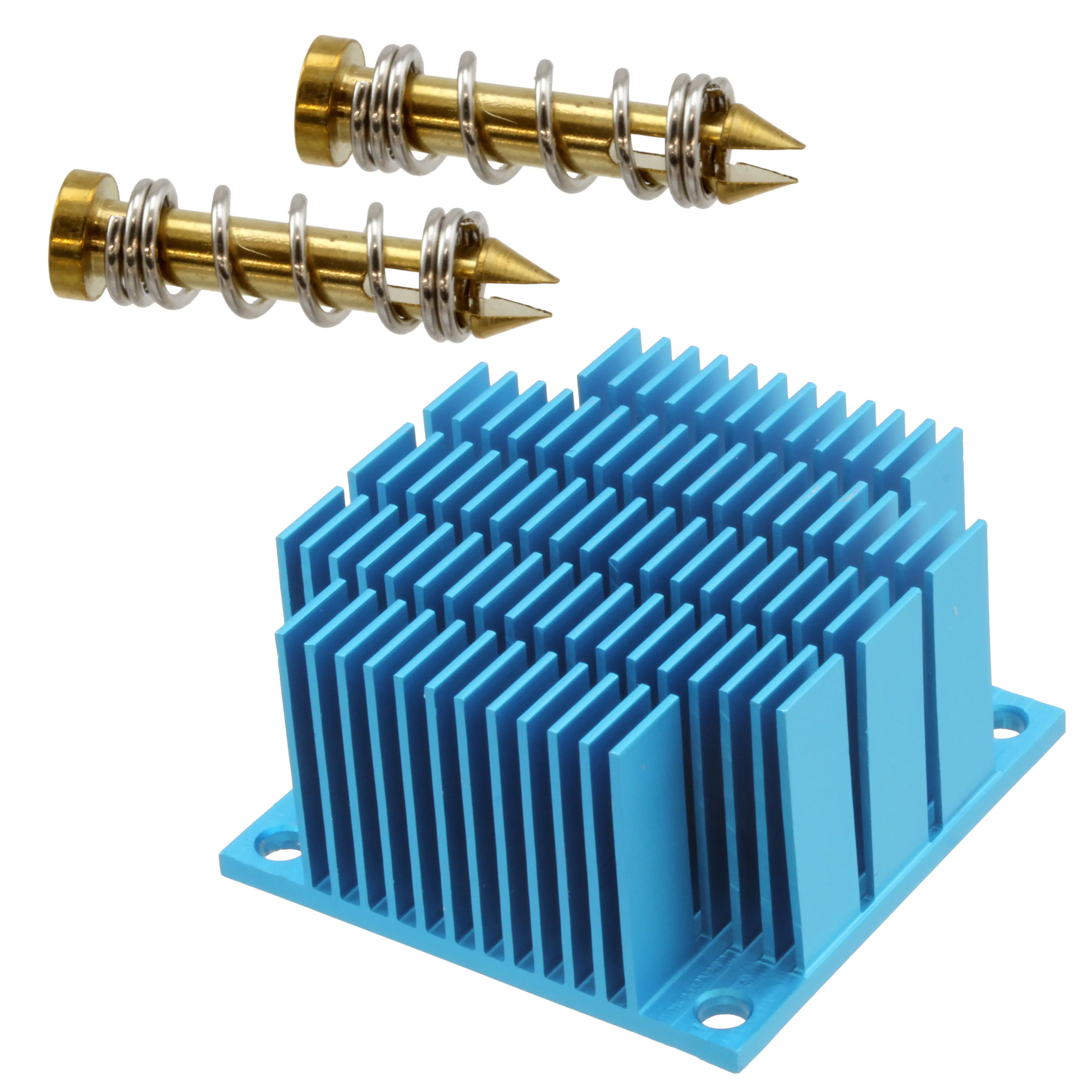

ATS-20H-72-C2-R0HEATSINK 45X45X35MM L-TAB T766 |
111 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.378" (35.00mm) | - | 5.11°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

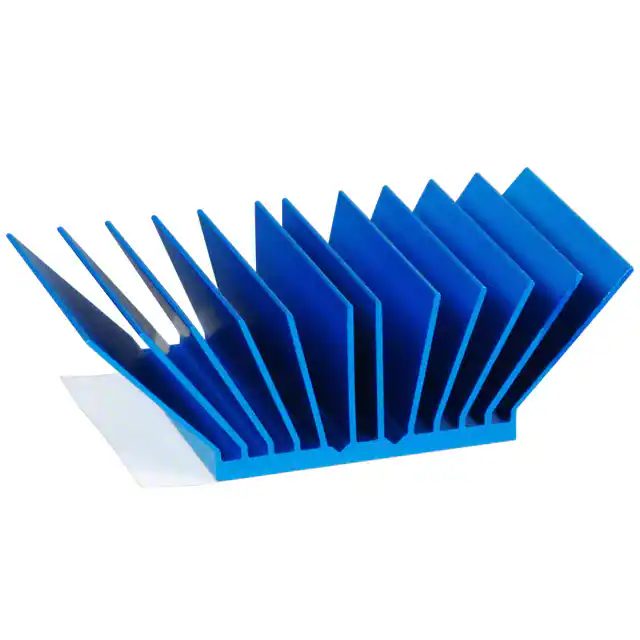

ATS-52330P-C1-R0HEAT SINK 33MM X 33MM X 17.5MM |
218 |
|
数据手册 |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.689" (17.50mm) | - | 2.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-52290B-C1-R0HEAT SINK 29MM X 29MM X 7.5MM |
432 |
|
数据手册 |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.295" (7.50mm) | - | 7.40°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

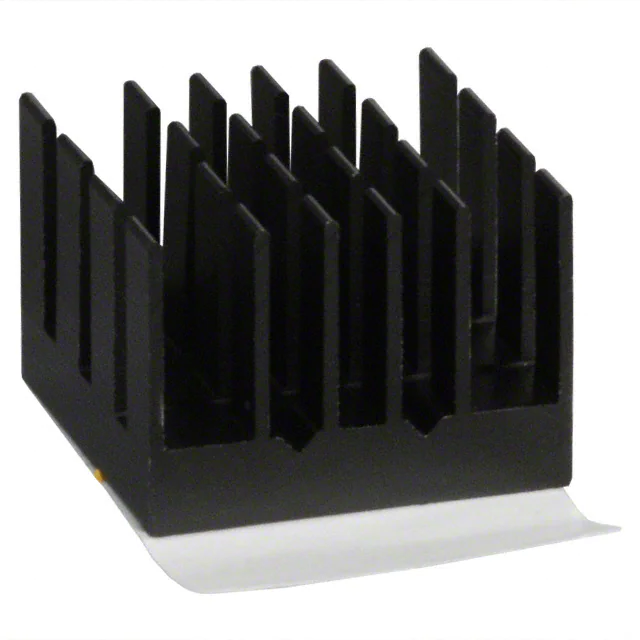

ATS-55210K-C1-R0HEAT SINK 21MM X 21MM X 14.5MM |
167 |
|
数据手册 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.571" (14.50mm) | - | 12.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

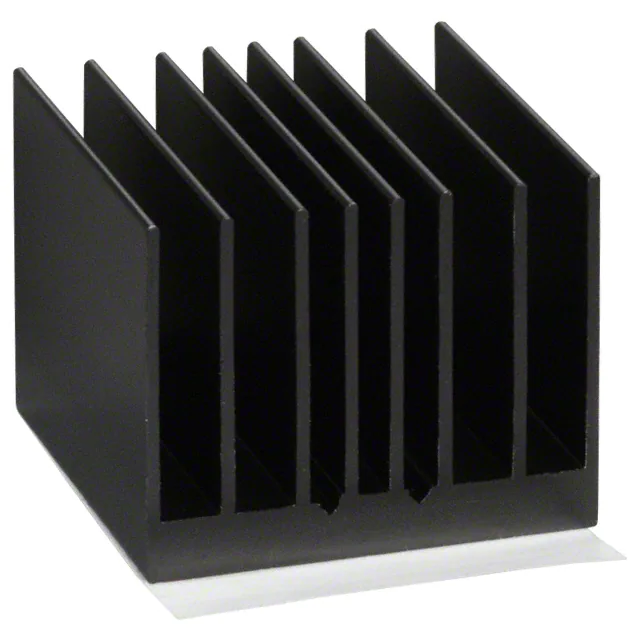

ATS-54310W-C1-R0HEAT SINK 31MM X 31MM X 24.5MM |
809 |
|
数据手册 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.965" (24.50mm) | - | 3.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-61300D-C1-R0MAXIGRIP FANSINK 30X30X9.5MM |
250 |
|
数据手册 |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.374" (9.50mm) | - | 3.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

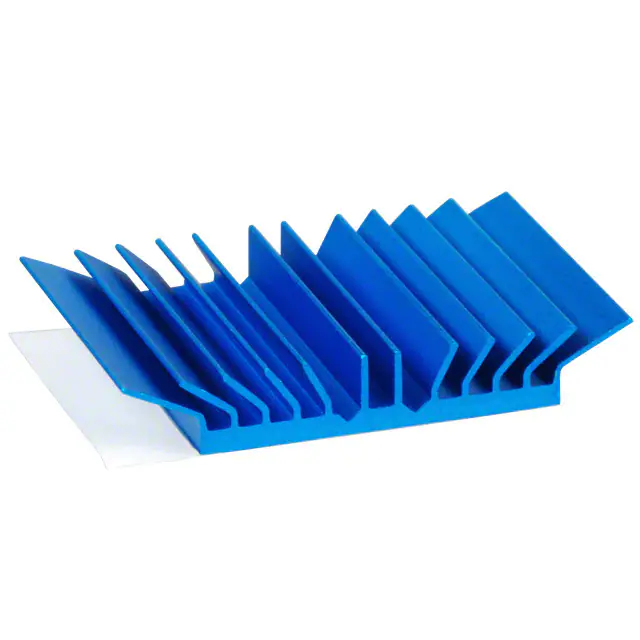

ATS-52330B-C1-R0HEAT SINK 33MM X 33MM X 7.5MM |
187 |
|
数据手册 |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.295" (7.50mm) | - | 5.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

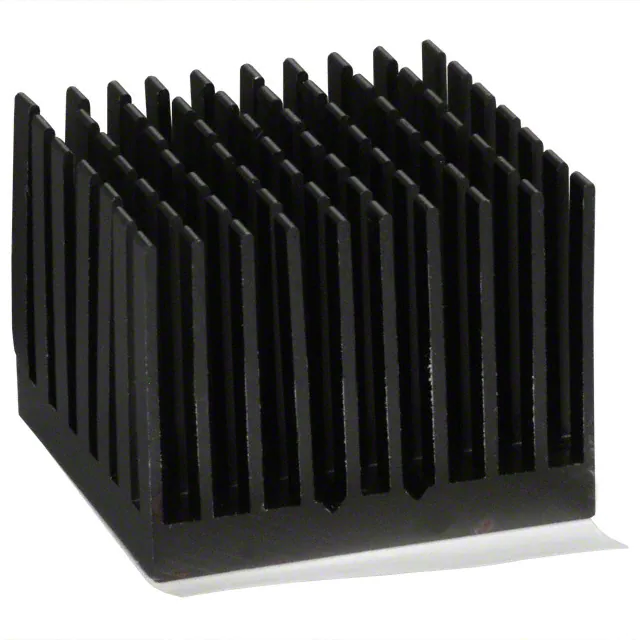

ATS-55325W-C1-R0HEAT SINK 32.5 X 32.5 X 24.5MM |
574 |
|
数据手册 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.280" (32.51mm) | 1.280" (32.51mm) | - | 0.965" (24.50mm) | - | 3.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

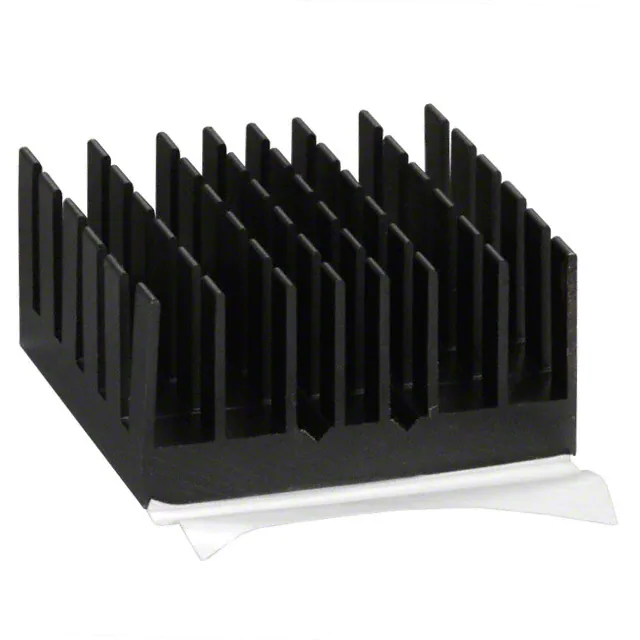

ATS-55300K-C1-R0HEAT SINK 30MM X 30MM X 14.5MM |
254 |
|
数据手册 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.571" (14.50mm) | - | 7.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P2-132-C2-R0HEATSINK 60X60X25MM XCUT T766 |
106 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.66°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

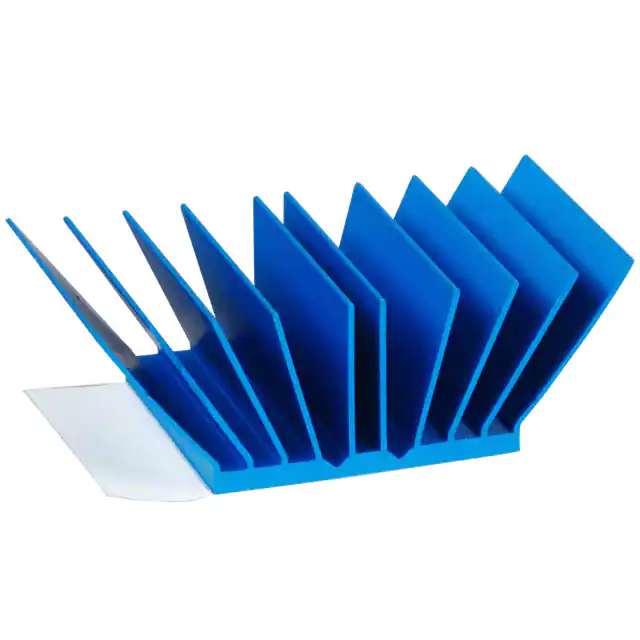

ATS-52300P-C1-R0HEAT SINK 30MM X 30MM X 17.5MM |
595 |
|
数据手册 |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.689" (17.50mm) | - | 3.40°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-21F-25-C2-R0HEATSINK 60X60X25MM XCUT T766 |
120 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 6.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
