散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
658-60ABT3HEATSINK CPU 28MM SQ BLK W/TAPE |
956 |
|
数据手册 |
658 | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.598" (15.20mm) | 2.5W @ 30°C | 2.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|

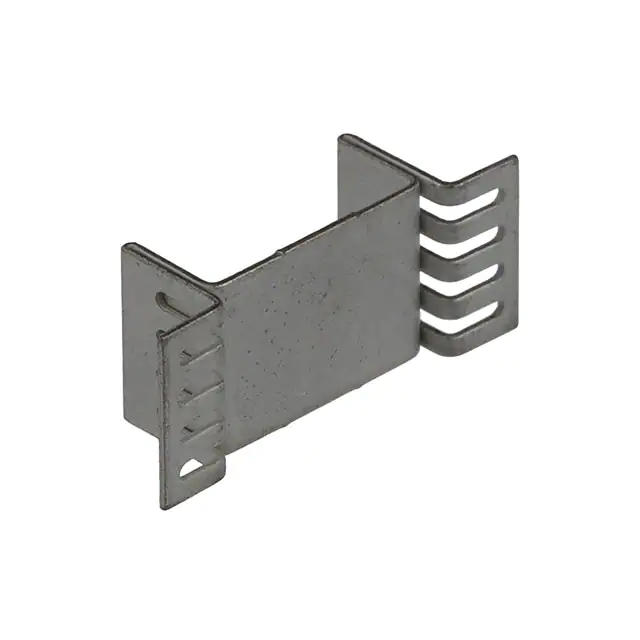

573400D00000GBOARD LEVEL HEAT SINK |
2,248 |
|
数据手册 |
- | Bulk | Active | Top Mount | TO-268 (D³Pak) | SMD Pad | Rectangular, Fins | 0.500" (12.70mm) | 1.220" (30.99mm) | - | 0.401" (10.20mm) | 1.0W @ 20°C | 4.00°C/W @ 600 LFM | 14.00°C/W | - | Tin |
|

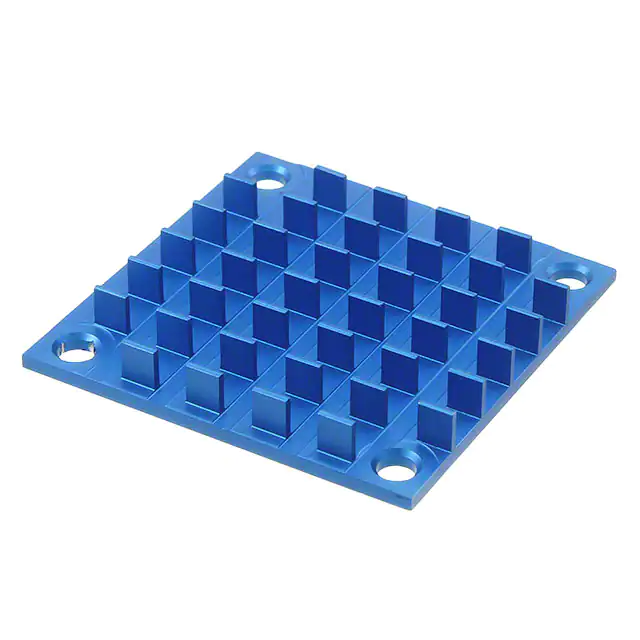

ATS-CPX040040006-193-C1-R0HEATSINK 40X40X6MM XCUT CP |
220 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.236" (6.00mm) | - | 21.05°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
TGH-0280-07ALUMINIUM HEAT SINK 28X28MM |
123 |
|
数据手册 |
TGH | Bulk | Active | Top Mount | - | - | Square, Fins | 1.102" (28.00mm) | 1.102" (28.00mm) | - | 0.591" (15.01mm) | - | - | - | Aluminum | - |
|

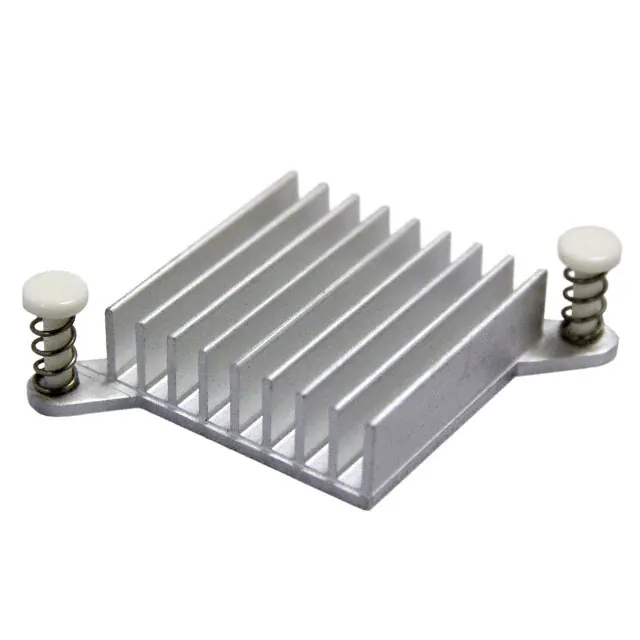

SA000-12016PUSHPIN HEATSINK 31X31X10MM |
1,810 |
|
数据手册 |
- | Bulk | Active | Top Mount | - | Push Pin | Square, Fins | 1.236" (31.40mm) | 1.236" (31.40mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum | - |
|

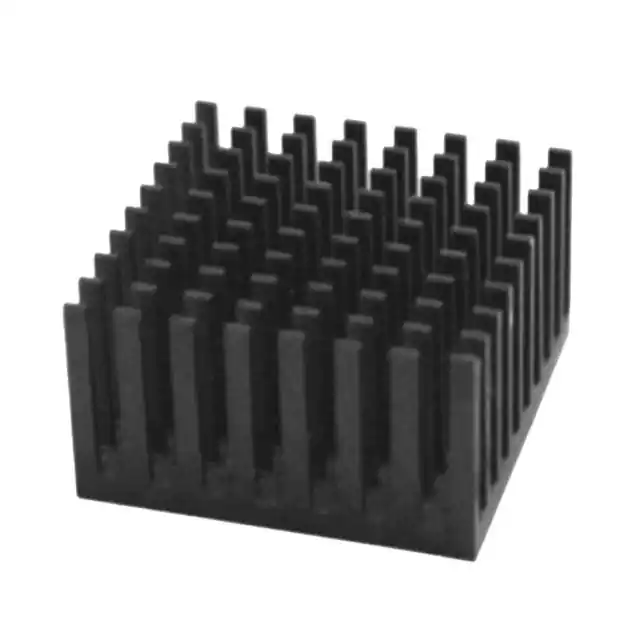

SA000-12009HEATSINK 35X35X20MM W/ADH |
513 |
|
数据手册 |
- | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.790" (20.00mm) | - | - | - | Aluminum | - |
|
LAE66A3CBHEATSINK PWR .75"H BLACK TO-220 |
370 |
|
数据手册 |
- | Box | Active | Board Level | TO-126, TO-220 | Bolt On | Rhombus | 1.310" (33.27mm) | 0.900" (22.86mm) | - | 0.750" (19.05mm) | - | 7.00°C/W @ 200 LFM | 50.00°C/W | Aluminum | Black Anodized |
|
ATS-CPX040040010-113-C1-R0HEATSINK 40X40X10MM XCUT CP |
2,752 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 11.76°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
219-263BTO-263 HEAT SINK ANODZD |
2,124 |
|
数据手册 |
219 | Bulk | Active | Top Mount | TO-263 (D²Pak) | Solderable Feet | Rectangular, Fins | 0.500" (12.70mm) | 1.386" (35.25mm) | - | 0.460" (11.68mm) | 2.0W @ 30°C | 8.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
ATS-CPX025025020-139-C1-R0HEATSINK 25X25X20MM L-TAB CP |
190 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.790" (20.00mm) | - | 9.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

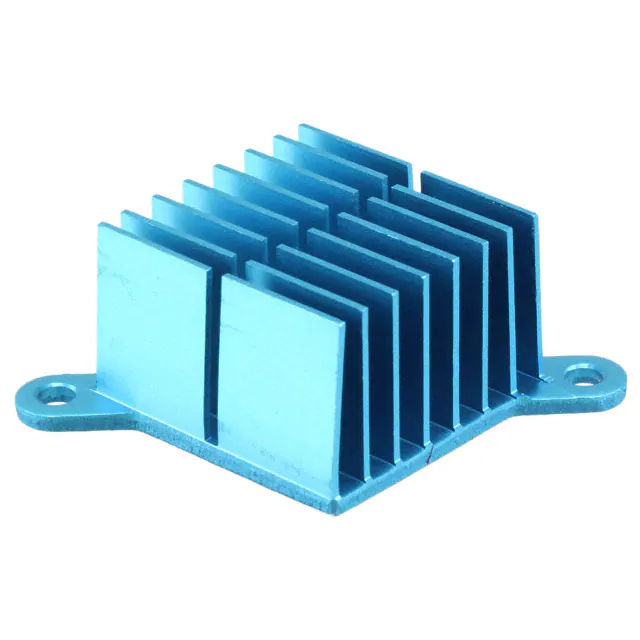

ATS-CPX030030020-171-C1-R0HEATSINK 30X30X20MM R-TAB CP |
4,883 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 7.28°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
V2272E1CPU HEATSINK, CROSS CUT, AL6063, |
362 |
|
数据手册 |
- | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.394" (10.00mm) | - | - | 43.00°C/W | Aluminum Alloy | Black Anodized |
|

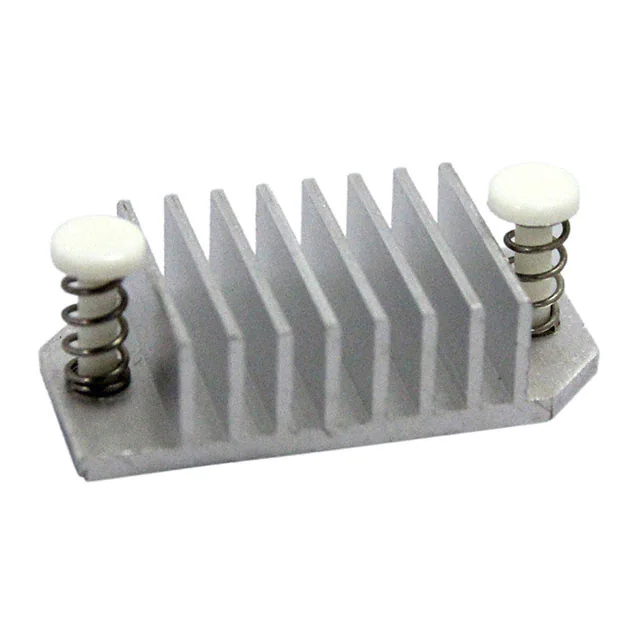

SA000-12024PUSHPIN HEATSINK 19X37X10MM |
304 |
|
数据手册 |
- | Bulk | Active | Top Mount | - | Push Pin | Rectangular, Fins | 0.748" (19.00mm) | 1.457" (37.00mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum | - |
|
ATS-CPX025025025-140-C1-R0HEATSINK 25X25X25MM L-TAB CP |
167 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 7.21°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX060060015-23-C1-R0HEATSINK 60X60X15MM XCUT FP |
4,847 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.590" (15.00mm) | - | 11.99°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

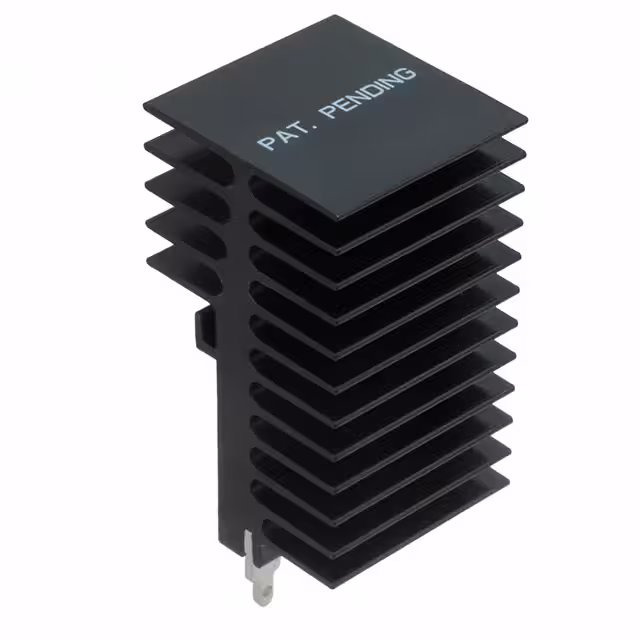

CR101-25AEALUMINUM HEATSINK 25MM BLK ANODI |
129 |
|
数据手册 |
CR | Box | Active | Board Level, Vertical | TO-101 | 3 Clips and PC Pin | Rectangular, Fins | 0.984" (25.00mm) | 1.969" (50.00mm) | - | - | - | - | 7.60°C/W | Aluminum Alloy | Black Anodized |
|
219-268A-TRTO-268 HEAT SINK ANODZD REEL |
894 |
|
数据手册 |
219 | Tape & Reel (TR) | Active | Top Mount | TO-268 (D³Pak) | Solderable Feet | Rectangular, Fins | 0.500" (12.70mm) | 1.580" (40.13mm) | - | 0.460" (11.68mm) | 7.0W @ 35°C | 4.00°C/W @ 700 LFM | - | Aluminum | Black Anodized |
|
TGH-0280-04ALUMINIUM HEAT SINK 28X28MM |
309 |
|
数据手册 |
TGH | Bulk | Active | Top Mount | - | - | Square, Pin Fins | 1.102" (28.00mm) | 1.102" (28.00mm) | - | 0.315" (8.00mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-FPX035035010-55-C1-R0HEATSINK 35X35X10MM L-TAB FP |
221 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | 23.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
BDN14-3CB/A01HEATSINK CPU W/ADHESIVE 1.41"SQ |
3,925 |
|
数据手册 |
BDN | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.410" (35.81mm) | 1.410" (35.81mm) | - | 0.355" (9.02mm) | - | 5.60°C/W @ 400 LFM | 16.20°C/W | Aluminum | Black Anodized |
