散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

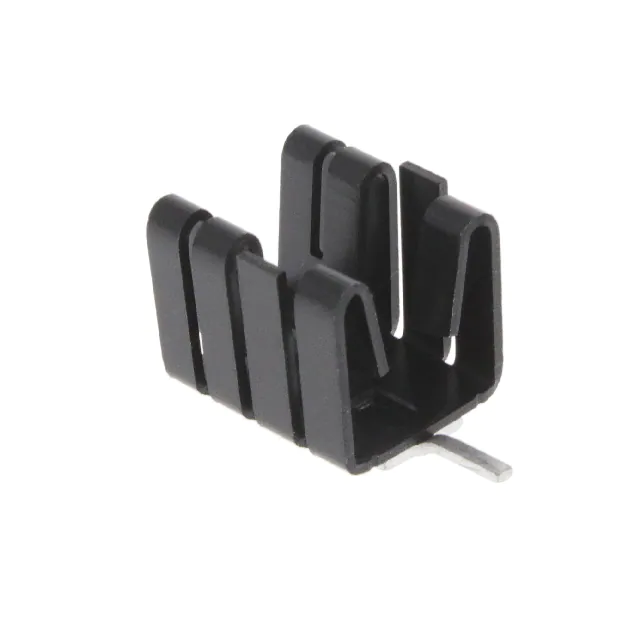

591202B04000GHEATSINK TO-220 CLIP-ON/TAB |
2,830 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220, TO-262 | Clip and PC Pin | Rectangular, Fins | 0.600" (15.24mm) | 0.500" (12.70mm) | - | 0.500" (12.70mm) | 1.0W @ 40°C | 16.00°C/W @ 200 LFM | 26.80°C/W | Aluminum | Black Anodized |
|

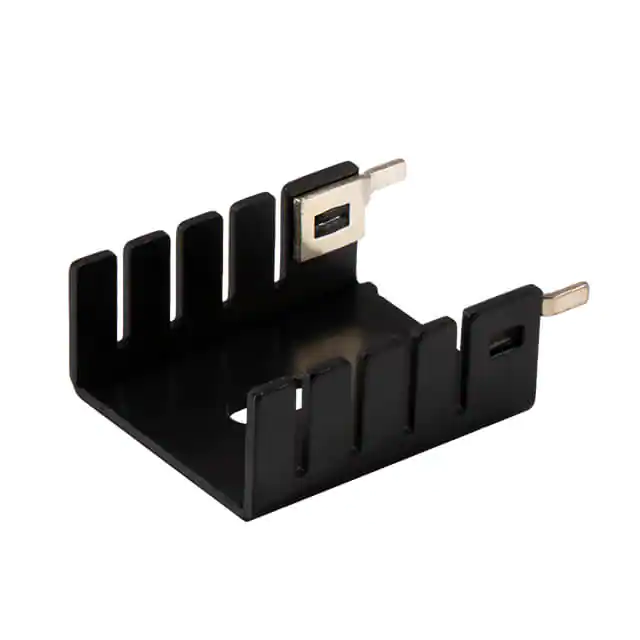

HSS09-B20-P431HEAT SINK, STAMPING, TO-220, 29. |
2,571 |
|
数据手册 |
HSS | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 4.0W @ 75°C | 7.70°C/W @ 200 LFM | 18.82°C/W | Aluminum Alloy | Black Anodized |
|
HSB10-232306HEAT SINK, BGA, 23 X 23 X 6 MM |
1,007 |
|
数据手册 |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.236" (6.00mm) | 3.0W @ 75°C | 9.60°C/W @ 200 LFM | 25.46°C/W | Aluminum Alloy | Black Anodized |
|

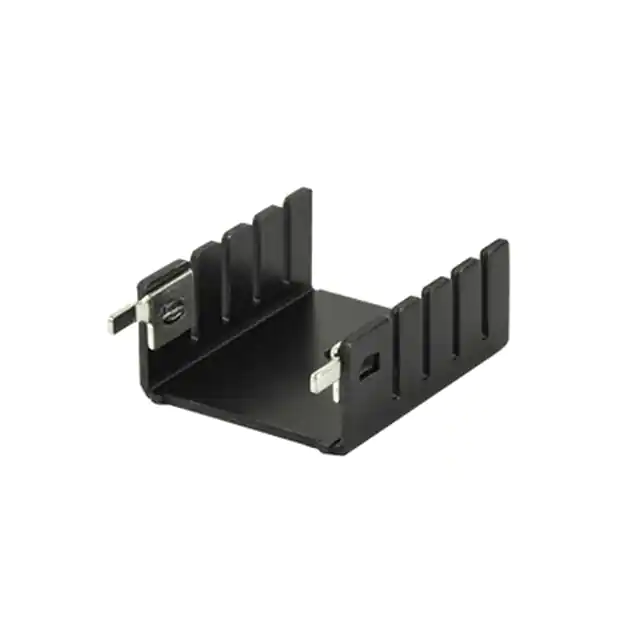

HSS-B20-0503HHEATSINK TO-220 4.6W ALUMINUM |
2,205 |
|
数据手册 |
HSS | Box | Active | Board Level, Vertical | TO-220 | PC Pin | Rectangular, Fins | 0.500" (12.70mm) | 1.000" (25.40mm) | - | 1.180" (29.97mm) | 4.6W @ 75°C | 5.44°C/W @ 200 LFM | 16.30°C/W | Aluminum | Black Anodized |
|

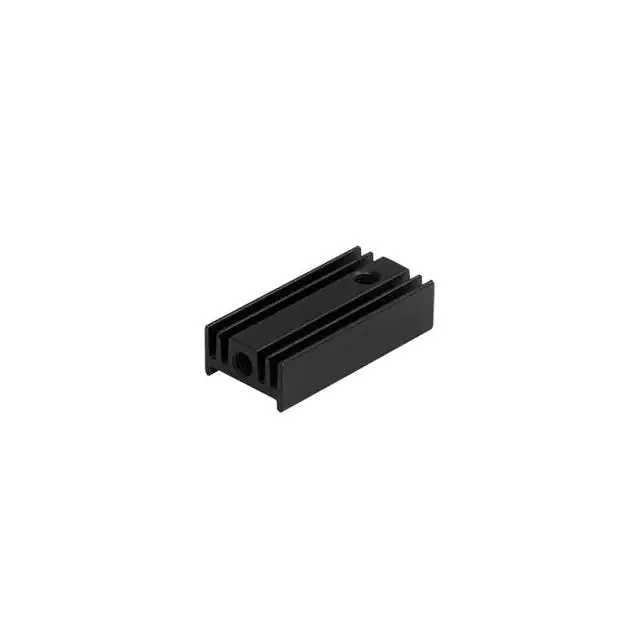

HSE04-251265-1HEAT SINK, EXTRUSION, TO-218/TO- |
1,966 |
|
数据手册 |
HSE | Bag | Active | Top Mount | TO-218, TO-220 | Bolt On | Rectangular, Fins | 0.984" (25.00mm) | 0.472" (12.00mm) | - | 0.256" (6.50mm) | 2.4W @ 75°C | 16.30°C/W @ 200 LFM | 31.22°C/W | Aluminum Alloy | Black Anodized |
|

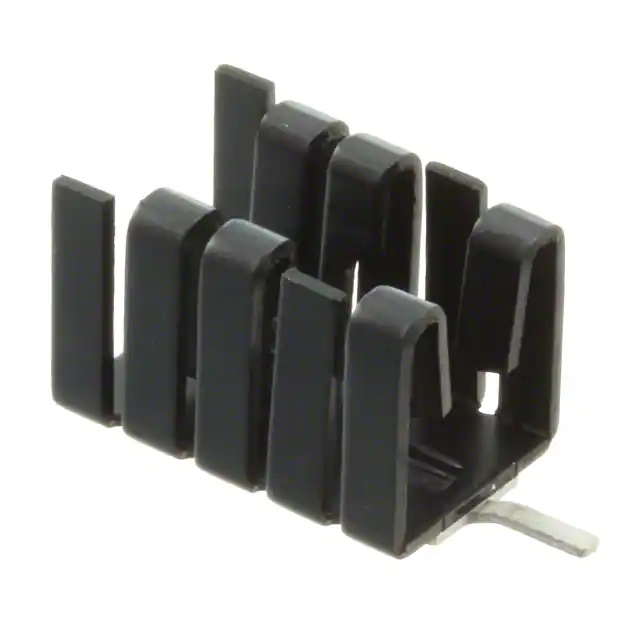

ATS-PCB1066HEATSINK TO-220/TO-262 W/TAB |
1,106 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220, TO-262 | Clip and PC Pin | Rectangular, Fins | 0.748" (19.00mm) | 0.504" (12.80mm) | - | 0.500" (12.70mm) | - | 10.20°C/W @ 200 LFM | 27.30°C/W | Aluminum | Black Anodized |
|

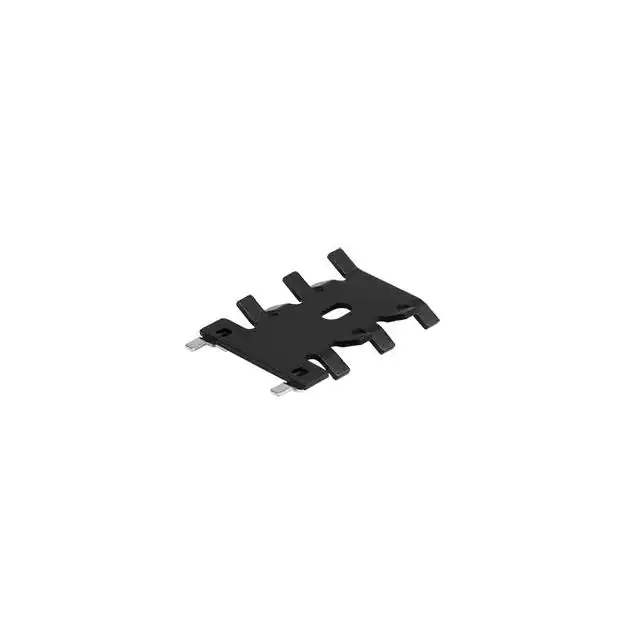

HSS27-B20-P43HEAT SINK, STAMPING, TO-218/TO-2 |
2,055 |
|
数据手册 |
HSS | Bag | Active | Board Level, Vertical | TO-218, TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.193" (30.30mm) | 0.874" (22.20mm) | - | 0.211" (5.35mm) | 3.03W @ 75°C | 13.20°C/W @ 200 LFM | 24.79°C/W | Aluminum Alloy | Black Anodized |
|
V8511WHEATSINK ALUM ANOD |
139 |
|
数据手册 |
- | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and PC Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | - | - | 6.50°C/W | Aluminum | Black Anodized |
|

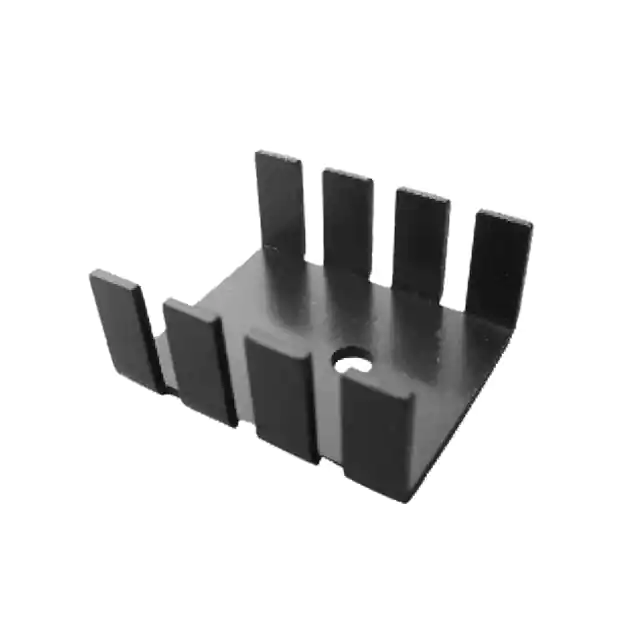

ATS-PCB1019HEATSINK TO-218/TO-202/TO-220 |
1,084 |
|
数据手册 |
- | Bulk | Active | Board Level | TO-220, TO-202 | Bolt On | Rectangular, Fins | 1.181" (30.00mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | - | 10.10°C/W @ 200 LFM | 22.00°C/W | Aluminum | Black Anodized |
|
V7238SNHEATSINK ALUM ANOD |
8,794 |
|
数据手册 |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and Board Mounts | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | - | 16.00°C/W | Aluminum | Tin |
|
HSE-B20380-040H-01HEAT SINK, EXTRUSION, TO-220, 38 |
745 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-220 | PC Pin | Rectangular, Angled Fins | 1.496" (38.00mm) | 1.359" (34.50mm) | - | 0.492" (12.50mm) | 7.3W @ 75°C | 5.77°C/W @ 200 LFM | 10.27°C/W | Aluminum Alloy | Black Anodized |
|
PB1-36CBHEATSINK VERT .50"H BLK TO-220 |
1,563 |
|
数据手册 |
PB1-36 | Box | Active | Board Level, Vertical | TO-126, TO-127, TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 1.0W @ 70°C | - | 20.00°C/W | Aluminum | Black Anodized |
|

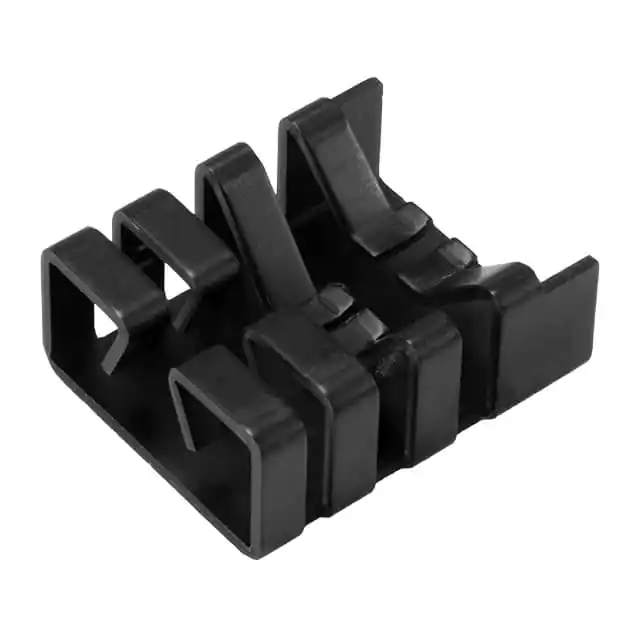

HSS13-B20-NPHEAT SINK, STAMPING, TO-220, 31 |
1,131 |
|
数据手册 |
HSS | Box | Active | Board Level, Vertical | TO-220 | - | Rectangular | 1.220" (31.00mm) | 0.994" (25.25mm) | - | 0.508" (12.90mm) | 4.8W @ 75°C | 7.70°C/W @ 200 LFM | 15.50°C/W | Aluminum Alloy | Black Anodized |
|
V5229XHEATSINK ALUM ANOD W/PIN TO-220 |
1,431 |
|
数据手册 |
- | Tray | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.476" (37.50mm) | 1.260" (32.00mm) | - | 0.551" (14.00mm) | - | - | 10.00°C/W | Aluminum | Black Anodized |
|
HSE-B254-045HHEAT SINK, EXTRUSION, TO-220, 25 |
484 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.000" (25.40mm) | 1.772" (45.00mm) | - | 0.500" (12.70mm) | 6.4W @ 75°C | 3.86°C/W @ 200 LFM | 11.72°C/W | Aluminum Alloy | Black Anodized |
|
V8511XHEATSINK ALUM ANOD |
384 |
|
数据手册 |
- | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and PC Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | - | - | 5.00°C/W | Aluminum | Black Anodized |
|
V2029BHEATSINK CPU XCUT |
1,530 |
|
数据手册 |
- | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.209" (30.70mm) | 1.209" (30.70mm) | - | 0.555" (14.10mm) | - | - | 16.00°C/W | Aluminum Alloy | Black Anodized |
|

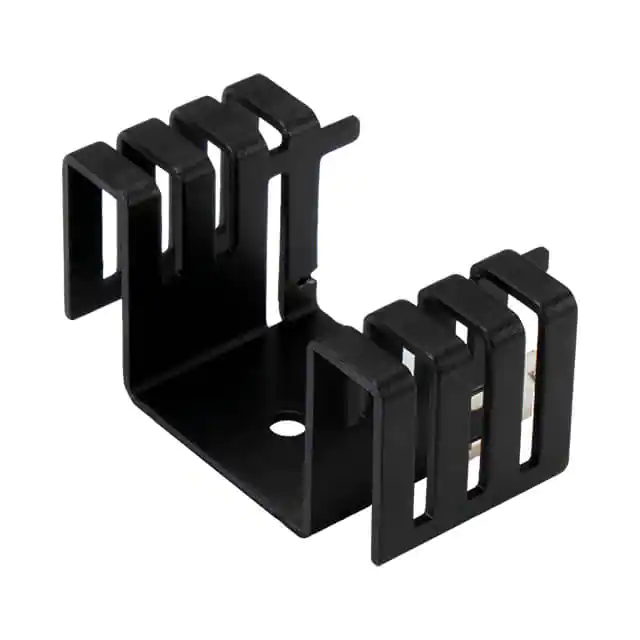

HSS02-B20-P318HEAT SINK, STAMPING, TO-220, 23. |
1,386 |
|
数据手册 |
HSS | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular | 1.900" (48.26mm) | 0.930" (23.62mm) | - | 0.950" (24.13mm) | 6.9W @ 75°C | 4.80°C/W @ 200 LFM | 10.90°C/W | Aluminum Alloy | Black Anodized |
|

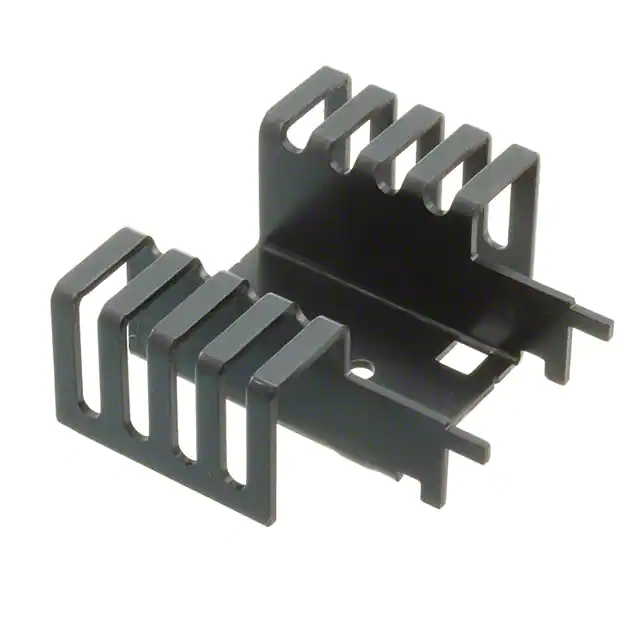

ATS-PCB1057HEATSINK TO-220 W/TAB BLACK |
1,992 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 1.622" (41.20mm) | 2.010" (51.00mm) | - | 0.748" (19.00mm) | - | 2.40°C/W @ 200 LFM | 8.00°C/W | Aluminum | Black Anodized |
|
HSE-B20254-056HHEAT SINK, EXTRUSION, TO-220, 25 |
1,113 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.000" (25.40mm) | 1.378" (35.00mm) | - | 0.500" (12.70mm) | 5.5W @ 75°C | 8.36°C/W @ 200 LFM | 13.64°C/W | Aluminum Alloy | Black Anodized |
