散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSC2T2CBHEATSINK CLIP ON BLACK TO-220 |
962 |
|
数据手册 |
PSC2 | Box | Active | - | TO-220 | Clip | - | - | - | - | 0.810" (20.57mm) | - | - | 41.70°C/W | Aluminum | - |
|
V5229YHEATSINK ALUM ANOD W/PIN TO-220 |
540 |
|
数据手册 |
- | Tray | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.969" (50.00mm) | 1.260" (32.00mm) | - | 0.551" (14.00mm) | - | - | 8.50°C/W | Aluminum | Black Anodized |
|

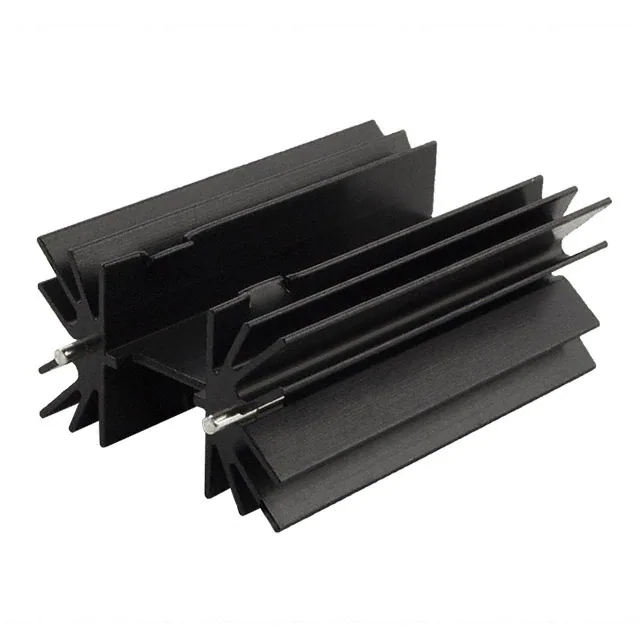

HSE-B18254-035HHEAT SINK, EXTRUSION, TO-218, 25 |
103 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-218 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.000" (25.40mm) | 1.638" (41.60mm) | - | 0.984" (25.00mm) | 8.1W @ 75°C | 3.09°C/W @ 200 LFM | 9.26°C/W | Aluminum Alloy | Black Anodized |
|
V7466YHEATSINK ALUM ANOD |
3,582 |
|
数据手册 |
- | Tray | Active | Board Level, Vertical | SOT-32, TO-220, TOP-3 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 1.772" (45.00mm) | - | 0.500" (12.70mm) | - | - | 6.20°C/W | Aluminum | Black Anodized |
|
V8818NHEATSINK ALUM ANOD |
4,006 |
|
数据手册 |
- | Tray | Active | Board Level | SOT-32, TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.787" (20.00mm) | 0.748" (19.00mm) | - | 0.844" (21.44mm) | - | - | 10.10°C/W | Aluminum | Black Anodized |
|

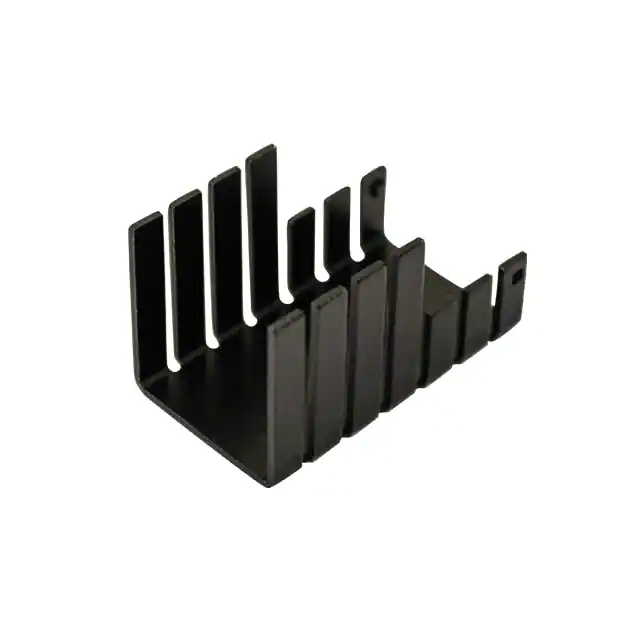

ATS-PCBT1087HEATSINK TO-220 BLACK |
383 |
|
数据手册 |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.673" (42.50mm) | 1.000" (25.40mm) | - | 0.992" (25.20mm) | - | 4.40°C/W @ 200 LFM | 10.00°C/W | Aluminum | Black Anodized |
|

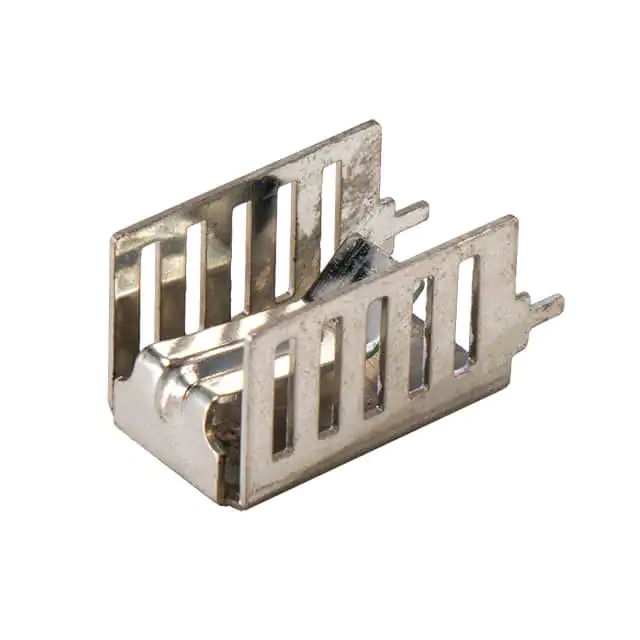

HSS07-C20-P274HEAT SINK, STAMPING, TO-220, 21. |
1,010 |
|
数据手册 |
HSS | Box | Active | Board Level, Vertical | TO-220 | PC Pin | Rectangular | 0.853" (21.66mm) | 0.520" (13.21mm) | - | 0.515" (13.08mm) | 2.5W @ 75°C | 12.60°C/W @ 200 LFM | 29.57°C/W | Copper Alloy | Tin |
|
PA1-1CBHEATSINK .50"H BLACK TO-220 |
1,000 |
|
数据手册 |
PA1 | Box | Active | Board Level | TO-126, TO-127, TO-220 | Bolt On | Rectangular, Fins | 0.710" (18.03mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | - | - | 28.80°C/W | Aluminum | Black Anodized |
|
HSB13-303014HEAT SINK, BGA, 30.7 X 30.7 X 14 |
285 |
|
数据手册 |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 1.209" (30.70mm) | 1.209" (30.70mm) | - | 0.551" (14.00mm) | 6.1W @ 75°C | 4.70°C/W @ 200 LFM | 12.36°C/W | Aluminum Alloy | Black Anodized |
|
579402B00000GHEATSINK TO-220 SNAP-DOWN .75" |
3,984 |
|
数据手册 |
- | Bag | Active | Board Level | TO-220 | Clip | Rectangular, Fins | 0.750" (19.05mm) | 0.980" (24.89mm) | - | 0.440" (11.18mm) | 3.0W @ 50°C | 6.00°C/W @ 500 LFM | 16.80°C/W | Aluminum | Black Anodized |
|
BDN09-3CBHEATSINK CPU .91" SQ |
307 |
|
数据手册 |
BDN | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.910" (23.11mm) | 0.910" (23.11mm) | - | 0.355" (9.02mm) | - | 9.60°C/W @ 400 LFM | 26.90°C/W | Aluminum | Black Anodized |
|
HSE05-171933HEAT SINK, EXTRUSION, TO-218/TO- |
1,647 |
|
数据手册 |
HSE | Box | Active | Board Level | TO-218, TO-220 | PC Pin | Rectangular, Angled Fins | 0.764" (19.40mm) | 0.669" (17.00mm) | - | 1.280" (32.50mm) | 3.98W @ 75°C | 6.90°C/W @ 200 LFM | 18.83°C/W | Aluminum Alloy | Black Anodized |
|
ATS-PCB1021HEATSINK TO-220 DUAL BLACK |
1,873 |
|
数据手册 |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.470" (37.34mm) | 1.750" (44.45mm) | - | 0.380" (9.65mm) | - | 3.00°C/W @ 200 LFM | 9.60°C/W | Aluminum | Black Anodized |
|

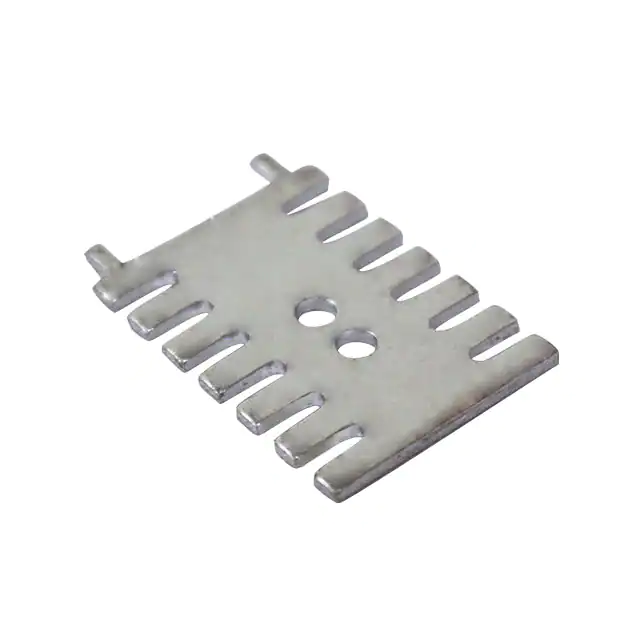

ATS-PCBT1093HEATSINK TO-220 COPPER |
571 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 1.252" (31.80mm) | 0.913" (23.20mm) | - | 0.041" (1.05mm) | - | 14.00°C/W @ 200 LFM | 23.00°C/W | Copper | Tin |
|
V2024BHEATSINK CPU XCUT |
5,906 |
|
数据手册 |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.709" (18.00mm) | - | - | 21.00°C/W | Aluminum Alloy | Black Anodized |
|

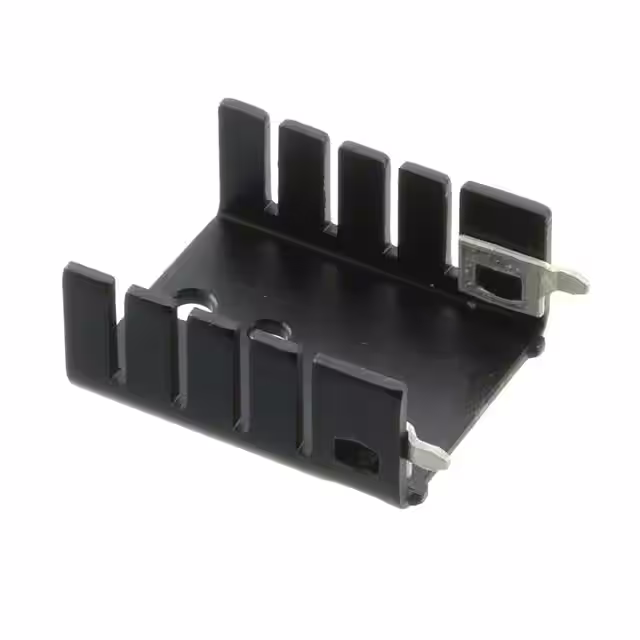

ATS-PCB1035HEATSINK TO-220 W/TAB BLACK |
1,520 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | - | 7.30°C/W @ 200 LFM | 12.50°C/W | Aluminum | Black Anodized |
|

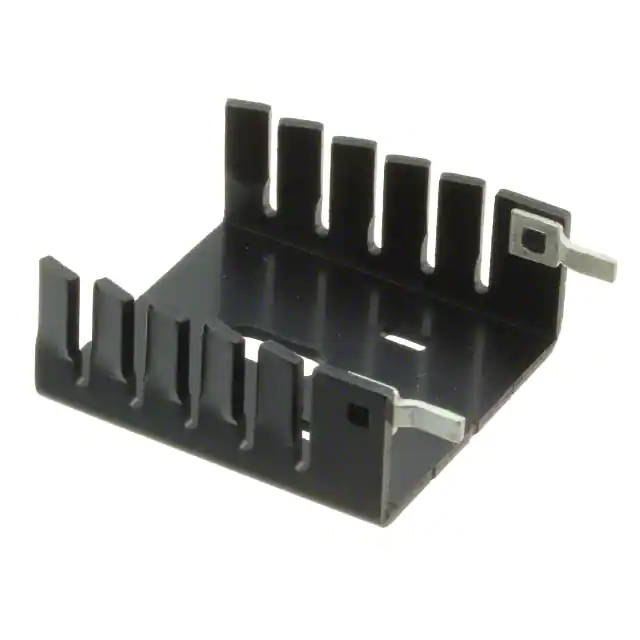

ATS-PCB1034HEATSINK TO-220 W/TAB BLACK |
863 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.189" (30.20mm) | 1.181" (30.00mm) | - | 0.500" (12.70mm) | - | 8.90°C/W @ 200 LFM | 13.00°C/W | Aluminum | Black Anodized |
|
V6560NHEATSINK ALUM ANOD |
119 |
|
数据手册 |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.787" (20.00mm) | 1.142" (29.00mm) | - | 0.472" (12.00mm) | - | - | 15.00°C/W | Aluminum | Black Anodized |
|

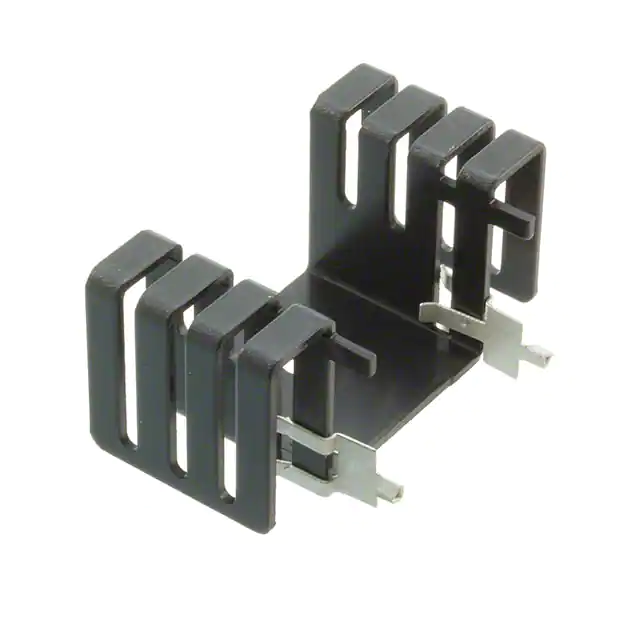

ATS-PCB1050HEATSINK TO-220 W/TAB BLACK |
8,633 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.130" (28.70mm) | 1.900" (48.26mm) | - | 0.950" (24.13mm) | - | 4.90°C/W @ 200 LFM | 6.80°C/W | Aluminum | Black Anodized |
|

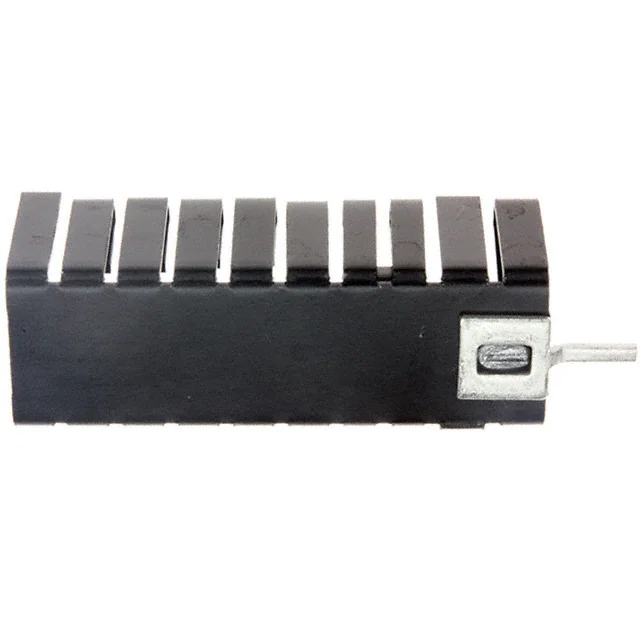

573902B04000GHEATSINK TO-220 CLIP-ON/TAB |
4,976 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 0.500" (12.70mm) | - | 0.500" (12.70mm) | 3.0W @ 60°C | 7.00°C/W @ 200 LFM | 18.80°C/W | Aluminum | Black Anodized |
