散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

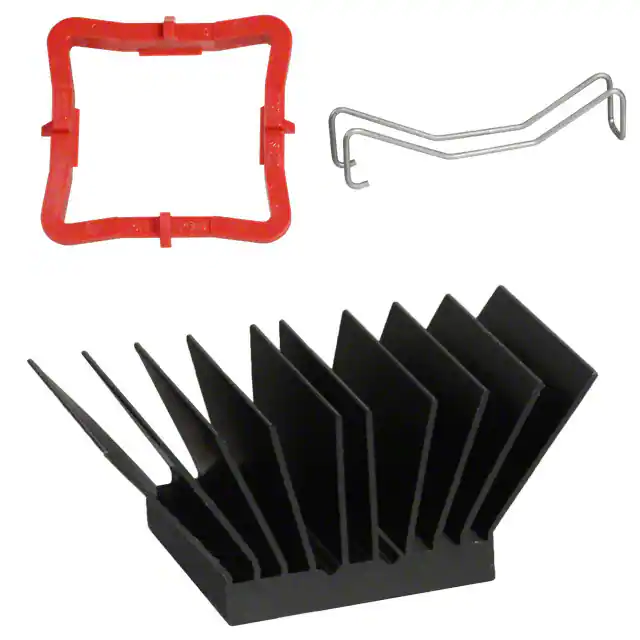

ATS-51270R-C1-R0HEAT SINK 27MM X 27MM X 19.5MM |
519 |
|
数据手册 |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.768" (19.50mm) | - | 3.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

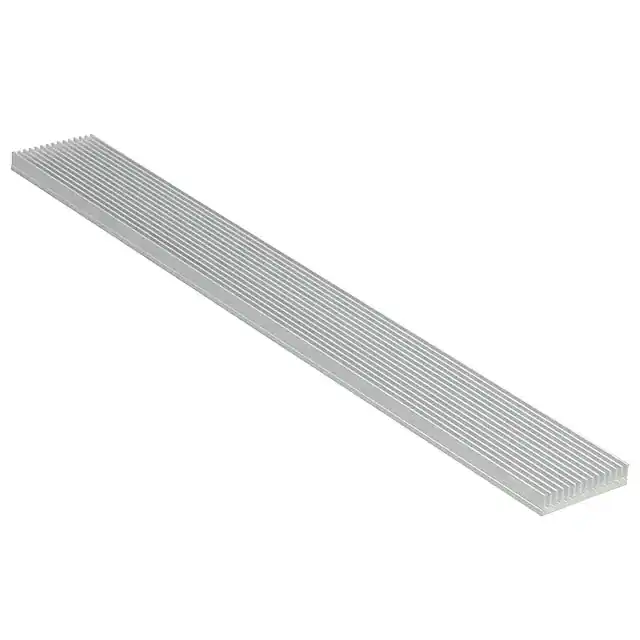

ATS-EXL71-300-R0HEATSINK AL6063 300X37X8MM |
130 |
|
数据手册 |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 1.457" (37.00mm) | - | 0.315" (8.00mm) | - | 9.50°C/W @ 200 LFM | 36.40°C/W | Aluminum | Degreased |
|

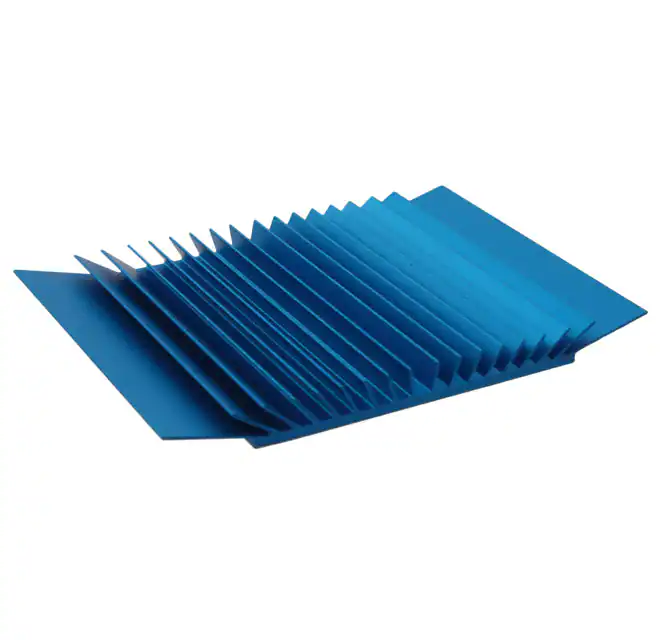

ATS-60003-C1-R0HEAT SINK 61MM X 58.2MM X 7MM |
124 |
|
数据手册 |
blueICE | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Rectangular, Angled Fins | 2.291" (58.20mm) | 2.401" (61.00mm) | - | 0.275" (7.00mm) | - | 2.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

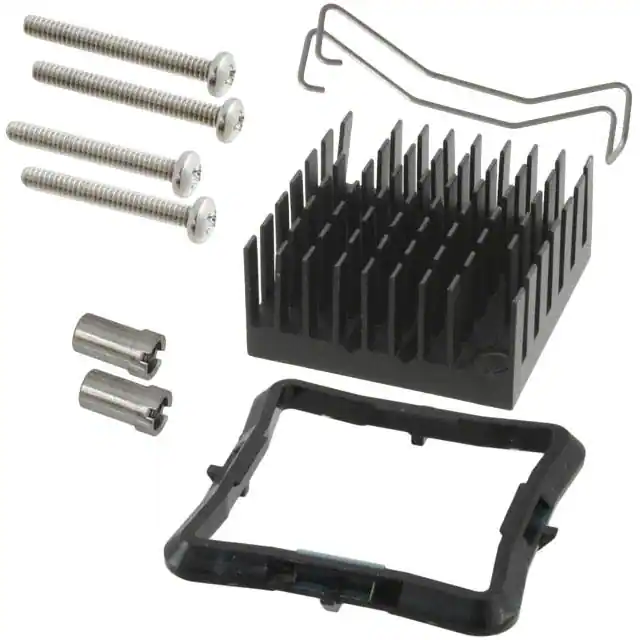

ATS-61310K-C1-R0MAXIGRIP FANSINK 31X31X14.5MM |
324 |
|
数据手册 |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.571" (14.50mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

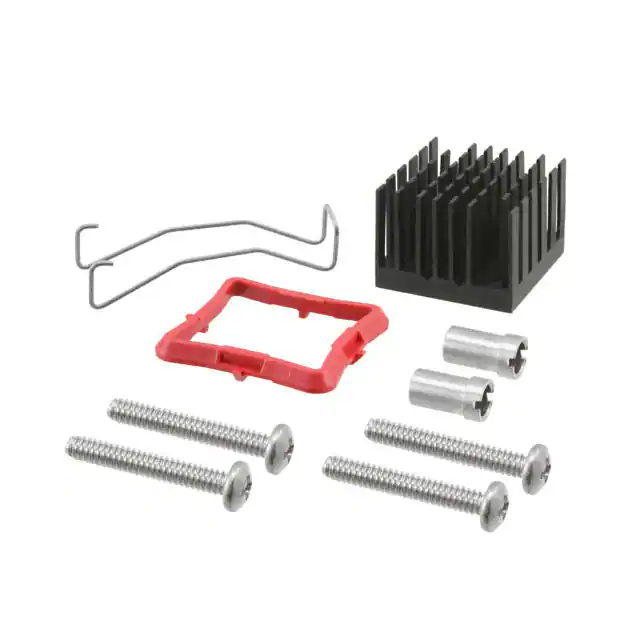

ATS-61270R-C1-R0MAXIGRIP FANSINK 27X27X19.5MM |
111 |
|
数据手册 |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.768" (19.50mm) | - | 2.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

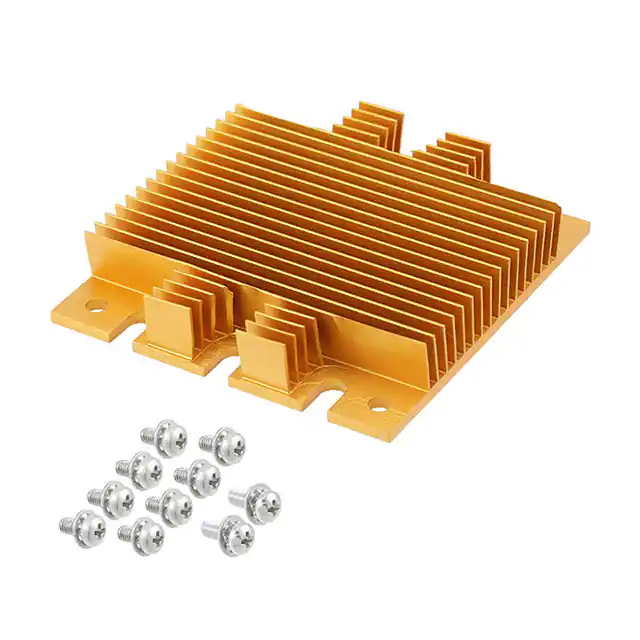

ATS-1144-C1-R01/2 BRICK HEATSINK 58X61X11.4MM |
245 |
|
数据手册 |
maxiFLOW | Bulk | Active | Top Mount | Half Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.323" (59.00mm) | 2.401" (61.00mm) | - | 0.449" (11.40mm) | - | 3.90°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|

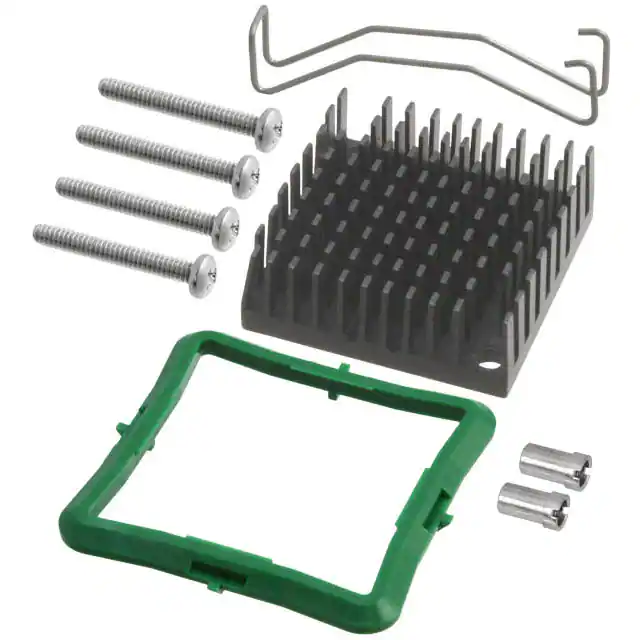

ATS-61400K-C1-R0MAXIGRIP FANSINK 40X40X14.5MM |
191 |
|
数据手册 |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.571" (14.50mm) | - | 1.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

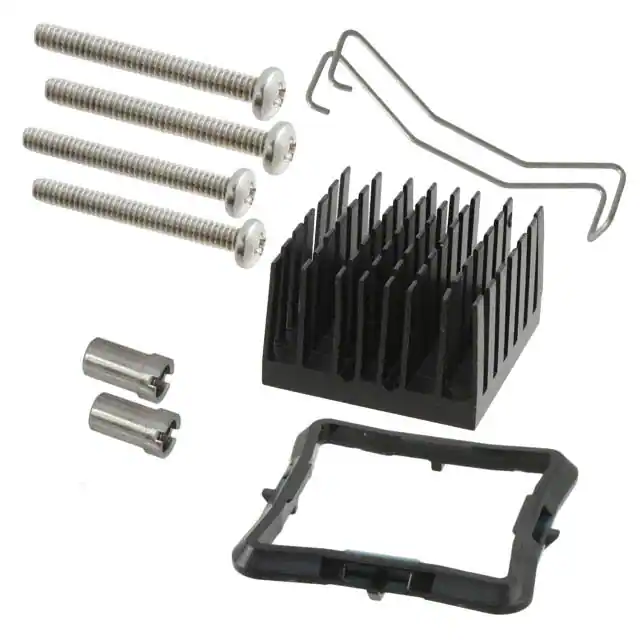

ATS-61310R-C1-R0MAXIGRIP FANSINK 31X31X19.5MM |
1,125 |
|
数据手册 |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.768" (19.50mm) | - | 1.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-1101-C1-R01/4 BRICK HEATSINK 58X37X22.9MM |
244 |
|
数据手册 |
maxiFLOW | Bulk | Active | Top Mount | Quarter Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.283" (58.00mm) | 1.457" (37.00mm) | - | 0.902" (22.90mm) | - | 1.60°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
FHS-A7015B6277X68X48MM, AMD AM2/AM2+/AM3/AM3 |
119 |
|
数据手册 |
FHS | Box | Not For New Designs | Board Level | AMD APU and CPU Coolers | Bolt On and Clip | Rectangular, Fins | 3.031" (77.00mm) | 2.677" (68.00mm) | - | 1.496" (38.00mm) | - | - | 0.43°C/W | Aluminum | - |
|

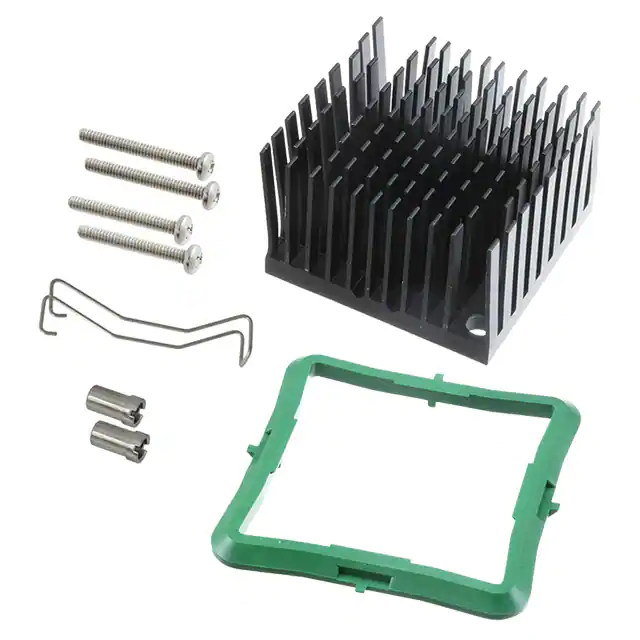

ATS-61400W-C2-R0MAXIGRIP FANSINK 40X40X24.5MM |
151 |
|
数据手册 |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.965" (24.50mm) | - | 1.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

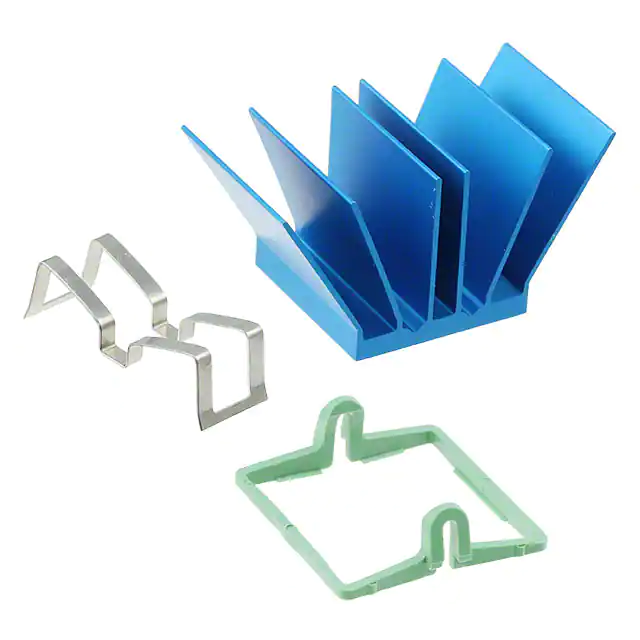

ATS-X50190P-C1-R0SUPERGRIP HEATSINK 19X19X17.5MM |
352 |
|
数据手册 |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.689" (17.50mm) | - | 7.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

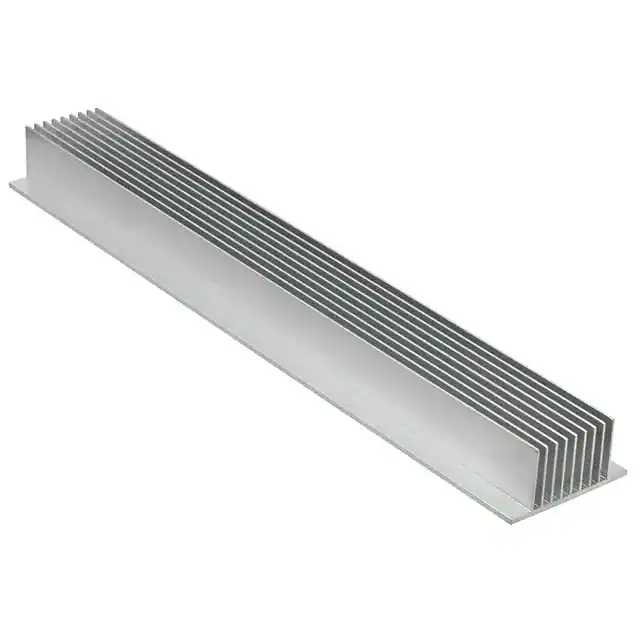

ATS-EXL68-300-R0HEATSINK AL6063 300X35X25MM |
309 |
|
数据手册 |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 2.010" (51.00mm) | - | 0.984" (25.00mm) | - | 3.00°C/W @ 200 LFM | 9.60°C/W | Aluminum | Degreased |
|
FHL43-43-17/T710/TFAN AXIAL 42.3X16.1MM 5VDC 2510 |
586 |
|
数据手册 |
FHL | Tray | Active | Board Level with Fan | - | Clip, Tape | Square, Fins | 1.693" (43.00mm) | 1.693" (43.00mm) | - | 0.670" (17.00mm) | - | - | 3.16°C/W | - | - |
|

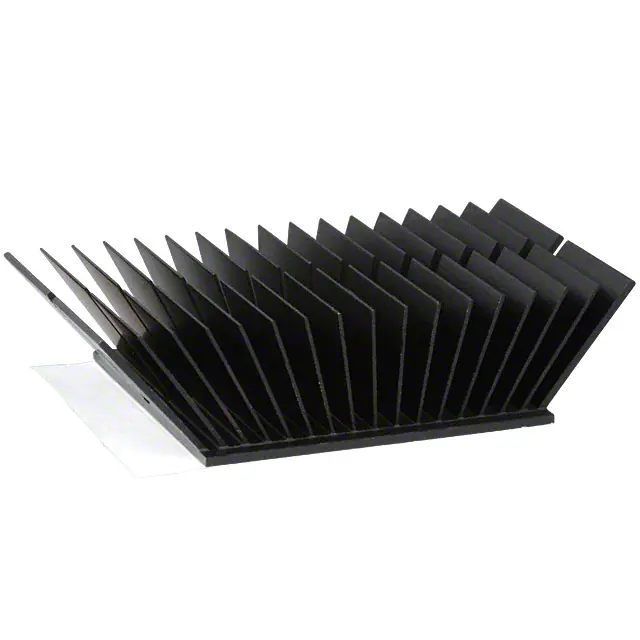

ATS-56008-C1-R0HEAT SINK 50MM X 45MM X 16.5MM |
139 |
|
数据手册 |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Included) | Rectangular, Angled Fins | 1.969" (50.00mm) | 1.772" (45.00mm) | - | 0.630" (16.00mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
FEX40-40-21/T710/M2FAN AXIAL 39.6X19.8MM 5VDC 2510 |
320 |
|
数据手册 |
FEX | Tray | Active | Board Level with Fan | - | Clip, Tape | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.835" (21.20mm) | - | - | 1.79°C/W | - | - |
|
ATS-NVP-3281-C2-R0HEATSINK 63X40X8MM NVIDIA JETSON |
127 |
|
数据手册 |
- | Box | Active | Top Mount | Nvidia Jetson Orin Nano, Orin NX | Bolt On, Thermal Material | Rectangular, Fins | 2.480" (63.00mm) | 1.575" (40.00mm) | - | 0.315" (8.00mm) | - | - | 1.60°C/W | Aluminum | Black Anodized |
|
FHL31-31-17/T710/TFAN AXIAL 30.8X18.1MM 5VDC 2510 |
370 |
|
数据手册 |
FHL | Tray | Active | Board Level with Fan | - | Clip, Tape | Square, Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.670" (17.00mm) | - | - | 3.01°C/W | - | - |
|

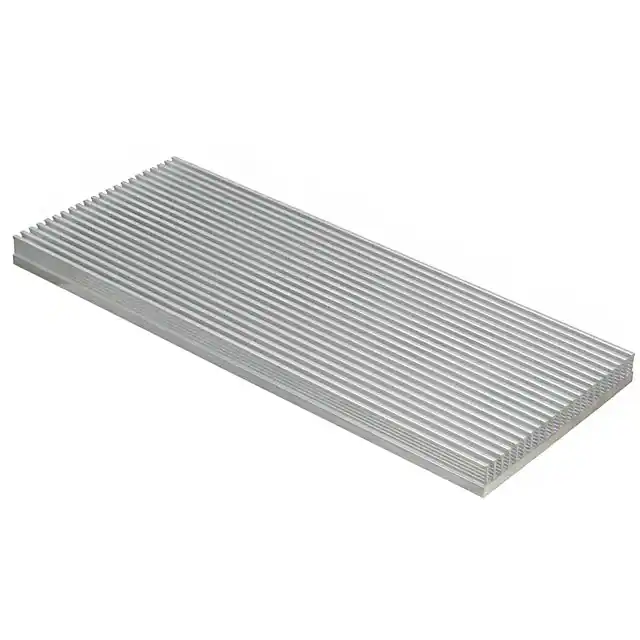

ATS-EXL7-254-R0HEATSINK AL6063 248X101X14MM |
165 |
|
数据手册 |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 9.764" (248.00mm) | 3.976" (101.00mm) | - | 0.551" (14.00mm) | - | 1.80°C/W @ 200 LFM | 14.70°C/W | Aluminum | Degreased |
|

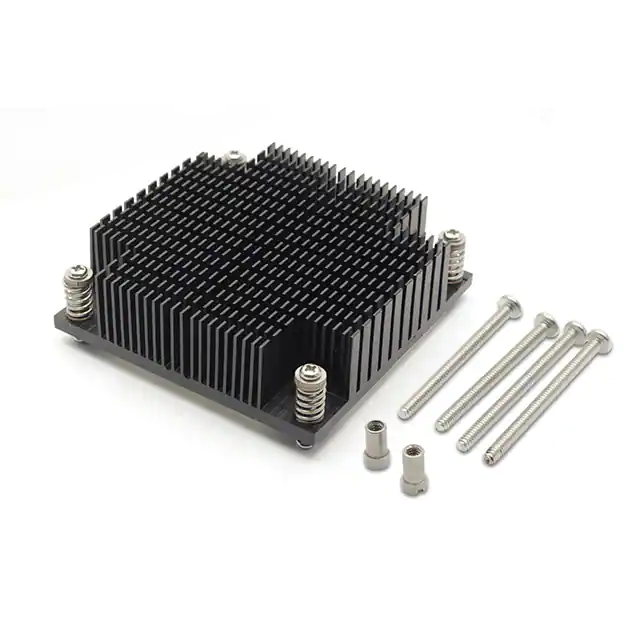

ATS-61800W-C2-R0FANSINK ASSEMBLY W/ MOUNTING HAR |
121 |
|
数据手册 |
fanSINK™ | Bulk | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 3.307" (84.00mm) | 3.307" (84.00mm) | - | 0.965" (24.50mm) | - | - | - | - | - |
