机械式恒温器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电路 | 切换温度 | 复位温度 | 电流额定值 - 交流 | 电流额定值 - 直流 | 容差 | 切换周期 | 端接样式 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F20B09505ACFA06ETHERMOSTAT 95DEG C SPST-NO WIRE |
3,829 |
|
数据手册 |
F20 | Potted - Wire Leads | Bulk | Active | SPST-NO | 203°F (95°C) | 149°F (65°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
|

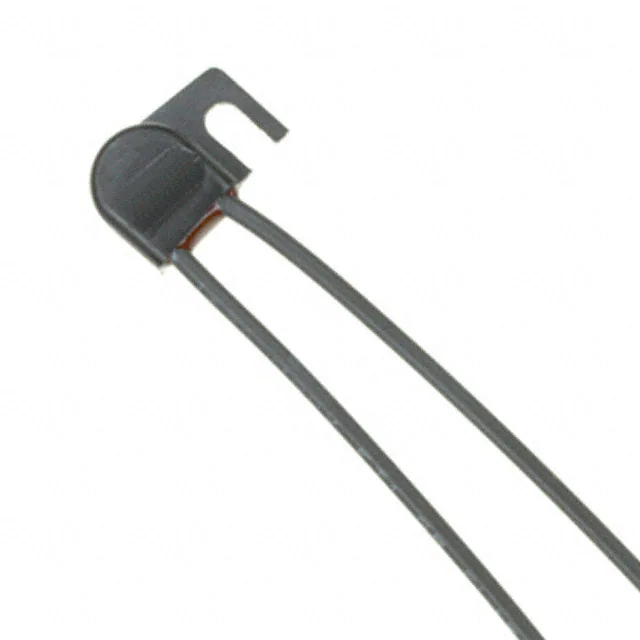

B12B06505AEDA0GETHERMOSTAT 65DEG C SPST-NO RAD |
4,657 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 149°F (65°C) | 95°F (35°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|
OHD5R-35BTHERMOSTAT 35DEG C SPST-NC MOD |
4,272 |
|
数据手册 |
OHD™ Thermal Guard | Module | Bulk | Active | SPST-NC | 95°F (35°C) | - | - | 0.1A (30V) | ±9°F (±5°C) | 100K | PC Pins | Through Hole |
|
T22A08505DFFBG0ETHERMOSTAT 85DEG C SPST-NC WIRE |
3,899 |
|
数据手册 |
T22 | Shrink Cap, Potted - Wire Leads | Bag | Active | SPST-NC | 185°F (85°C) | 131°F (55°C) | 20A (250V) | - | ±9°F (±5°C) | 10K | Wire Leads - 4" (101.6mm) | Through Hole |
|
OHD1-125BTHERMOSTAT 125DEG C SPST-NC AXL |
2,674 |
|
数据手册 |
OHD™ Thermal Guard | Axial | Bulk | Active | SPST-NC | 257°F (125°C) | - | 0.3A (100V) | 0.3A (100V) | ±9°F (±5°C) | 100K | PC Pins | Through Hole |
|
|
OHD1-130BTHERMOSTAT 130DEG C SPST-NC AXL |
2,167 |
|
数据手册 |
OHD™ Thermal Guard | Axial | Bulk | Active | SPST-NC | 266°F (130°C) | - | 0.3A (100V) | 0.3A (100V) | ±9°F (±5°C) | 100K | PC Pins | Through Hole |
|
67F130THERMOSTAT 130DEG C NO TO220-2 |
1,752 |
|
数据手册 |
6700 | TO-220-2 | Tube | Active | SPST-NO | 266°F (130°C) | 194°F (90°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
|
67F070PTHERMOSTAT 70DEG C NO TO220-2 |
2,566 |
|
数据手册 |
6700 | TO-220-2 | Tube | Active | SPST-NO | 158°F (70°C) | 122°F (50°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
|
T22A14505DFFBG0ETHERMOSTAT 145DEG C SPST-NC WIRE |
1,026 |
|
数据手册 |
T22 | Shrink Cap, Potted - Wire Leads | Bag | Active | SPST-NC | 293°F (145°C) | 240°F (115°C) | 20A (250V) | - | ±9°F (±5°C) | 10K | Wire Leads - 4" (101.6mm) | Through Hole |
|
66L090THERMOSTAT 90DEG C SPST-NC 8DIP |
3,258 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NC | 194°F (90°C) | 140°F (60°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66F095THERMOSTAT 95DEG C SPST-NO 8DIP |
1,132 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Bulk | Active | SPST-NO | 203°F (95°C) | 140°F (60°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66F105THERMOSTAT 105DEG C SPST-NO 8DIP |
100 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NO | 221°F (105°C) | 158°F (70°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
66F055THERMOSTAT 55DEG C SPST-NO 8DIP |
4,408 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NO | 131°F (55°C) | 86°F (30°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
66L070-0516THERMOSTAT 70DEG C SPST-NC 4SMD |
1,292 |
|
数据手册 |
6600 | 4-SMD, Gull Wing | Tube | Active | SPST-NC | 158°F (70°C) | 122°F (50°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Surface Mount |
|
|
66L095THERMOSTAT 95DEG C SPST-NC 8DIP |
3,065 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NC | 203°F (95°C) | 140°F (60°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
F20B145051ZA0060THERMOSTAT 145DEG C SPST-NO 2SIP |
1,723 |
|
数据手册 |
F20 | 2-SIP, Potted | Bulk | Active | SPST-NO | 293°F (145°C) | 240°F (115°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads | Through Hole |
|
|
67F125THERMOSTAT 125DEG C NO TO220-2 |
3,813 |
|
数据手册 |
6700 | TO-220-2 | Bulk | Active | SPST-NO | 257°F (125°C) | 185°F (85°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
|
66L110THERMOSTAT 110DEG C SPST-NC 8DIP |
1,575 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Bulk | Active | SPST-NC | 230°F (110°C) | 176°F (80°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
M-TRS5-110BTHERMOSTAT 110DEG C SPST-NC AXL |
100 |
|
数据手册 |
TRS™ | Axial | Tray | Last Time Buy | SPST-NC | 230°F (110°C) | - | 0.55A (140V) | 0.55A (200V) | ±4.5°F (±2.5°C) | 100K | Wire Leads | Through Hole |
|
|
M-TRS5-100BTHERMOSTAT 100DEG C SPST-NC AXL |
1,391 |
|
数据手册 |
TRS™ | Axial | Tray | Last Time Buy | SPST-NC | 212°F (100°C) | - | 0.55A (140V) | 0.55A (200V) | ±4.5°F (±2.5°C) | 100K | Wire Leads | Through Hole |
