机械式恒温器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电路 | 切换温度 | 复位温度 | 电流额定值 - 交流 | 电流额定值 - 直流 | 容差 | 切换周期 | 端接样式 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
66F120THERMOSTAT 120DEG C SPST-NO 8DIP |
1,074 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NO | 248°F (120°C) | 194°F (90°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66F085THERMOSTAT 85DEG C SPST-NO 8DIP |
584 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NO | 185°F (85°C) | 131°F (55°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66F040THERMOSTAT 40DEG C SPST-NO 8DIP |
486 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NO | 105°F (40°C) | 68°F (20°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66F090THERMOSTAT 90DEG C SPST-NO 8DIP |
175 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NO | 194°F (90°C) | 140°F (60°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66F080THERMOSTAT 80DEG C SPST-NO 8DIP |
101 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NO | 176°F (80°C) | 131°F (55°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L045THERMOSTAT 45DEG C SPST-NC 8DIP |
1,820 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NC | 113°F (45°C) | 68°F (20°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
OHD1-125MTHERMOSTAT 125DEG C SPST-NO AXL |
115 |
|
数据手册 |
OHD™ Thermal Guard | Axial | Bulk | Active | SPST-NO | 257°F (125°C) | - | 0.3A (100V) | 0.3A (100V) | ±9°F (±5°C) | 100K | PC Pins | Through Hole |
|
67F075THERMOSTAT 75DEG C NO TO220-2 |
146 |
|
数据手册 |
6700 | TO-220-2 | Tube | Active | SPST-NO | 167°F (75°C) | 122°F (50°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
|
67F110PTHERMOSTAT 110DEG C NO TO220-2 |
1,124 |
|
数据手册 |
6700 | TO-220-2 | Bulk | Active | SPST-NO | 230°F (110°C) | 176°F (80°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
|
67L095THERMOSTAT 95DEG C NC TO220-2 |
473 |
|
数据手册 |
6700 | TO-220-2 | Tube | Active | SPST-NC | 203°F (95°C) | 140°F (60°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
|
67L105THERMOSTAT 105DEG C NC TO220-2 |
428 |
|
数据手册 |
6700 | TO-220-2 | Tube | Active | SPST-NC | 221°F (105°C) | 158°F (70°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
|
67F080PTHERMOSTAT 80DEG C NO TO220-2 |
452 |
|
数据手册 |
6700 | TO-220-2 | Tube | Active | SPST-NO | 176°F (80°C) | 131°F (55°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
3450 03340007CERAMIC MANUAL RESET THERMOSTAT |
920 |
|
数据手册 |
- | - | Bulk | Active | - | - | - | 8A (120V) | - | - | 100K | - | - |
|
|
67L075PTHERMOSTAT 75DEG C NC TO220-2 |
500 |
|
数据手册 |
6700 | TO-220-2 | Tube | Active | SPST-NC | 167°F (75°C) | 122°F (50°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
|
67L105PTHERMOSTAT 105DEG C NC TO220-2 |
495 |
|
数据手册 |
6700 | TO-220-2 | Tube | Active | SPST-NC | 221°F (105°C) | 158°F (70°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
|
67L050PTHERMOSTAT 50DEG C NC TO220-2 |
455 |
|
数据手册 |
6700 | TO-220-2 | Tube | Active | SPST-NC | 122°F (50°C) | 86°F (30°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
66L120-0368THERMOSTAT 120DEG C SPST-NC 4SMD |
11,922 |
|
数据手册 |
6600 | 4-SMD, Gull Wing | Tube | Active | SPST-NC | 248°F (120°C) | 194°F (90°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Surface Mount |
|
B12B08005AEDA0GETHERMOSTAT 80DEG C SPST-NO RAD |
118 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 176°F (80°C) | 122°F (50°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|

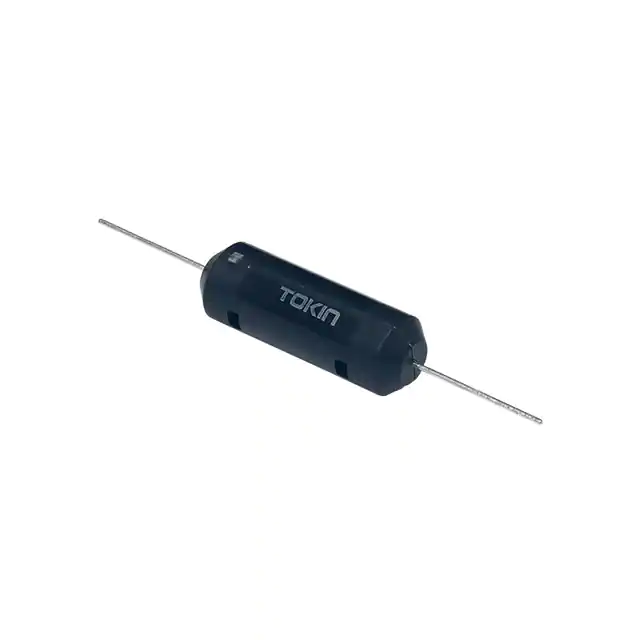

M-TRS5-0BTHERMOSTAT 0DEG C SPST-NC AXIAL |
740 |
|
数据手册 |
TRS™ | Axial | Tray | Last Time Buy | SPST-NC | 32°F (0°C) | - | 0.55A (140V) | 0.55A (200V) | ±4.5°F (±2.5°C) | 100K | Wire Leads | Through Hole |
|
|
67L040-0271THERMOSTAT 40DEG C NC TO220-2 |
3,252 |
|
数据手册 |
6700 | TO-220-2 | Tube | Active | SPST-NC | 105°F (40°C) | 68°F (20°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
